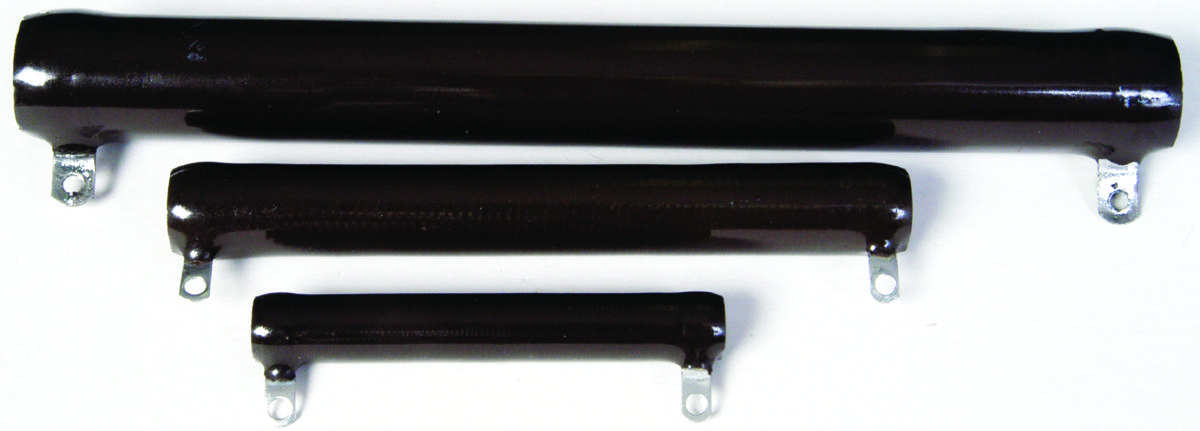

MULTICOMP PRO MC14679 Wirewound Resistor
The MC14640 is a 100Ω adjustable wire-wound resistor featuring a tubular ceramic core and a lead-free vitreous enamel coating. Its power rating is specified based on a 25°C free air environment, and the full wattage rating applies only when the entire resistance element is in the circuit. Adjusting the lug to an intermediate position reduces the power capability proportionally. It includes solder-coated radial lug terminals and is designed as a high-power resistor for various applications. Multicomp Pro products are highly rated and come with a 12-month limited warranty, with the majority of customers recommending them.
MULTICOMP PRO MC14679 Wirewound Resistor Specifications:
- Coating: Lead free vitreous enamel
- Core: Tubular ceramic
- Terminals: Solder-Coated radial lug
- Power Rating: Based on 25°C free air rating
- Overload: 10 times rated wattage for 5sec
- Temperature Coefficient: +400 ppm/°C for resistance 10 to 200
- Resistance: 100Ω
- Wattage: 25W
- Dielectric withstanding voltage: 1,000V CA
- RoHS compliant
- Dimensions: Diameter varies with model, typical length around 0.563 inches (14.3 mm)
Buy the Buy Multicomp Wirewound Resistor Part Number MC14679 Online
Order the innovative wirewound resistor MC14679 online today and enjoy a highly durable, high-power component suitable for industrial, automation, and electronic applications. Featuring a tubular ceramic core and lead-free vitreous enamel coating, this resistor offers excellent thermal stability and voltage withstand capabilities up to 1,000V. Its solder-coated radial lug terminals ensure secure connections, and its wattage rating is optimized for 25°C environments. With a proven performance record, this resistor is a reliable choice for high-power steady-state and overload scenarios, all available for convenient online purchase.
Buy Multicomp MC14679 now and experience reliable high-power resistance suitable for demanding electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC14679?
You can click on the BUY or RFQ button to purchase MC14679 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14679?
You can download the MC14679 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC14679?
MULTICOMP PRO
