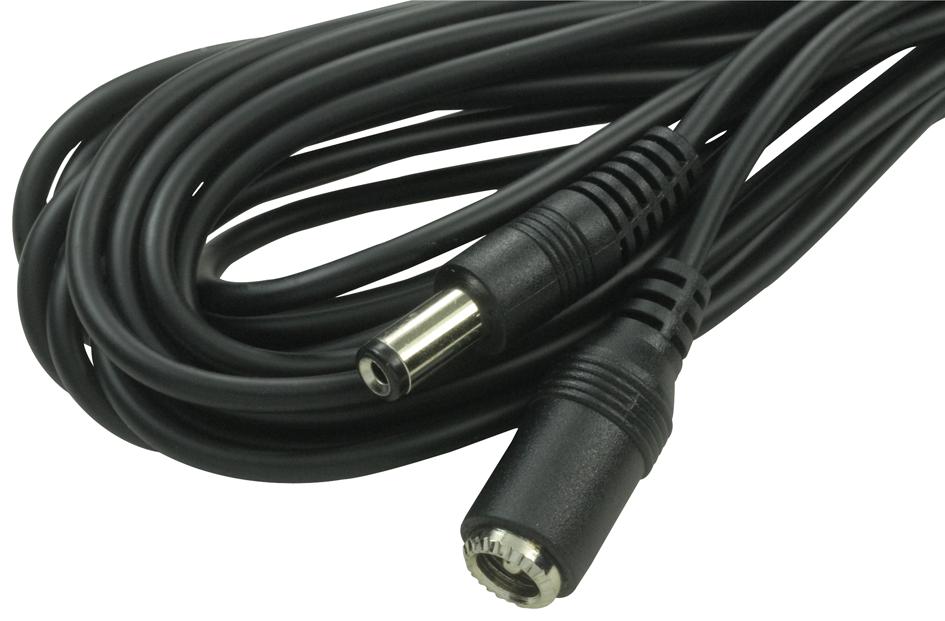

MULTICOMP PRO JR83065M DC Power Extension Cable
The JR8306 series from Multicomp Pro features 2.1mm DC plug to 2.1mm DC jack extension leads, rated to withstand up to 1 kV. Featuring an insulation resistance of 2000 MΩ and conductor resistance of 161.8 Ω/km, these power cables support a maximum current of 1.5A. They are available in lengths of 1.5m, 3m, 5m, and 10m, with black PVC jackets. Suitable for industrial equipment, electronics, and power supply applications, these assemblies ensure reliable connections and durability in demanding environments. Rated for 20°C test temperature and nickel-plated connectors, they provide top performance for power management solutions.
MULTICOMP PRO JR83065M DC Power Extension Cable Specifications:
- Rated Voltage: 1000V
- Insulation Resistance: 2000 MΩ
- Conductor Resistance: 161.8 Ω/km
- Maximum Current: 1.5A
- Test Temperature: 20°C
- Jacket Color: Black
- Connector Type A: 2.1mm DC Power Plug, Nickel Plated
- Connector Type B: 2.1mm DC Power Socket, Nickel Plated
- Cable Lengths: 1.5m, 3m, 5m, 10m
- Cable Material: PVC Molding
- Rated Voltage withstand: 1000V
- Dimensions: Approximately 11.3+0.3 mm (Plug), 11.020.14 mm (Jack)
- Part Number: JR8306-1.5M, JR8306-3M, JR8306-5M, JR8306-10M
Buy the Multicomp Pro JR8306 – Reliable DC Power Extension for Industrial Applications
Purchase the Multicomp Pro DC Power Extension Cable online today for robust and reliable power connections. These extension leads are rated for up to 1000V and 1.5A, equipped with nickel-plated connectors and black PVC jackets for durability and safety. Available in various lengths, including 1.5m, 3m, 5m, and 10m, they are ideal for industrial, electronics, and power supply setups. Ensure optimal performance and secure connections with these trusted, high-quality cable assemblies—order now for fast delivery and peace of mind.
Get Multicomp Pro JR8306 today—designed for reliable power connections, durable insulation, and versatile lengths to suit your industrial needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO JR83065M?
You can click on the BUY or RFQ button to purchase JR83065M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part JR83065M?
You can download the JR83065M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of JR83065M?
MULTICOMP PRO
