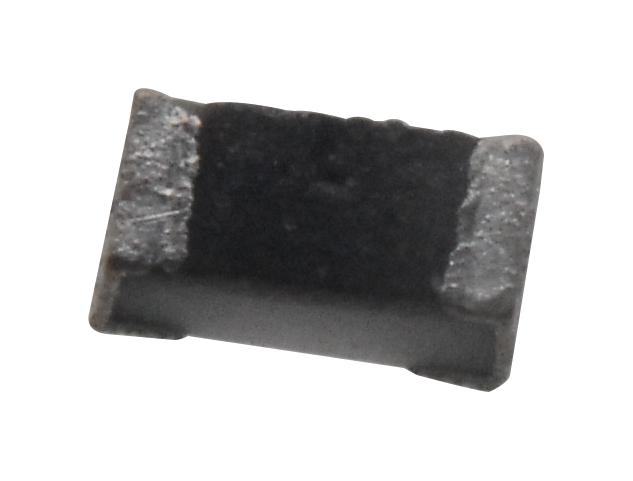

MULTICOMP PRO MC00625W0402130R Thick Film Chip Resistor
The Multicomp Pro MC series thick film chip resistors offer resistance values from 1Ω to 10MΩ, supporting E96 and E24 series. Available in 0402, 0603, 0805, and 1206 sizes, they are compact, lightweight, and support wave and reflow soldering, reducing assembly costs. Rated at 62.5mW, 100mW, and 125mW with tolerance options of ±1%, ±2%, and ±5%. Temperature coefficient varies from ±100 to ±400 ppm/°C. Operating temperature ranges from -55°C to +155°C, suitable for high-reliability applications, with jumper options for all sizes.
MULTICOMP PRO MC00625W0402130R Thick Film Chip Resistor Specifications:
- Resistance Range: 1Ω to 10MΩ
- Sizes: 0402, 0603, 0805, 1206
- Power Rating: 62.5mW, 100mW, 125mW
- Tolerance: ±1%, ±2%, ±5%
- Temperature Coefficient: ±400 ppm/°C (1Ω-10Ω), ±200 ppm/°C (11Ω-100Ω), ±100 ppm/°C (above 100Ω)
- Max Working Voltage: 50V (0402, 0603), 150V (0805), 200V (1206)
- Operating Temp: -55°C to +155°C
- Supports wave and reflow soldering
- Rated highly for reliability and quality
- Warranty: 12 months limited
- Customer rating: 4.6/5, 96% recommend
Buy the Buy multicomp Thick Film Chip Resistor Part Number MC00625W0402130R Online
Enhance your electronic assemblies with multicomp's premium thick film chip resistors, offering resistance from 1 ohm to 10 megaohms. Available in sizes 0402, 0603, 0805, and 1206, these resistors ensure precise and reliable performance in various applications. Featuring tolerances of ±1%, ±2%, and ±5%, and operation across a wide temperature range from -55°C to +155°C, they are suitable for wave and reflow soldering, helping reduce production costs. Trusted for high quality, all resistors come with a 12-month warranty and positive customer reviews.
Get multicomp Thick Film Chip Resistor today—designed for durability in compact sizes and supported by a 12-month warranty.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC00625W0402130R?
You can click on the BUY or RFQ button to purchase MC00625W0402130R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC00625W0402130R?
You can download the MC00625W0402130R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC00625W0402130R?
MULTICOMP PRO
