MULTICOMP-PRO 2211S09G Pin Header

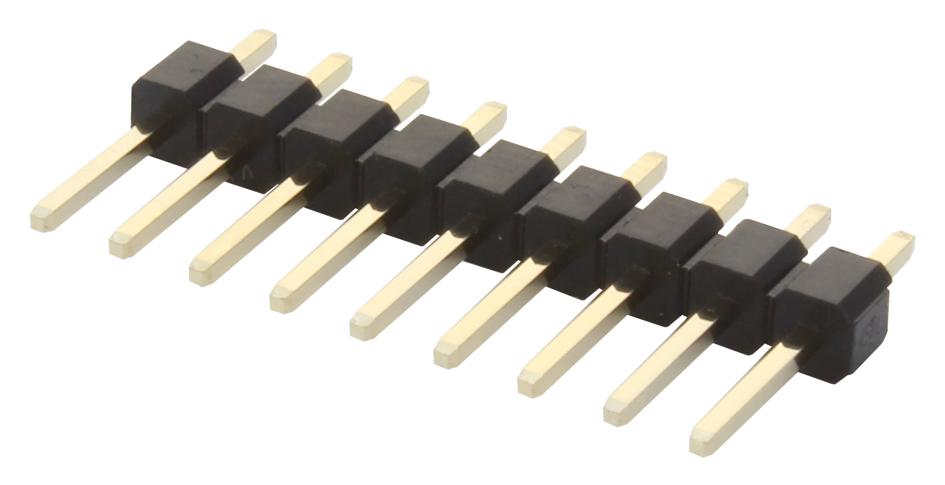

This 2.54mm pin header is a single-row, vertical through-hole connector designed for reliable electrical connections in PCB assemblies. Made with high-quality copper alloy contacts plated with gold for enhanced conductivity and corrosion resistance, it supports a maximum current of 3A and voltage of 250V. The insulator is fabricated from UL94V-0 rated PBT material, offering excellent insulative properties and thermal stability from -40°C to +105°C. It features 9 positions, making it ideal for various electronic and industrial applications requiring secure, compact connections.
MULTICOMP-PRO 2211S09G Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT (UL94V-0)
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Number of Positions: 9
- Connector Type: Single Row, Vertical, Through Hole
- Dimensions: 2.54mm pitch, 9 positions, PCB mounted
Buy the Buy Multicomp Pro 2.54mm Pin Header Part Number 2211S-09G Online
Enhance your electronic assemblies with this high-quality 2.54mm pin header from Multicomp Pro, featuring gold-plated contacts for excellent conductivity. Its 9-position, vertical through-hole design ensures secure, compact connections suitable for various industrial and PCB applications. Constructed with durable PBT insulator rated UL94V-0, it withstands temperatures from -40°C to +105°C and supports up to 3A of current at 250V. Easy to install and compatible with various automation systems, this header guarantees reliable performance and long service life for your projects.
Order your Multicomp Pro Series 2211S-09G 2.54mm Vertical Pin Header today and secure reliable PCB connections for your electronic projects.
