MULTICOMP PRO MC23558 RF Connector

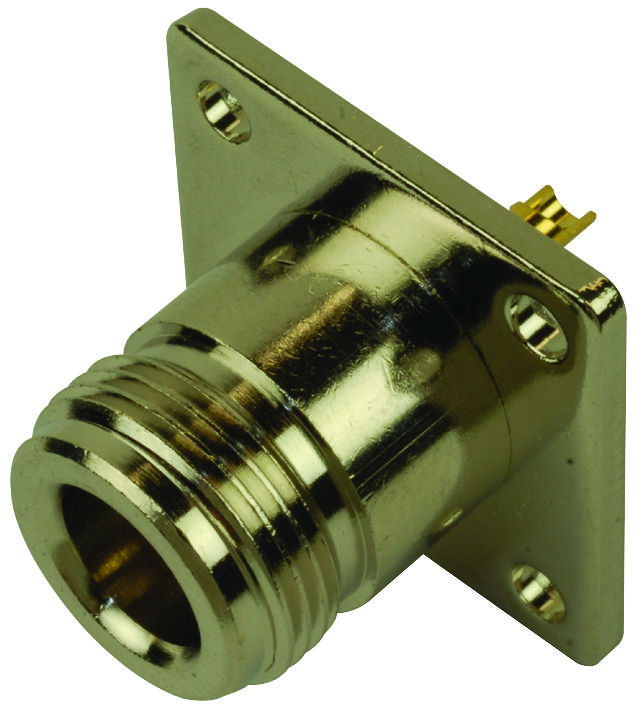

The MC23558 is a high-performance N-type square flange jack receptacle designed for reliable RF connections in industrial, military, and aerospace applications. Crafted with a nickel-plated brass body and gold-plated brass center contact, it ensures excellent conductivity and durability. Supporting a frequency range up to 11 GHz and a maximum working voltage of 1000V, it features PTFE insulation for stability and low loss. This panel-mount connector with solder termination guarantees secure installation in communication, networking, and defense systems, adhering to MIL-STD-348A standards for precision and quality.
MULTICOMP PRO MC23558 RF Connector Specifications:
- Frequency Range: DC-11 GHz
- Impedance: 50 Ω
- Working Voltage: 1000 Volts Max.
- Proof Voltage: 2500 Volts
- Centro Contact Material: Brass with Gold Plating
- Body Material: Nickel-plated Brass
- Insulation Material: PTFE (Per ASTM D1457 and ASTM D1710)
- Interface standard: MIL-STD-348A
- Dimensions: Diameter approximately 21.3 mm ( Max. ), suitable for panel mounting
- Operating Temperature Range: 65°C to +165°C
- RoHS Compliant
Buy the Multicomp Pro MC23558 – Reliable RF Connector for Industrial Applications
Get the Multicomp MC23558 RF connector online today for your high-frequency communication, defense, and aerospace projects. This square flange jack receptacle offers excellent conductivity, with gold-plated brass contacts and a nickel-plated body, supporting up to 11 GHz frequency range and 1000V working voltage. Its durable PTFE insulator and MIL-STD-348A interface make it ideal for demanding industrial and military environments. Purchase now to guarantee reliable, high-quality RF connections with quick, secure panel mounting and solder termination options, ensuring project success and compliance with industry standards.
Order your Multicomp Series MC23558 high-frequency RF jack today and ensure precise, durable connections in your communication and aerospace projects.
