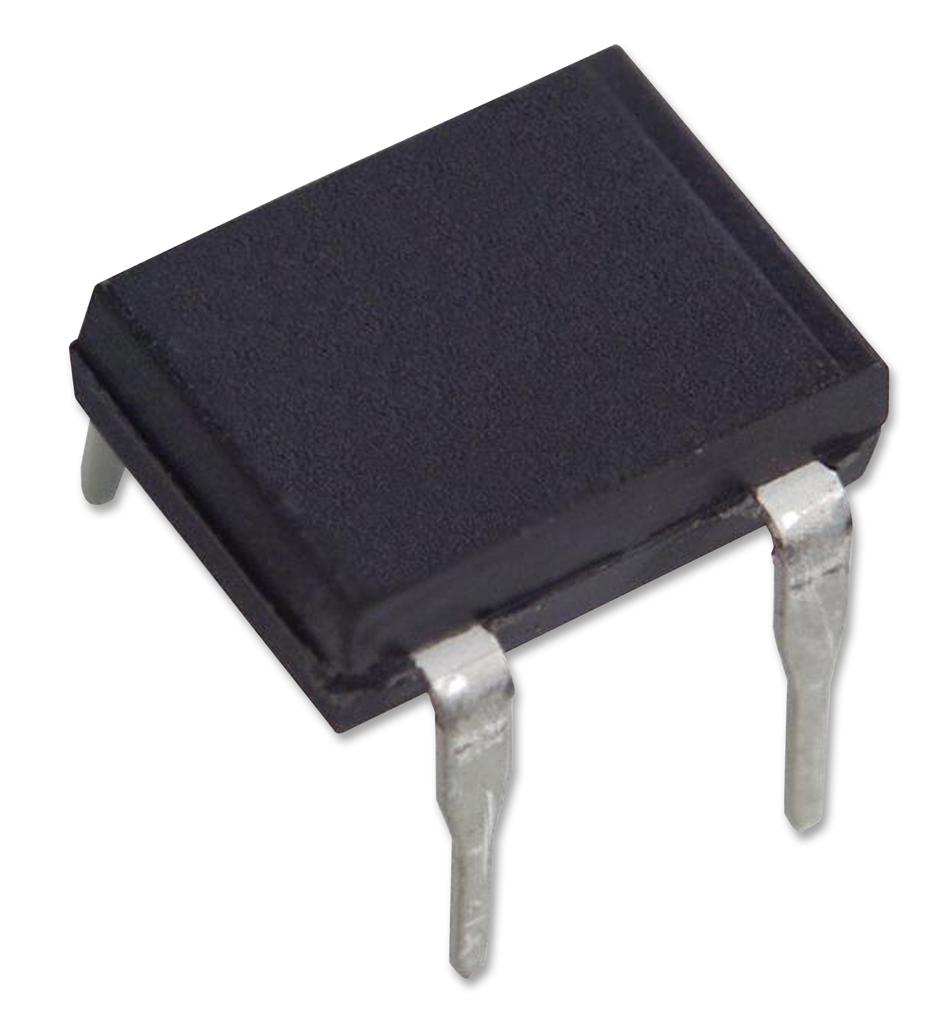

MULTICOMP PRO DF1502 Bridge Rectifier
This glass passivated bridge rectifier is designed for high-reliability power conversions, supporting up to 1000V PRV and 1.5A forward current. Its compact, molded plastic construction ensures low-cost manufacturing while maintaining excellent electrical performance, including low forward voltage drop and high surge current tolerance. Suitable for PCB mounting, with UL 94V-0 flammability classification, it features robust reverse and forward voltage ratings, making it ideal for various industrial and electronic applications requiring efficient rectification and durability. Operating within -55°C to +150°C, it guarantees dependable operation in demanding environments.
MULTICOMP PRO DF1502 Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 200V (DF1502), 1000V (DF1510)
- Maximum RMS Voltage: 140V (DF1502), 700V (DF1510)
- Maximum DC Blocking Voltage: 200V (DF1502), 1000V (DF1510)
- Maximum Forward Surge Current: 50A for 8.3ms single half sine wave
- Maximum Instantaneous Forward Voltage at 1.5A: 1.1V
- Maximum Reverse Current at 25°C: 10pA
- Peak Forward Surge Current: 50A
- Typical Junction Capacitance: 25pF
- Thermal Resistance (junction to ambient): 40°C/W
- Operating Temperature Range: -55°C to +150°C
- Material: Glass passivated, molded plastic
- Mounting Position: Any
- Weight: 0.02 ounces, 0.38 grams
- Dimensions: Approximately 8.5mm x 7.9mm x 0.8mm
- UL Flammability Classification: 94V-0
Buy the Buy Multicomp Bridge Rectifier Part Number DF1502 Online
Purchase the Multicomp Bridge Rectifier DF1502 online and benefit from its durable, high-current, high-voltage performance. Designed for efficient power rectification, it supports up to 200V-1000V and 1.5A, perfect for industrial, commercial, or hobby projects. Its reliable glass passivation, UL classification, and compact form enhance circuit durability and safety. Easy PCB mounting makes installation straightforward. Secure your supply chains today and enjoy fast, hassle-free online ordering with prompt delivery and excellent customer support. Ensure your project’s power needs are met with this dependable component.
Order your Multicomp Series DF1502 bridge rectifier today and ensure reliable power conversion for your electronic projects with high surge and voltage handling capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DF1502?
You can click on the BUY or RFQ button to purchase DF1502 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DF1502?
You can download the DF1502 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DF1502?
MULTICOMP PRO
