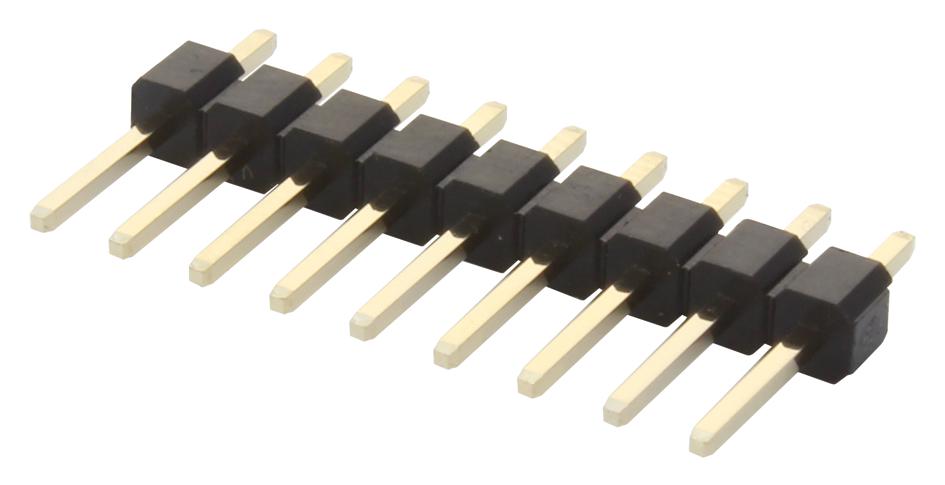

MULTICOMP PRO 2211S07G Pin Header
This 2.54mm vertical pin header is designed for PCB connections in electronic assemblies, featuring a single row, through-hole design, and gold-plated contacts for excellent conductivity. It supports a current rating of 3A, with a voltage rating of 250V AC/DC, operating from -40°C to +105°C. Made with UL94V-0 rated PBT insulator, its robust construction ensures reliable, corrosion-resistant connections suitable for industrial applications. Available in various sizes, it simplifies PCB wiring and high-density electronic designs.
MULTICOMP PRO 2211S07G Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: PBT (UL94V-0)
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Number of Positions: 7, 9, or 22
- Dimensions: 2.54mm pitch, through-hole, vertical orientation
Buy the Multicomp Pro 2211S07G – Reliable 2.54mm Pin Header for Industrial Applications
Purchase the Multicomp Pro 2211S07G pin header online today—engineered for reliable PCB connections in industrial and electronic applications. Featuring a 2.54mm pitch, vertical single row design, and gold-plated contacts for excellent conductivity and corrosion resistance. Rated at 3A and 250V, it withstands temperatures from -40°C to +105°C, making it ideal for demanding environments. Crafted from UL94V-0 PBT insulator in black, this high-quality header ensures long-lasting durability and stable electrical performance, simplifying your electronic assembly processes.
Get Multicomp Pro 2211S07G today—built for precision with gold-plated contacts and high thermal resistance, perfect for industrial PCB connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2211S07G?
You can click on the BUY or RFQ button to purchase 2211S07G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2211S07G?
You can download the 2211S07G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2211S07G?
MULTICOMP PRO
