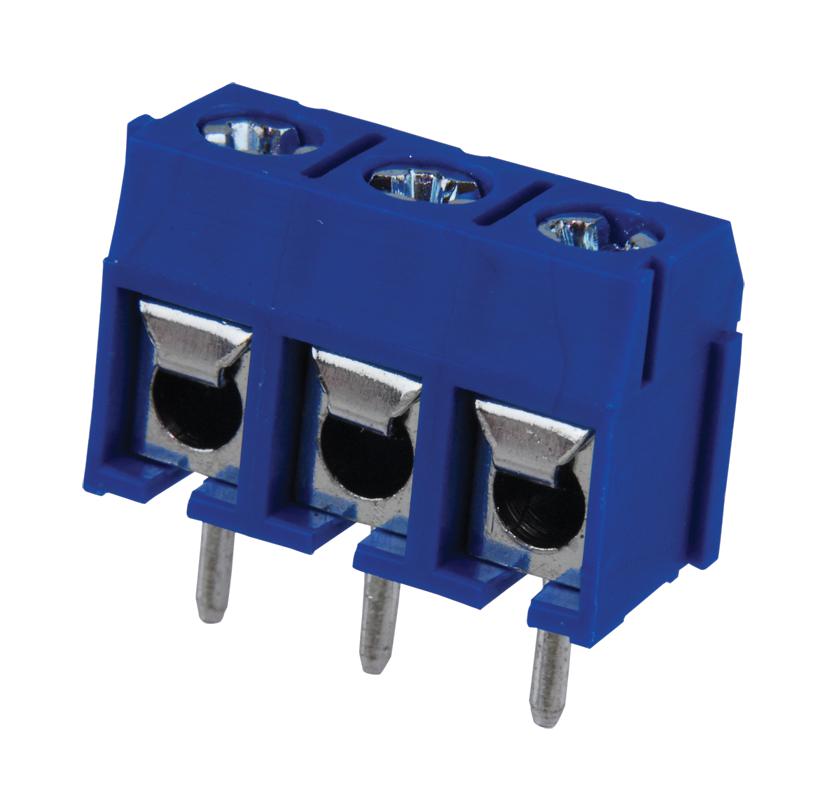

MULTICOMP PRO MC24360 Wire-to-Board Terminal Block
The MC24360 is a three-position Mini Terminal Block designed for secure wire-to-board connections. It features tin-plated brass terminals, a blue polyester insulator, and nickel-plated steel M3.0 screws. The terminal block accommodates 16 to 24 AWG wires and includes a stainless steel wire protector. This Eurostyle™ plug-side terminal block offers horizontal wire entry for versatile installation. Operating within -33°C to 105°C, it provides high insulation resistance over 5000 MΩ and a wire strip length of 4 to 5 mm. Ideal for industrial use, ensuring reliable, easy-to-install electrical connections across varied design needs.
MULTICOMP PRO MC24360 Wire-to-Board Terminal Block Specifications:
- Material: Brass, Tin Plated
- Insulating Body: Polyester
- Screw Material: Steel, Nickel Plated, M3.0
- Colour: Blue
- Operation Temperature: -33°C to +105°C
- Short Time Temperature: 250°C (+482°F)
- Current Rating: 116A at 250V AC
- Insulation withstands voltage: 1500V AC Min.
- Insulation Resistance: >5,000 MΩ at 500V DC
- PCB Hole Diameter: Ø1.4mm
- Wire Range: 16AWG to 24AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 4 lb-inch
- Pitch: 5mm (0.197")
- Number of Poles: 3
- Dimensions: Millimetres (Inches) - 45mm (1.77") length, 15mm (0.59") width
- Rated for industrial applications and reliable electrical connections
- RoHS Compliant
Buy the Buy multicomp Wire-To-Board Terminal Block Part Number MC24360 Online
Order the multicomp MC24360 wire-to-board terminal block online today and benefit from its high-quality construction, easy installation, and reliable performance in industrial applications. Designed for secure connections with 16 to 24 AWG wires, it features a blue polyester insulator, tin-plated brass terminals, and nickel-plated steel screws, ensuring durability and resistance to harsh environments. With an insulation resistance greater than 5000 MΩ, operating temperature range of -33°C to 105°C, and a wire strip length of 4 to 5 mm, this terminal block guarantees long-lasting, dependable electrical connections for your projects.
Get multicomp MC24360 today—built for secure, reliable wire-to-board connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24360?
You can click on the BUY or RFQ button to purchase MC24360 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24360?
You can download the MC24360 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24360?
MULTICOMP PRO
