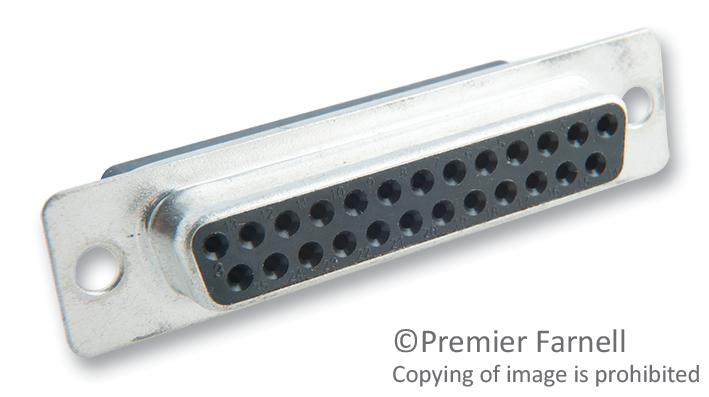

MULTICOMP PRO MC24556 D-Sub Female Connector
The MC24556 is a D-sub female crimp connector designed for industrial and electronic applications. It features tin-plated front and back shells for corrosion resistance, constructed with a durable PBT and glass fiber-reinforced UL94V-0 insulator. Supporting a current rating of 3A and a dielectric withstand voltage of 1000V AC, it ensures reliable performance. The connector offers a contact resistance of up to 15mΩ, operates within -25°C to +85°C, and has a standard mounting hole for easy installation. Suitable for connectors in computers, medical devices, automation systems, and equipment requiring durable, high-quality electrical connections.
MULTICOMP PRO MC24556 D-Sub Female Connector Specifications:
- Current Rating: 3A
- Insulation Resistance: 5000MΩ min. at 500V DC for 1 minute
- Dielectric Withstand Voltage: AC 1000V min.
- Operating Temperature: -25°C to +85°C
- Contact Resistance: 15mΩ max. mated
- Insulation Material: PBT & Glass-fiber reinforced UL-94V-0
- Number of Positions: 25
- Color Code: Black
- Metal Shell Finish: Tin-plated front and back shells
- Mounting Type: Standard Hole
- RoHS Compliant
- Connector Type: Receptacle Female
- Dimensions: Not specified (standard 25-position D-sub dimensions)
Buy the Multicomp MC24556 – Reliable D-Sub Female Connector for Industrial Applications
Order the Multicomp MC24556 D-sub female connector online today and enjoy fast delivery. This 25-position connector features tin-plated shells and UL94V-0 rated insulator, ensuring corrosion resistance and durability. With a 3A current rating and insulation resistance of 5000MΩ, it provides excellent electrical performance suited for industrial, automation, and computer applications. Easy to install with standard mounting holes, this connector withstands temperatures from -25°C to +85°C. Upgrade your electronic or industrial equipment with this high-quality, RoHS-compliant connector today.
Buy Multicomp MC24556 now and experience reliable connections with high durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24556?
You can click on the BUY or RFQ button to purchase MC24556 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24556?
You can download the MC24556 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24556?
MULTICOMP PRO
