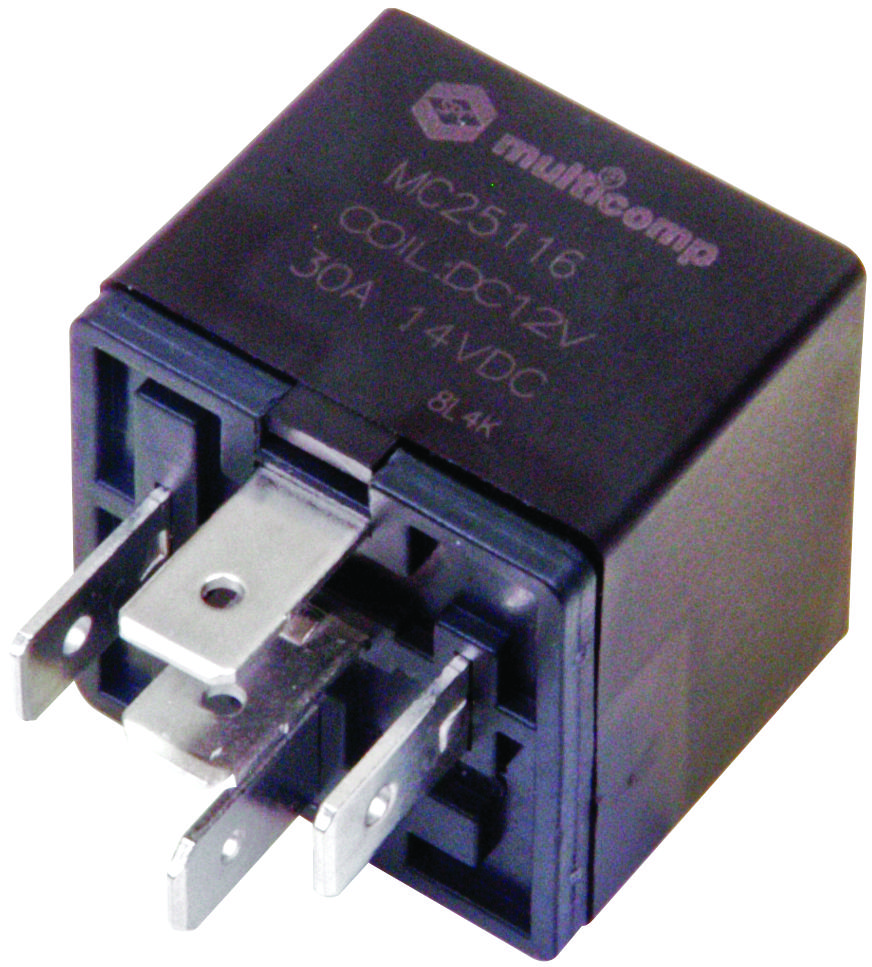

MULTICOMP PRO MC25116 Automotive Relay
The MC25116 is an automotive relay with a 1-form-C (SPDT) silver alloy contact, offering reliable switching for industrial and automotive applications. It features a panel-mount design with quick-connect terminals, a coil resistance of approximately 90 ohms, and a coil power rating of 1600mW. The relay ensures safety with a dielectric strength of 500VAC for one minute and has an electrical lifespan of 100,000 operations. Operates efficiently within -40°C to 85°C, with operate and release times not exceeding 10ms. Suitable for controlling high-current loads with stability and durability.
MULTICOMP PRO MC25116 Automotive Relay Specifications:
- Contact Material: Ag Alloy
- Contact Form: 1 form C (SPDT)
- Coil Resistance: approximately 90 ohms
- Coil Power: 1600mW
- Dielectric Strength: 500VAC for 1 min
- Electrical Life: 100,000 operations
- Operate Time: max. 10ms
- Release Time: max. 10ms
- Operating Temperature Range: -40°C to +85°C
- Maximum Switching Voltage: 75V DC
- Maximum Switching Current: 240A
- Maximum Load Current: 14V DC
- Contact Resistance: less than 100mΩ at 6V DC 1A
Buy the Multicomp Series Relay: Automotive Relay MC25116
Order the Multicomp MC25116 relay online today and enjoy fast delivery of a high-quality automotive relay designed for durability and performance. With a 1-form-C contact configuration and a coil resistance of approximately 90 ohms, this relay ensures reliable switching for high-current applications. Its dielectric strength of 500VAC and 100,000 operations lifespan make it ideal for automotive and industrial environments. Operates within -40°C to 85°C, with quick 10ms operate and release times. Secure yours now for dependable control and long service life.
Buy Multicomp MC25116 relay now and experience reliable switching with high durability and quick response suitable for industrial and automotive use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25116?
You can click on the BUY or RFQ button to purchase MC25116 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25116?
You can download the MC25116 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25116?
MULTICOMP PRO
