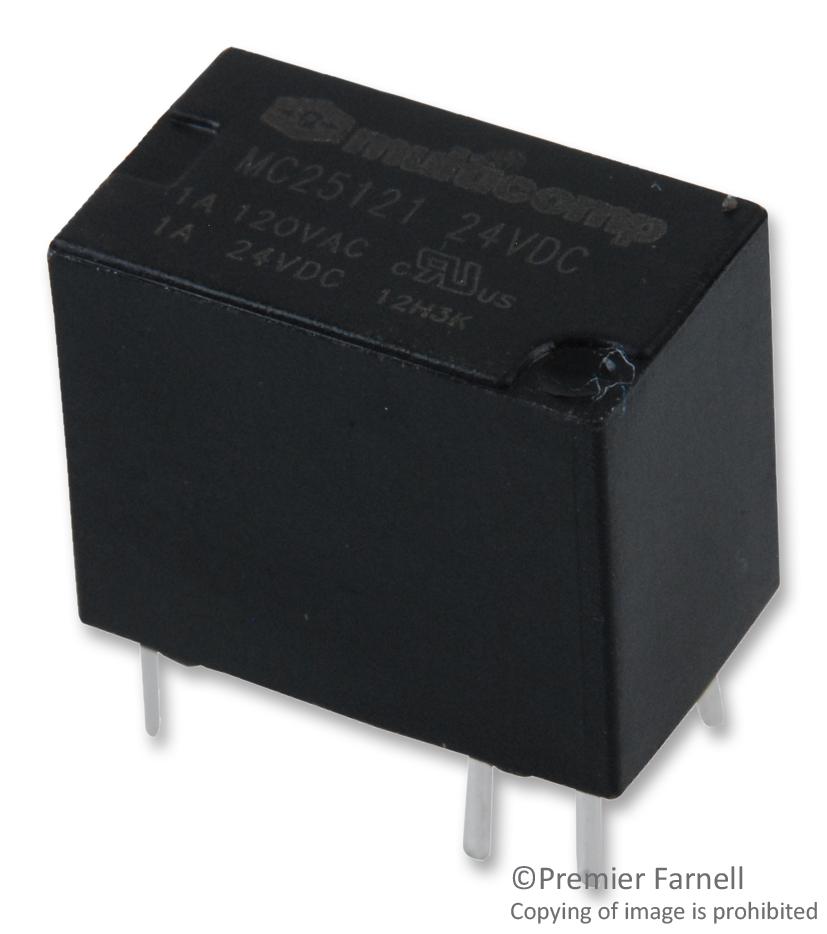

MULTICOMP PRO MC25121 industrial relay
Multicomp Pro relay with 21 form C contacts, AuAg overlay, capable of switching 1A at 120VAC or 24V DC, with maximum switching voltage of 220V AC and 30V DC. It features a life expectancy of 100,000 electrical operations and 5,000,000 mechanical cycles. Key specs include a contact resistance of 50mΩ, dielectric strength of 750V AC, and operate and release times within 5ms. Designed for durability, it withstands temperatures from -40°C to +70°C, with robust shock and vibration resistance suitable for industrial applications.
MULTICOMP PRO MC25121 industrial relay Specifications:
- Contact Form: 21 form C
- Contact Material: AuAg overlay, Ag Alloy
- Maximum Switching Voltage: 220V AC / 30V DC
- Maximum Switching Current: 2A
- Maximum Switching Power: 120VA, 30W
- Contact Resistance: 50mΩ (6V DC 0.1A)
- Electrical Life: 100,000 operations
- Mechanical Life: 5,000,000 operations
- Insulation Resistance: 1000MΩ at 500V DC
- Dielectric Strength: 750V AC, 1 min between open contacts, 1000V AC for coil/contact separation
- Operate Time: ≤5ms
- Release Time: ≤5ms
- Operate Temperature Range: -40°C to +70°C
- Shock Resistance: 1000 m/s² endurance
- Vibration Resistance: 10–55Hz, 1.5mm amplitude endurance
- Humidity: 35% to 95% RH at 40°C
- Dimensions: Millimetres (specific dimensions available on datasheet)
Buy the Multicomp Pro MC25121 – Reliable Industrial Relay for Automation Systems
Discover the dependable performance of the Multicomp Pro relay MC25121, designed for industrial automation and switching applications. Featuring AuAg contacts and a high switching capacity, this relay offers exceptional durability with up to 100,000 electrical operations and 5 million mechanical cycles. Its compact design ensures easy integration into various control systems, supporting voltages up to 220V AC and 30V DC. Ideal for demanding industrial environments, enhance your automation setup with this robust and reliable relay, available to purchase online today.
Buy Multicomp Pro MC25121 now and enjoy high durability and precise switching for industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25121?
You can click on the BUY or RFQ button to purchase MC25121 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25121?
You can download the MC25121 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25121?
MULTICOMP PRO
