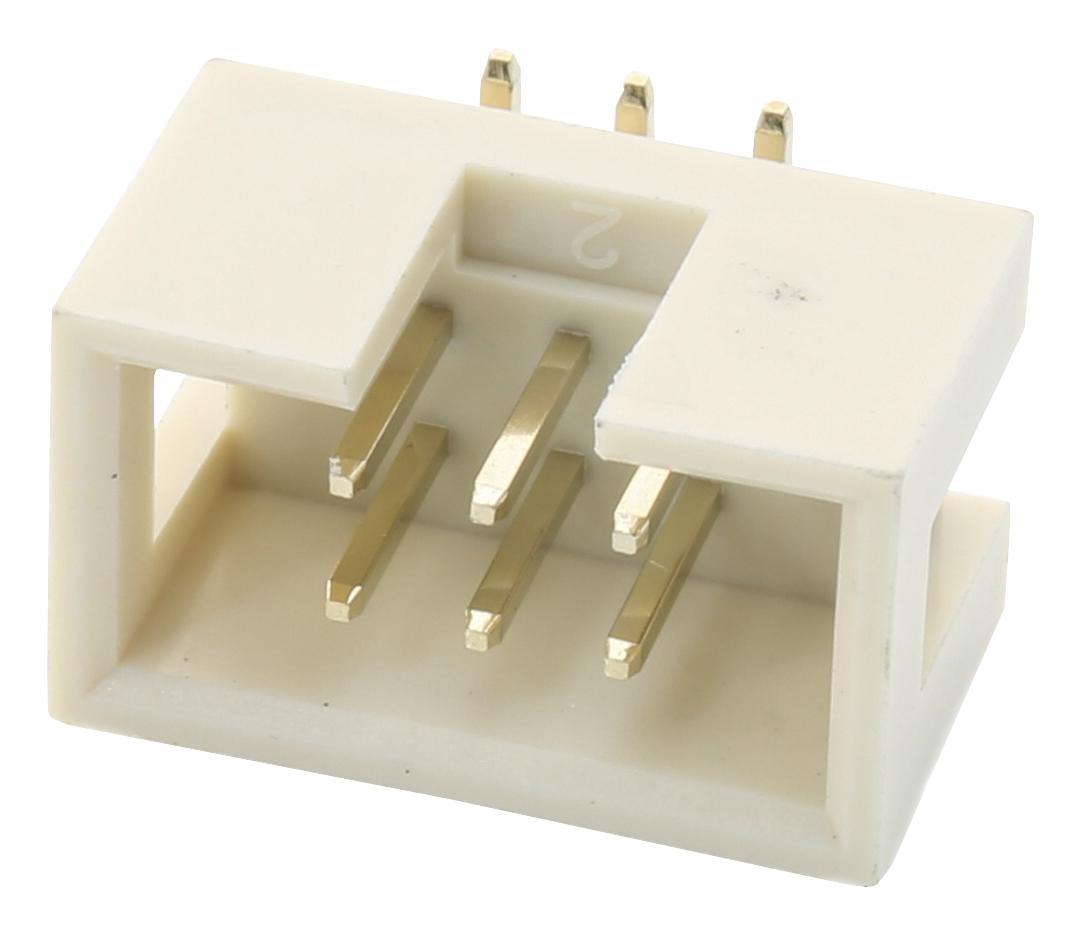

MULTICOMP PRO MC2540800STSMD Vertical SMD Box Header
This 2.54mm box header is a vertical, SMD type designed for reliable electrical connections in compact electronic assemblies. It features multiple positions ranging from 6 to 34 contacts, with gold-plated copper alloy contacts and high-temp nylon insulators rated up to 105°C. Rated for 600V AC/DC and 20mΩ contact resistance, it supports RoHS compliance and withstands peak reflow temperatures of 260°C for 5 seconds. Its standardized dimensions suit printed circuit boards, ensuring easy installation and robust performance for various electronic applications.
MULTICOMP PRO MC2540800STSMD Vertical SMD Box Header Specifications:
- Current Rating: 20mΩ maximum contact resistance
- Voltage Rating: 600V AC/DC for one minute
- Insulator Material: High-temp nylon (UL94V-0)
- Contact Material: Copper alloy with gold plating
- Operating Temperature Range: –40°C to +105°C
- Dimensions: Varying lengths from 15.28mm to 50.84mm depending on contact count
- Reflow Temperature: 260°C, 5 sec max.
- RoHS compliant: Yes
- Color: White
- Temperature Rating: Up to 105°C
- Current Rating: 5A per contact
- Pin Count: 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34
Buy the Multicomp Series 2.54mm Box Header: MC2540800STSMD
Order the Multicomp Vertical SMD Box Header MC2540800STSMD online today and enhance your electronic assembly with high-quality, gold-plated contacts rated for 600V AC/DC. Featuring high-temp nylon insulators and multiple contact configurations, this component offers excellent reliability for compact circuit designs. Its robust construction supports reflow soldering up to 260°C, ensuring easy integration into your manufacturing process. Perfect for PCB connections in industrial, consumer, and automation applications, buy now for fast delivery and seamless performance.
Get Multicomp 2.54mm box header MC2540800STSMD today—designed for reliable PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2540800STSMD?
You can click on the BUY or RFQ button to purchase MC2540800STSMD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2540800STSMD?
You can download the MC2540800STSMD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2540800STSMD?
MULTICOMP PRO
