MULTICOMP PRO MC25410SLRADIP Double Row Shrouded Header
This 2.54mm shrouded header with ejector is a double row, right angle through-hole connector designed for reliable electrical connections in circuit boards. Available in short and long ejector versions, it features gold-plated copper contacts and a PBT insulating body with a UL94V-0 flame rating. Rated for 8A AC/DC and 250V, it withstands 600V for one minute, operates from -40°C to +105°C, ensuring durability and performance in various environments. The header's precise dimensions optimize alignment and insertion, suited for industrial, automation, and electronics assembly applications.
MULTICOMP PRO MC25410SLRADIP Double Row Shrouded Header Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT (UL94V-0), Copper Alloy contacts
- Plating: Gold Plated
- Dimensions: Vary by model, length from 32.2mm to 100.78mm, pitch 2.54mm, width around 10-78mm, height approximately 10-40mm
- Type: Double row, right angle, through-hole
- Features: Short and long ejector options, high reliability for industrial applications

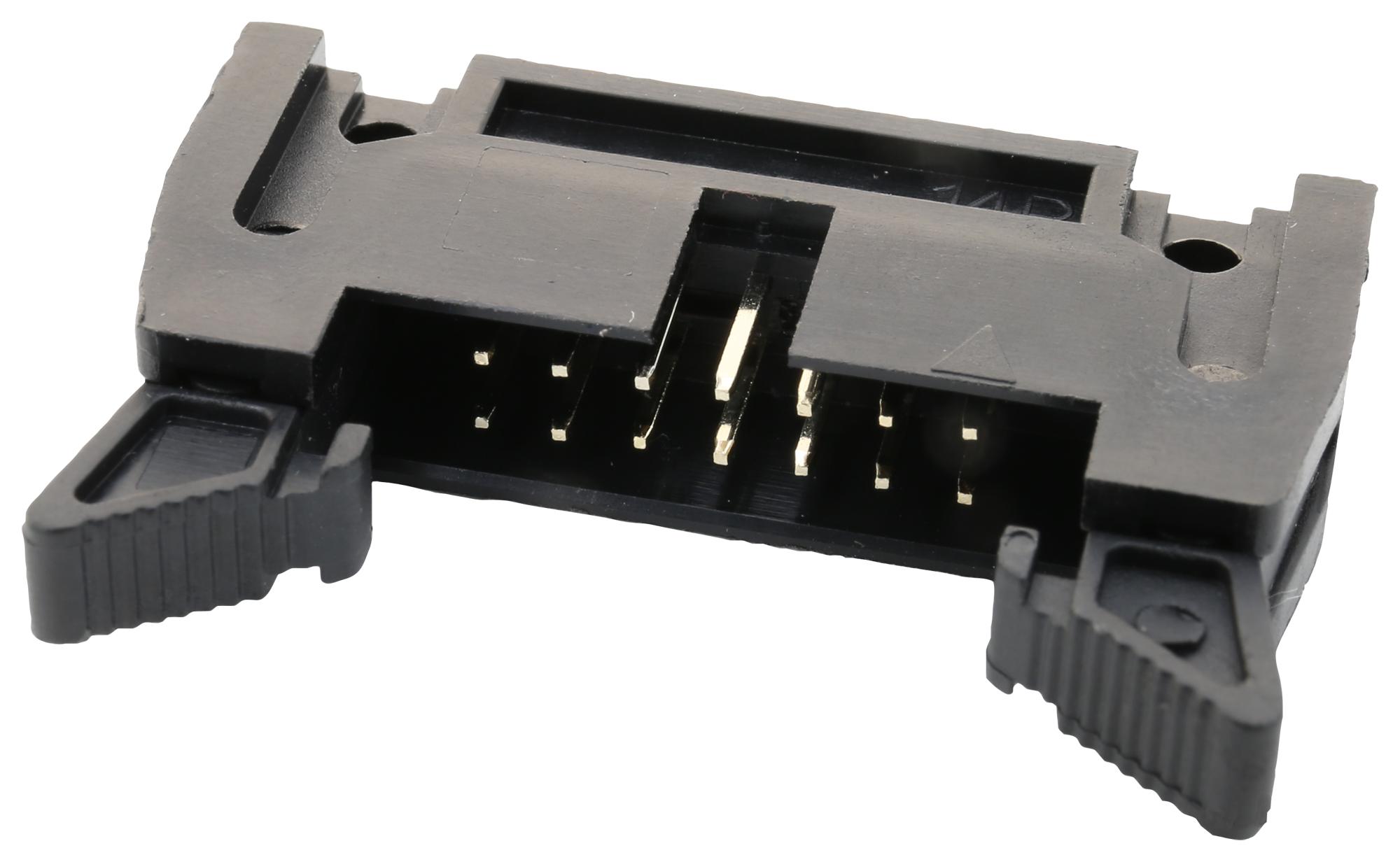

Buy the Buy multicomp part number MC25410SLRADIP Online
Purchase the multicomp double row shrouded header with ejector online today to ensure high-quality connections for your electronic and industrial projects. Featuring gold-plated copper contacts, a robust UL94V-0 rated plastic body, and rated for up to 8A and 250V, this connector guarantees durability and reliable performance in challenging environments. Available in short and long ejector variants, it offers precise dimensions for easy alignment and insertion. Order now to enhance your circuit design with these trusted, high-performance headers, backed by a 12-month warranty and excellent customer ratings.
Buy multicomp MC25410SLRADIP now and experience unmatched reliability and high-performance electrical connections with durable header contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25410SLRADIP?
You can click on the BUY or RFQ button to purchase MC25410SLRADIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25410SLRADIP?
You can download the MC25410SLRADIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25410SLRADIP?
MULTICOMP PRO
