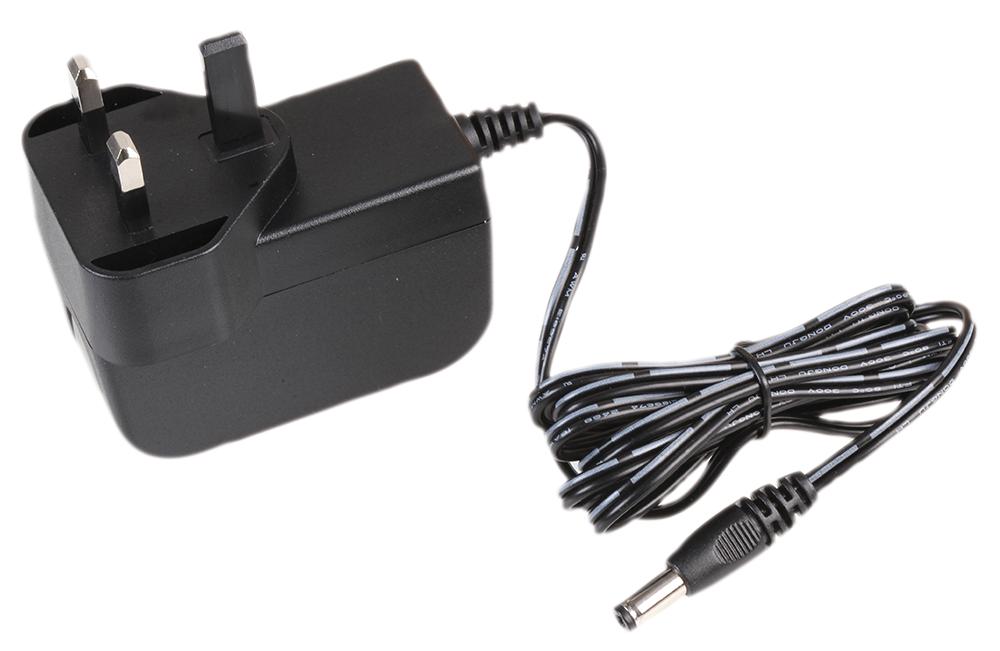

MULTICOMP PRO MP004765 Wall Plug Power Supply
The 24W UK Wall Plug Adapter provides a reliable 12V DC output at 2A, designed for general power applications. Its compact fixed wall plug enclosure features a UK standard plug, offering high efficiency of at least 86.8% and Level VI energy compliance. The switched mode power supply includes protections such as over-voltage, over-current, and short-circuit safeguards, ensuring safe operation. Suitable for various electronic devices, it operates in temperatures from 0°C to +40°C with an operating humidity of 20% to 85%, making it an ideal choice for secure, efficient power delivery in UK-based setups.
MULTICOMP PRO MP004765 Wall Plug Power Supply Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.8A Max
- Output Voltage: +12V
- Output Current Range: 2A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive, Straight Angle
- Total Output Regulation: +5%
- Line and Load Regulation: 42%
- Ripple & Noise: 300mVp-p
- Efficiency: 86.8% Min
- Over Voltage Protection: 20V DC Max
- Over Current Protection: 4A max, auto-recovery
- Short-Circuit Protection: Protects device from damage
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Safety Standard: T-LICENSE BS EN60950-1
- EMI Standard: CE EN55032
- MTBF: 100,000 Hours
- Size: Max 74.5mm x 50.4mm x 88.7mm
- Weight: 156 g
Buy the Multicomp Series Wall Plug Power Supply: MP004765
Get the reliable 24W UK Wall Plug Adapter today, providing a steady 12V DC output at 2A. Its compact, energy-efficient design includes advanced protections such as over-voltage, over-current, and short-circuit safeguards, ensuring safety and durability. Suitable for diverse electronic devices, this power supply operates efficiently within a wide input voltage range of 90V to 264V AC. Its compact dimensions, high MTBF of 100,000 hours, and compliance with safety standards make it an excellent choice for secure, long-lasting power delivery in UK-based electronics installations.
Order your Multicomp Series 24W UK Wall Plug Adapter with 12V DC, 2A, today and give your electronics the dependable, efficient power they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004765?
You can click on the BUY or RFQ button to purchase MP004765 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004765?
You can download the MP004765 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004765?
MULTICOMP PRO
