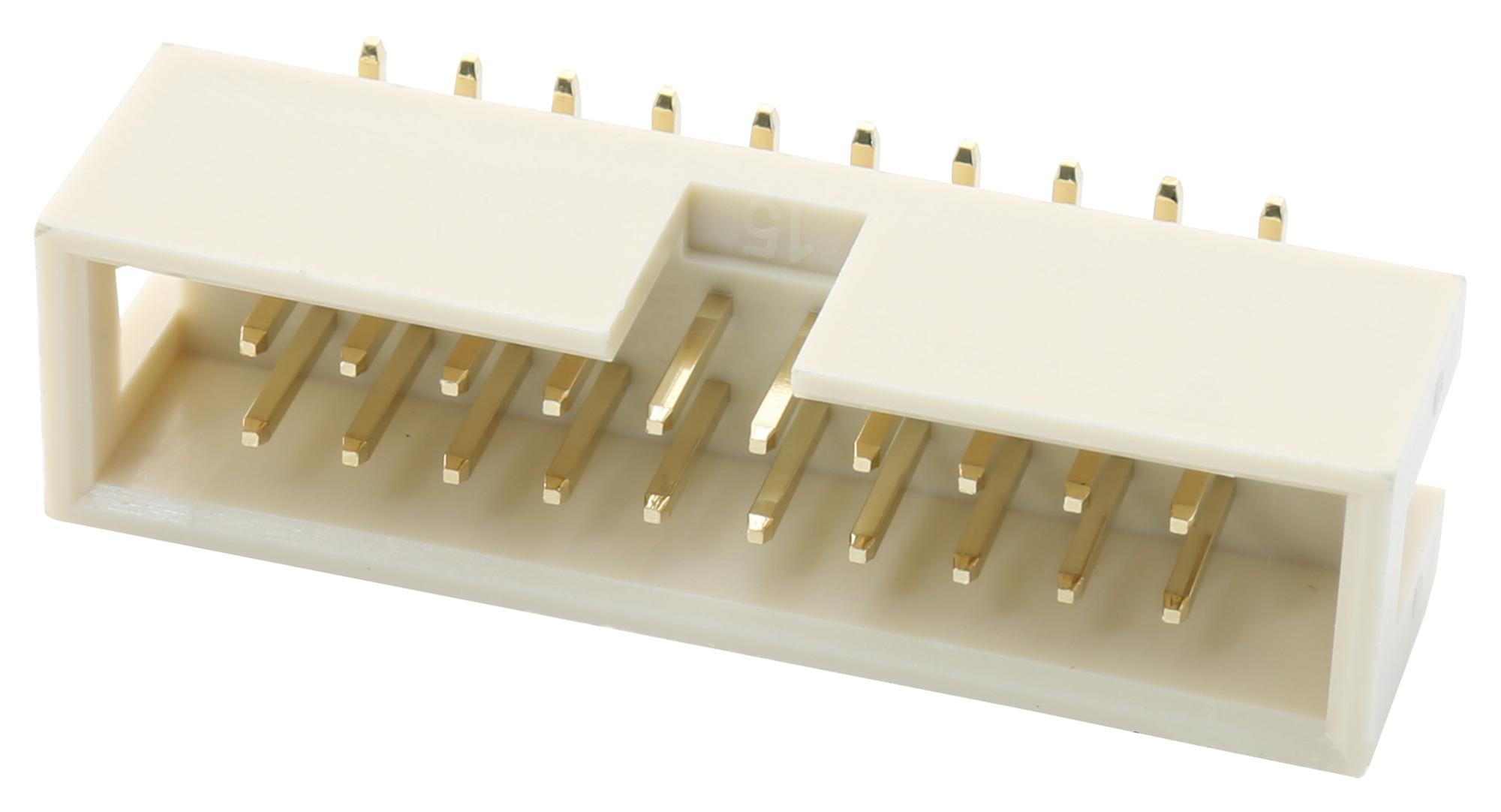

MULTICOMP PRO MC2542000STSMD Vertical Box Header
This vertical 2.54mm box header is designed for reliable rigid connections in electronic assemblies, featuring high-temperature plastic, gold-plated copper contacts, and RoHS compliance. Suitable for SMD applications, it supports a voltage rating of 250V AC/DC and a current rating of 5A. The header offers various pin configurations from 6 to 34 positions, with dimensions ranging from approximately 15.28mm to 50.84mm in length. It withstands high temperatures up to 260°C and operates safely within a temperature range of -40°C to +105°C. The high-quality materials ensure durability, corrosion resistance, and excellent electrical performance for industrial and commercial applications.
MULTICOMP PRO MC2542000STSMD Vertical Box Header Specifications:
- Current Rating: 5A
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Material: High Temp. Plastic (Nylon 6T UL94V-0), Copper Alloy, Gold Plated
- Operating Temperature Range: -40°C to +105°C
- IR Reflow Temperature: 260°C, 5 Sec. Max.
- Dimensions: Varies by model, length ranges from 15.28mm to 50.84mm, width approximately 5.08mm to 40.64mm
- RoHS Compliant
Buy the Multicomp 25400-0STSMD – Reliable Vertical Box Header for Industrial Applications
Enhance your electronic assemblies with the Multicomp Series MC2542000STSMD vertical box header. Featuring gold-plated copper contacts, high-temperature nylon housing, and various pin configurations, this reliable connector ensures optimal electrical performance. RoHS compliant and rated for 250V AC/DC with a current of 5A, it withstands high temperatures up to 260°C, ideal for industrial and commercial applications. Easy to mount on PCBs, it offers durability, corrosion resistance, and versatile options for your manufacturing needs. Purchase online now for quality assurance.
Order your Multicomp Series MC2542000STSMD vertical box header today and give your electronic projects dependable, high-quality connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2542000STSMD?
You can click on the BUY or RFQ button to purchase MC2542000STSMD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2542000STSMD?
You can download the MC2542000STSMD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2542000STSMD?
MULTICOMP PRO
