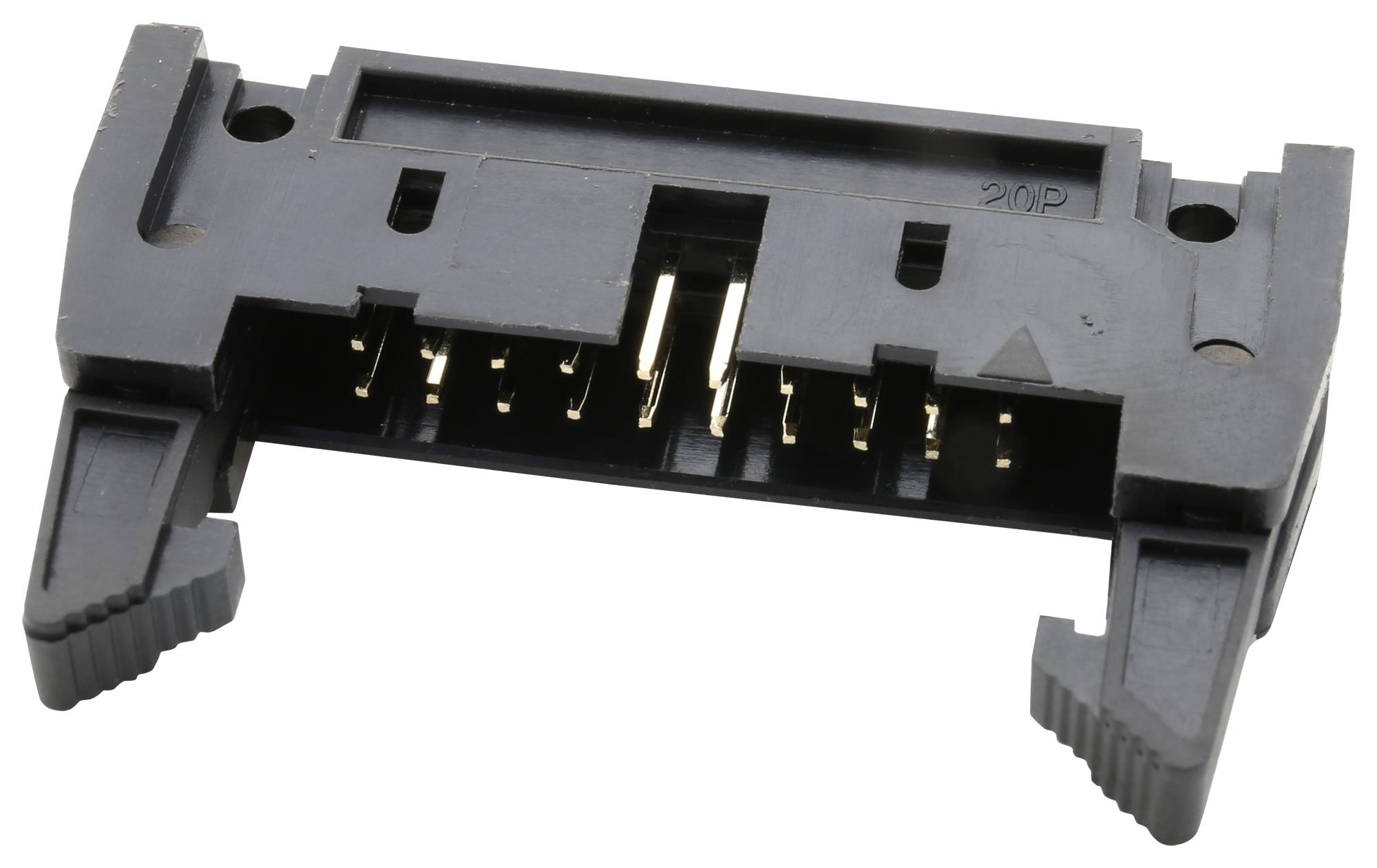

MULTICOMP PRO MC25420LLRADIP double row header
The 2.54mm shrouded header with ejector features double row, right angle, through hole design suitable for robust electronic connections in various applications. Available in short and long ejector variants, it offers reliable contact resistance of 20mΩ max, insulation resistance of 1000MΩ min, and withstands voltages up to 600V AC for one minute. Constructed with copper alloy contacts plated in gold, and housed in UL94V-0 black PBT plastic, it operates effectively from -40°C to +105°C. Suitable for PCB mounting, these headers ensure secure and durable connections for complex electronic systems.
MULTICOMP PRO MC25420LLRADIP double row header Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold
- Dimensions: A varies from 32.2mm to 100.78mm, B varies from 10.16mm to 78.74mm depending on model, c varies from 10.16mm to 40.8mm depending on model
- Row: Double
- Type: Right angle, through hole
- Ejector: Short and Long options available
Buy the Buy Multicomp High-Quality 2.54mm Header Part Number MC25420LLRADIP Online
Purchase the high-quality 2.54mm shrouded header with ejector online today to enjoy fast delivery and competitive prices. Designed for reliable electrical connections, this double row, right angle through hole connector provides excellent contact resistance and withstands high voltages, making it ideal for PCB assembly. Constructed with durable materials including gold-plated copper contacts and UL94V-0 rated plastic, it operates smoothly from -40°C to +105°C. Invest in a trusted component for your electronic systems with easy online ordering.
Order your Multicomp Series MC25420LLRADIP 2.54mm Header today and ensure your PCB connections are dependable for all your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25420LLRADIP?
You can click on the BUY or RFQ button to purchase MC25420LLRADIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25420LLRADIP?
You can download the MC25420LLRADIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25420LLRADIP?
MULTICOMP PRO
