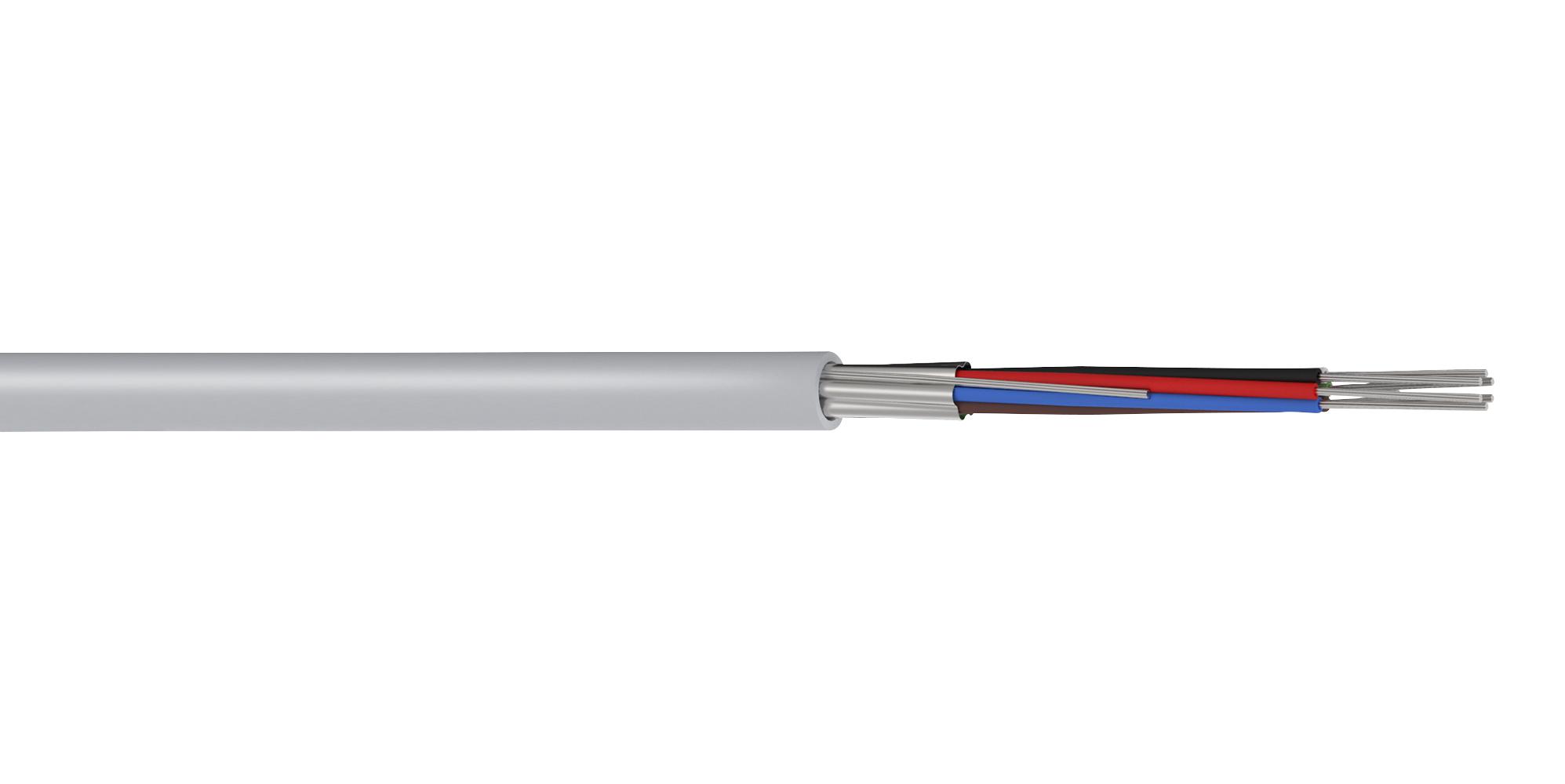

MULTICOMP PRO PP000887 Data Communication Cable
The screened multicore Low Smoke and Fume (LSF) computer cable is designed for data transmissions with protection against electrical interference. Suitable for RS232 applications, it features a stranded tinned copper conductor, PVC insulation, aluminium foil screen, and a grey sheath. Available in 6-core configuration with 24 AWG conductors, it supports up to 300V voltage rating and operates efficiently within a temperature range of -20°C to +80°C. The cable's construction ensures durable performance in industrial and communication setups, with specifications emphasizing low smoke emission and reliable electrical shielding.
MULTICOMP PRO PP000887 Data Communication Cable Specifications:
- Voltage Rating: 300V
- Temperature Rating: -20°C to +80°C
- Core Count: 6
- Conductor Material: Stranded tinned copper
- Insulation Material: PVC
- Shielding: Aluminium foil
- Sheath Color: Grey
- Conductor Cross-Section: 24 AWG (0.2 mm²)
- Dimensions: No. of cores, overall diameter varies with core count, typical strand diameter 0.2 mm
- Capacitance at 1kHz: 107 pF/m
- Resistance of Conductors at 20°C: 94.1 Ω/km
Buy the Buy Multicomp Low Smoke and Fume Computer Cable Part Number PP000887 Online
Experience the durability and reliability of Multicomp's Low Smoke and Fume Computer Cable. Designed with aluminium foil shielding and PVC insulation, this 6-core 24 AWG cable ensures excellent electrical performance and interference resistance. Ideal for RS232 applications, it supports up to 300V and operates reliably in temperature ranges from -20°C to +80°C. Perfect for industrial, automation, and communication systems, this high-quality screened multicore cable guarantees safety, durability, and efficient data transfer for your projects.
Get Multicomp PP000887 today—built for reliable data transmission and electrical interference protection in industrial environments.
