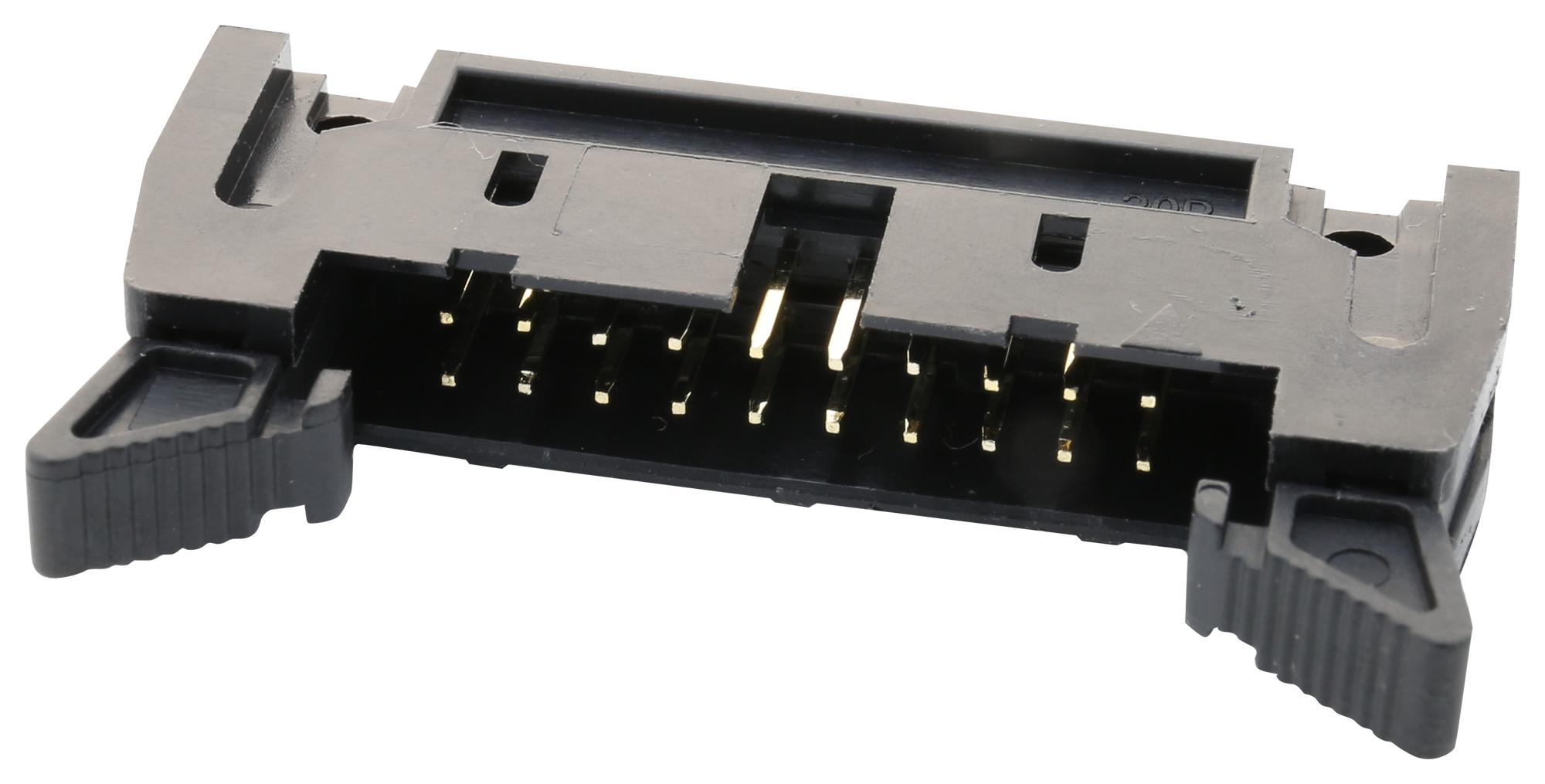

MULTICOMP PRO MC25426SLSTDIP Pin Header
This 2.54mm shrouded header with ejector from Multicomp Pro offers reliable connections for vertical through-hole applications. Designed with a double-row configuration and available in short or long ejector variants, it features high-quality materials including copper alloy contact with gold plating, and a durable PBT UL94V-0 plastic housing. Rated at 3AAC/DC and 250V AC/DC, it withstands voltage up to 600V for one minute, with operating temperatures from -40°C to +105°C. Suitable for PCB mounting, it provides stable, secure electrical connections in various electronic assemblies.
MULTICOMP PRO MC25426SLSTDIP Pin Header Specifications:
- Current Rating: 3AAC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mQ Max.
- Insulation Resistance: 1000MQ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials and Finish: PBT (UL94V-0) plastic, Copper Alloy contact with gold plating
- Dimensions (A): 52.52mm (for 26POS short ejector), (B): 30.48mm, (C): 15.24mm
- Configuration: Double row, through-hole, vertical mount, keying option available
Buy the Buy Multicomp Shrouded Header Part Number MC25426SLSTDIP Online
Enhance your electronic circuitry with the high-quality 2.54mm shrouded header from Multicomp Pro. This durable, reliable connector features a double-row, vertical through-hole design, with short or long ejector options for flexible assembly. Constructed with gold-plated copper alloy contacts and UL94V-0 rated plastic housing, it ensures excellent electrical performance and connection stability. Rated at 3AAC/DC and 250V AC/DC, with withstand voltage up to 600V, it is suitable for a wide range of PCB applications, operating from -40°C to +105°C. Order online now and experience dependable quality.
Order your Multicomp Series MC25426SLSTDIP 2.54mm shrouded header today and ensure reliable, secure connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25426SLSTDIP?
You can click on the BUY or RFQ button to purchase MC25426SLSTDIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25426SLSTDIP?
You can download the MC25426SLSTDIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25426SLSTDIP?
MULTICOMP PRO
