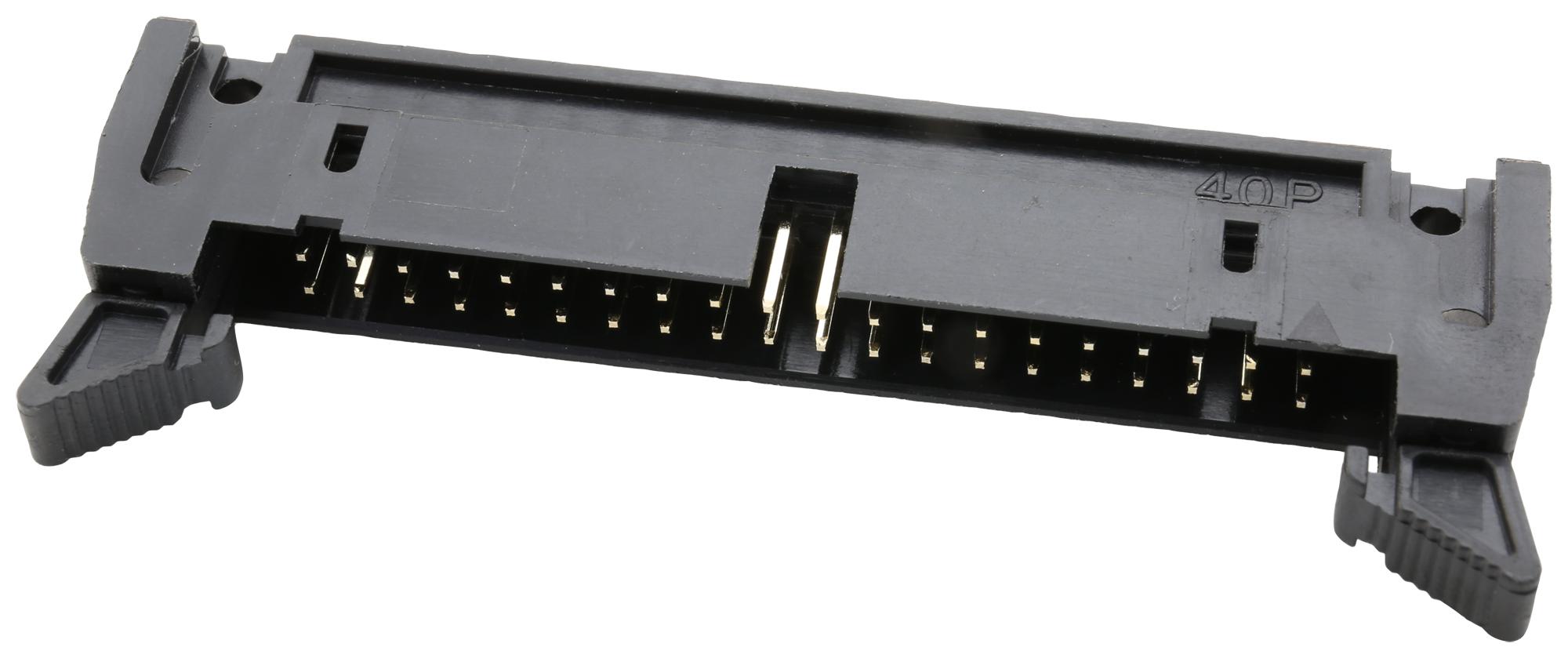

MULTICOMP PRO MC25460LLRADIP Dual-row Header Connector
This 2.54mm shrouded header with ejector from multicomp offers reliable 8A/DC current rating and 250V AC/DC voltage for through-hole double-row configurations. Available with short or long ejectors, it is constructed from UL94V-0 rated PBT plastic with gold-plated copper alloy contacts for excellent conductivity and corrosion resistance. The headers support operating temperatures from -40°C to +105°C and feature secure insulation resistance and withstand voltage specifications, making them ideal for industrial circuit applications requiring durable and precise header connectors.
MULTICOMP PRO MC25460LLRADIP Dual-row Header Connector Specifications:
- Current Rating: 8A DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT plastic (UL94V-0), Copper Alloy contact
- Plating: Gold-plated contacts
- Connector Type: Double row, right-angle, through-hole
- Ejector Type: Short or Long, varies by model
- Pin Spacing: 2.54mm
- Dimensions vary from approximately 32.2mm to 100.78mm in length depending on the number of positions
Buy the Multicomp Series 2.54mm Shrouded Header with Ejector: MC25460LLRADIP
Purchase the multicomp dual-row 2.54mm shrouded headers with ejector today and ensure secure, reliable connections for your electronic projects. Designed with robust gold-plated contacts, these headers support a current of 8A and voltage up to 250V, suitable for industrial circuit boards. Available with short or long ejectors, these connectors offer excellent insulation resistance and withstand voltage, operating efficiently within a temperature range of -40°C to +105°C. Order now for fast delivery and quality assurance.
Buy multicomp MC25460LLRADIP now and experience unmatched reliability and high-performance contact connections for industrial and electronic applications.
