MULTICOMP PRO MCPS25B2 Pushbutton Switch
This non-illuminated, round pushbutton switch offers reliable SPST contact configuration with quick connect tabs, rated at 1A, 125V AC/250V AC. Made with copper alloy and available in various colors including black, red, yellow, and green, it provides a contact resistance of max 30milliohms, insulation resistance of at least 100MΩ at 500VDC, and dielectric strength of 1000V AC for one minute. It supports at least 5,000 electrical cycles and 10,000 mechanical cycles, with a push force over 0.3kg, suitable for panel mounting with soldering at 240°C for 3 seconds.
MULTICOMP PRO MCPS25B2 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-illuminated, Round
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC / 250V AC
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 100MΩ Min. 500VDC
- Dielectric Strength: 1000V AC/1 minute
- Electrical Life: 5,000 Cycles Min.
- Mechanical Life: 10,000 Cycles Min.
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: >0.3kg
- Soldering Temperature: 240°C for 3s
- Dimensions: Millimetres panel mounting
- Colors Available: Black, Red, Yellow, Green

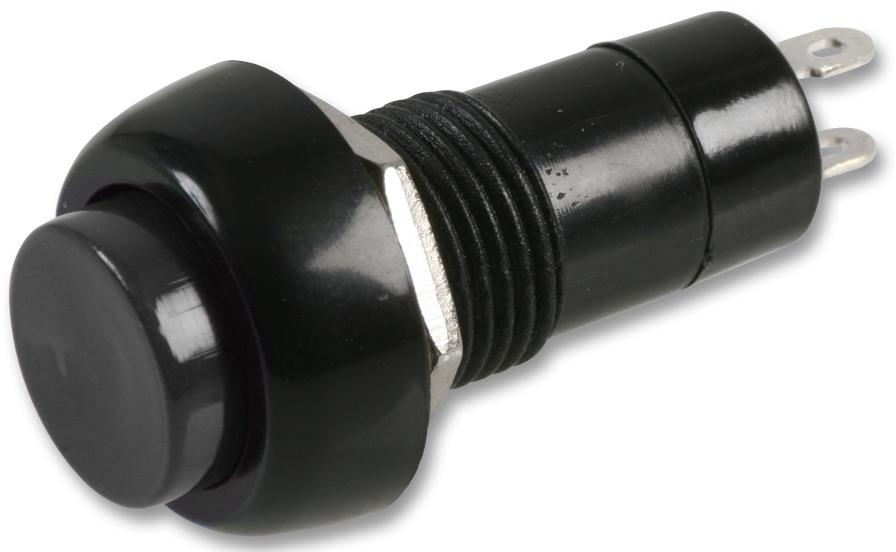

Buy the Buy Multicomp Non-Illuminated Round Pushbutton Switch Part Number MCPS25B2 Online
Purchase the high-quality non-illuminated round pushbutton switch online today for reliable operation in your control panels. Featuring SPST configuration, quick connect tabs, and rated at 1A, 125V/250V AC, this switch offers high durability with over 10,000 mechanical cycles and 5,000 electrical cycles. Its copper alloy contacts ensure excellent conductivity, while the variety of colors like black, red, yellow, and green allow for easy identification. Ideal for industrial equipment, automation, and control systems requiring robust, easy-to-install switch solutions.
Get Multicomp MCPS25B2 today—designed for durability and reliable panel control with quick connect terminals and robust copper alloy contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPS25B2?
You can click on the BUY or RFQ button to purchase MCPS25B2 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPS25B2?
You can download the MCPS25B2 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPS25B2?
MULTICOMP PRO
