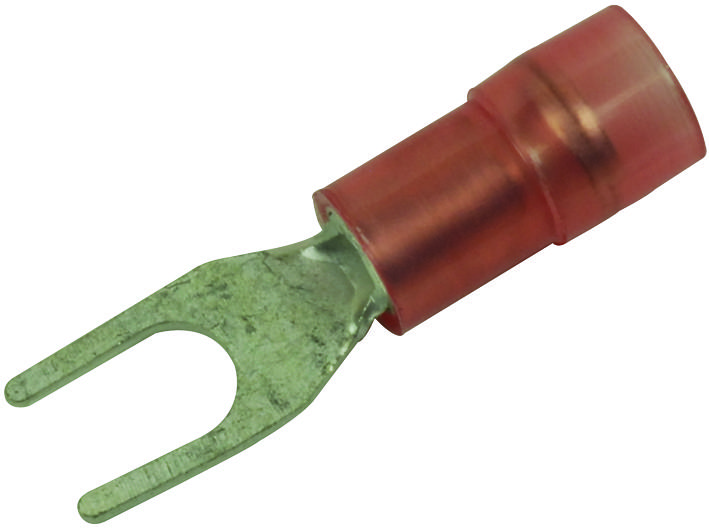

MULTICOMP PRO MC29604 Heavy Duty Spade Terminal
The MC29604 is a copper fork/spade terminal with a tin-plated finish, designed for reliable electrical connections in industrial settings. It features a red nylon insulated sleeve for safety and insulation, accommodating wire gauges from 22 to 16 AWG. Rated at 600V and 105°C, this heavy-duty double crimp terminal ensures secure attachments with copper sleeve on the barrel. Its robust construction makes it ideal for high-current applications, providing long-lasting performance and safety in electrical installations.
MULTICOMP PRO MC29604 Heavy Duty Spade Terminal Specifications:
- Max. Electric Current: AWG 22 | 20 | 18 | 16 | 14 | 12 | 10
- Amperes: 9 | 12 | 17 | 18 | 30 | 35 | 50
- Type: Spade
- Termination Method: Crimp
- Contact Plating: Tin
- Insulator Material: Nylon
- Max. Electrical Rating: 600V at 105°C
- Insulation Colour: Red (22AWG to 16AWG), Blue (16AWG to 14AWG), Yellow (12AWG to 10AWG)
- Double Crimp: With copper sleeve on barrel
- Dimensions (approximate): d2 0.126 in (3.2 mm), w 0.224 in (5.7 mm), L 0.866 in (22 mm), E 0.433 in (11 mm), D 0.177 in (4.5 mm), a 0.067 in (1.7 mm), T 0.03 in (0.75 mm)
Buy the Multicomp Heavy Duty Insulated Spade Terminal – Reliable Industrial Electrical Connection
Purchase the heavy-duty nylon-insulated spade terminal online for secure, reliable electrical connections in industrial applications. Rated at 600V and 105°C, it features a copper sleeve with double crimp for enhanced safety and durability. Suitable for 22-16 AWG wires, this terminal offers high-quality tin contact plating and color-coded insulation for easy identification—red, blue, and yellow for different wire sizes. Its robust construction guarantees long-lasting performance in demanding electrical projects, making it the ideal choice for professional technicians and electrical installers seeking trustworthy components.
Get Multicomp MC29604 today—built for secure and durable electrical connections in industrial environments.
