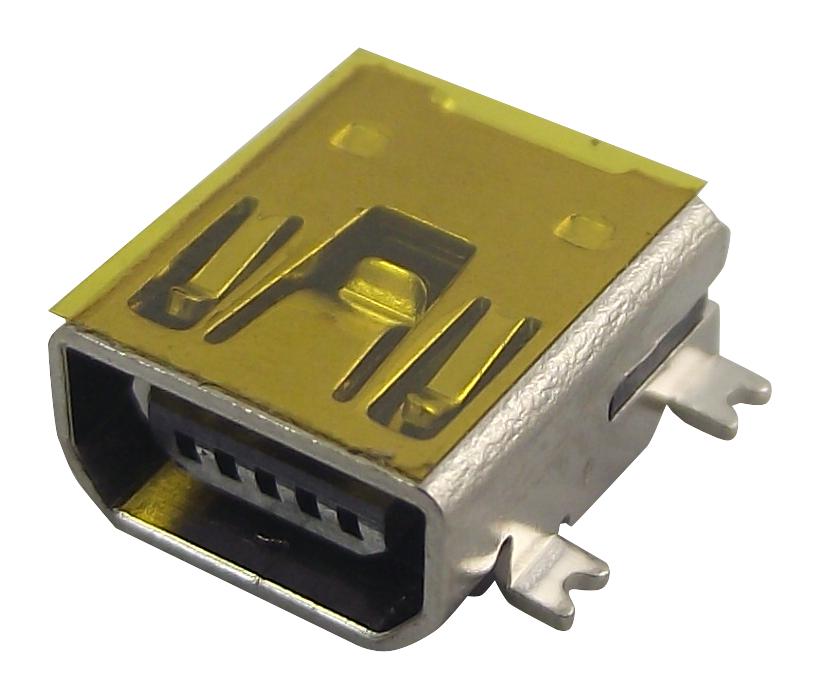

MULTICOMP PRO MC32598 Mini USB Socket
The Mini USB socket with AB type features SMT mounting for easy surface installation on printed circuit boards. Compliant with RoHS standards, it offers a current rating of 1A AC/DC and supports a voltage of 30V AC/DC. Made with high-quality materials including a high-temperature LCP insulator, phosphor bronze contacts with gold plating, and a brass shell with tin plating. It withstands voltage up to 750V AC for a minute, operates in a temperature range of -40°C to +105°C, making it suitable for various electronic projects requiring reliable USB connections.
MULTICOMP PRO MC32598 Mini USB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 30V AC/DC
- Max. Contact Resistance: > 20mΩ
- Min. Insulation Resistance: 1000MΩ
- Withstanding Voltage: 750V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High temperature plastic (LCP)
- Insulator Color: Black
- Contact Material: Phosphor bronze
- Contact Plating: Gold plated over 50u inches nickel, solder tail 100u inches tin over 50u inches nickel
- Shell Material: Brass with tin plating
- Dimensions: Custom millimeter measurements, recommended PCB layout provided
Buy the Multicomp Series Mini USB: MC32598
Purchase the Mini USB Socket MC32598 online today to ensure a secure, reliable connection for your electronic devices. Designed for SMT mounting with high-quality materials, it features gold-plated contacts for optimal connectivity and a durable brass shell with tin plating. Its operating temperature range from -40°C to +105°C makes it suitable for various environments. Withstanding voltage of 750V AC for one minute and a current rating of 1A AC/DC, this connector guarantees performance and durability. Simplify your assembly process by ordering this RoHS-compliant component online now.
Buy Multicomp Series Mini USB socket MC32598 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32598?
You can click on the BUY or RFQ button to purchase MC32598 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32598?
You can download the MC32598 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32598?
MULTICOMP PRO
