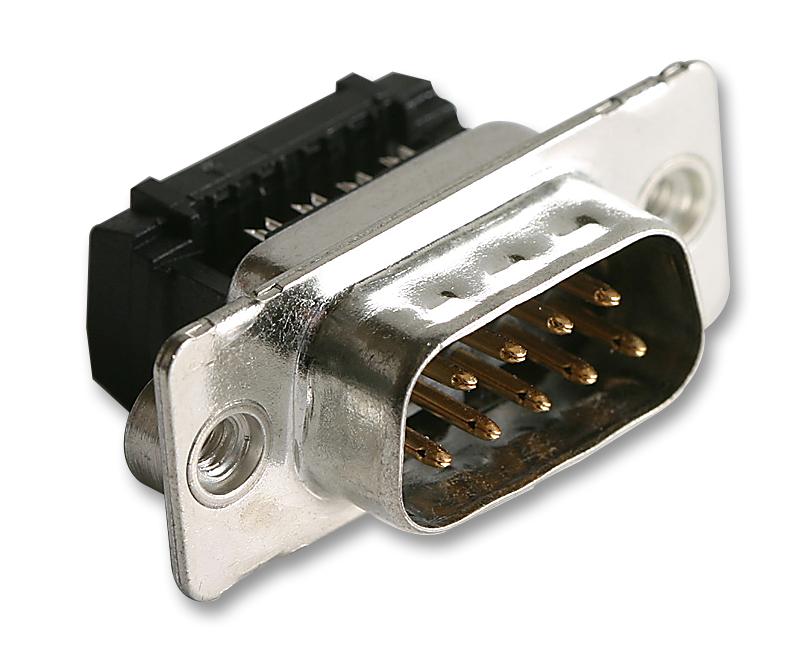

MULTICOMP PRO MH10567 D-sub Connector
The MH10567 is a robust 9-pin threaded D-sub connector designed for reliable electrical connections in industrial and communication applications. It features copper alloy contacts plated with 1.5 microns of tin and 0.2 microns of gold for excellent conductivity and corrosion resistance. The black glass-filled polyester insulator and tin-plated steel shell ensure durability in harsh environments, while the IDC contact termination provides easy, secure wiring. It supports electrical ratings of 1.5A and 1000V, with an insulation resistance of 5000 MΩ, operating from -55°C to +125°C. This versatile connector is compatible with standard back shells and offers optional threaded configurations for secure mounting.
MULTICOMP PRO MH10567 D-sub Connector Specifications:
- Electrical Working Current: 1.5A
- Test Voltage: 1000V
- Insulation Resistance: 5000 MΩ
- Contact Resistance: Less than 10 mΩ
- Temperature Range: -55°C to +125°C
- Contact Material: Copper alloy
- Contact Plating: 1.5 micron Tin and 0.2 micron gold
- Insulator Material: Glass filled polyester black
- Shell Material: Stamped steel, tin plated
- Dimensions: Varies by model, general length approximately 30.8 mm for 9-way
- Mounting: Standard or threaded with optional 4-40 UNC threads
- Design Features: Tin and dimple shells, black insulators, IDC crimp back shell, compatible with standard back shells
Buy the Multicomp 9 Way Plug Threaded U+2013 Reliable Electrical Connectors for Industrial Applications
Enhance your project with the reliable multicomp MH10567 9-pin threaded D-sub connector. Featuring copper alloy contacts with tin and gold plating, an insulated black polyester body, and a durable steel shell, this connector guarantees secure, corrosion-resistant connections. It supports up to 1.5A and 1000V, with high insulation resistance. Its threaded design provides a stable connection, perfect for industrial, networking, and communication applications. Purchase online now to benefit from quick delivery and dependable quality for your critical projects.
Order your multicomp MH10567 threaded 9-pin connector today and ensure secure, durable connections for your industrial communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MH10567?
You can click on the BUY or RFQ button to purchase MH10567 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MH10567?
You can download the MH10567 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MH10567?
MULTICOMP PRO
