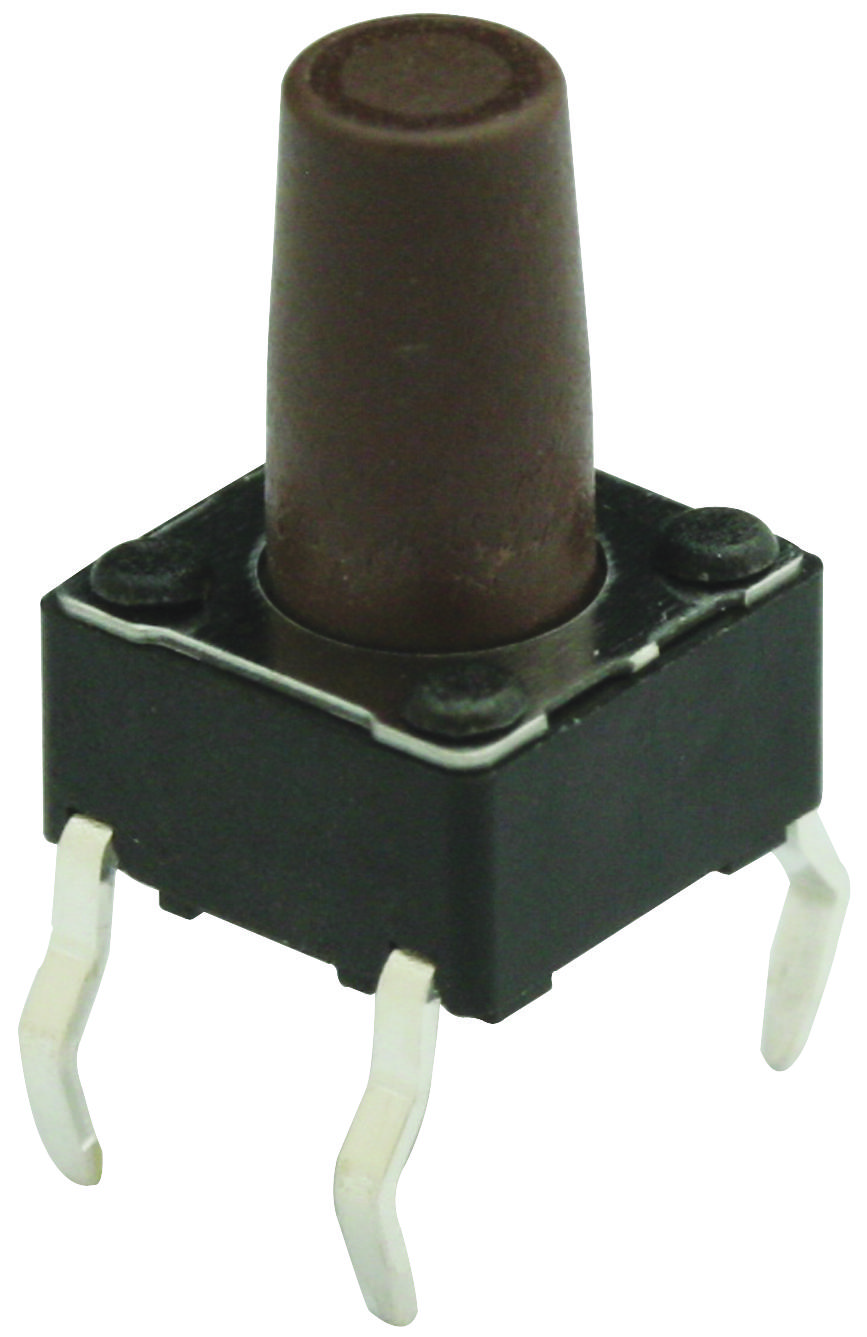

MULTICOMP PRO MC32830 Tactile Switch
This tactile switch from Multicomp Pro features a durable stainless steel cover and contact disc with silver cladding, designed for high reliability in electronic circuits. Operating forces range from 100g to 260g, with electrical life cycles from 200,000 to 1,000,000 depending on the model. It withstands operation temperatures from -25°C to +70°C and storage temperatures from -30°C to +80°C. The switches include high-quality materials like brass terminals and UL94V-0 nylon base and stem, suitable for industrial electronics requiring precise tactile feedback and long-lasting performance.
MULTICOMP PRO MC32830 Tactile Switch Specifications:
- Operating Force: 100g to 260g depending on model
- Electrical Life: 200,000 to 1,000,000 cycles
- Material: Stainless Steel contact disc, brass terminals, UL94V-0 Nylon base and stem
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Contact Resistance: max. 100mΩ
- Insulation Resistance: min. 100MΩ at 500V DC
- Dielectric Strength: 250V AC for 1 minute
- Max Stop Strength: 3kgf vertically
- Stroke: 0.354 ± 0.1mm
- Stop Strength: Max. 3kgf
- Dimensions: 23.50mm x 13mm
- Current Rating: 50mA, 12V DC
- Contact Arrangement: 1 pole 1 throw
Buy the Multicomp Pro MC32830 – Reliable Tactile Switch for Industrial Applications
Purchase the Multicomp Pro tactile switch MC32830 online today to ensure dependable performance and high durability. Designed with stainless steel contact discs and a brass terminal, it offers up to 1,000,000 cycles at 160gf. Operating efficiently within -25°C to +70°C and storing between -30°C to +80°C, it provides consistent tactile feedback for industrial and electronic applications. Simplify your assembly with its compact design, ensuring durable, reliable operation for various demanding environments. Order now for fast delivery and excellent value.
Get Multicomp Pro MC32830 today—built for precision and long-lasting durability in industrial electronics and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32830?
You can click on the BUY or RFQ button to purchase MC32830 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32830?
You can download the MC32830 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32830?
MULTICOMP PRO
