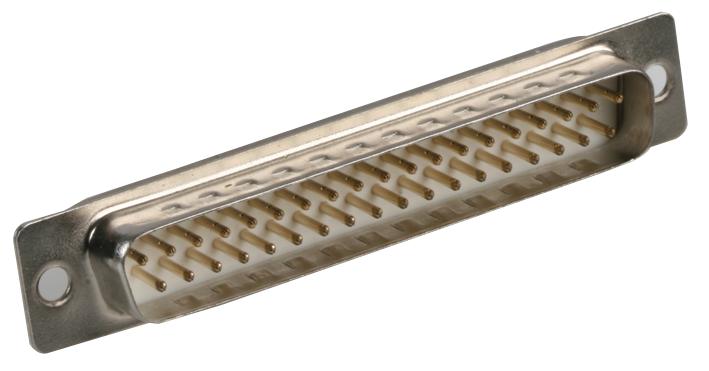

MULTICOMP-PRO 550237PA01F1 D-Sub Connector
The 37-way 5A standard D-subminiature male plug features gold-plated brass contacts for reliable connectivity. It belongs to the 5502 series and is designed with a PBT + 30% glass fiber insulator, suitable for PCB mounting with solder terminals. The connector offers a maximum contact resistance of 5 milliohms, a minimum insulation resistance of 1000 megaohms, and a dielectric withstand voltage of at least 1000VAC for one minute. It operates within a temperature range of -40°C to 100°C and is ideal for various electronic applications. Multicomp Pro products receive positive reviews and are backed by a 12-month limited warranty.
MULTICOMP-PRO 550237PA01F1 D-Sub Connector Specifications:
- Voltage Rating: 350V AC
- Current Rating: 5A
- Dielectric Withstanding Voltage: 500V AC (RMS) for 1 minute
- Insulation Resistance: Over 1,000 Megaohms
- Contact Resistance: 5 milliohms maximum at 1A
- Operating Temperature: -40°C to +100°C
- Insulator Material: PBT +30% glass fibre
- Pin Contacts: Brass, gold plated
- Shell Material: Steel, SPCC nickel plated or tin plated
- Number of Ways: 37
- Dimensions: Length varies, typical dimensions around 55.42mm (A), 63.5mm (B), 69.32mm (C), 11.07mm (D), 15.37mm (E)
Buy the Multicomp Pro 550237PA01F1 – Reliable D-Sub Connector for Industrial Applications
Order the Multicomp Pro D-Sub Connector in 37-way, 5A configuration today and experience high-quality, reliable connections for your electronic projects. Designed with gold-plated brass contacts, a robust PBT insulator, and steel shells, this connector ensures excellent performance in temperatures ranging from -40°C to 100°C. Its compact dimensions make it suitable for PCB mounting, offering low contact resistance and high insulation resistance. Perfect for industrial, instrumentation, and communication equipment, this connector guarantees durability and consistent electrical performance. Purchase online for fast, secure delivery and comprehensive support.
Get Multicomp Pro 550237PA01F1 today—built for precision, durability, and reliable PCB connections in electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 550237PA01F1?
You can click on the BUY or RFQ button to purchase 550237PA01F1 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 550237PA01F1?
You can download the 550237PA01F1 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 550237PA01F1?
MULTICOMP-PRO
