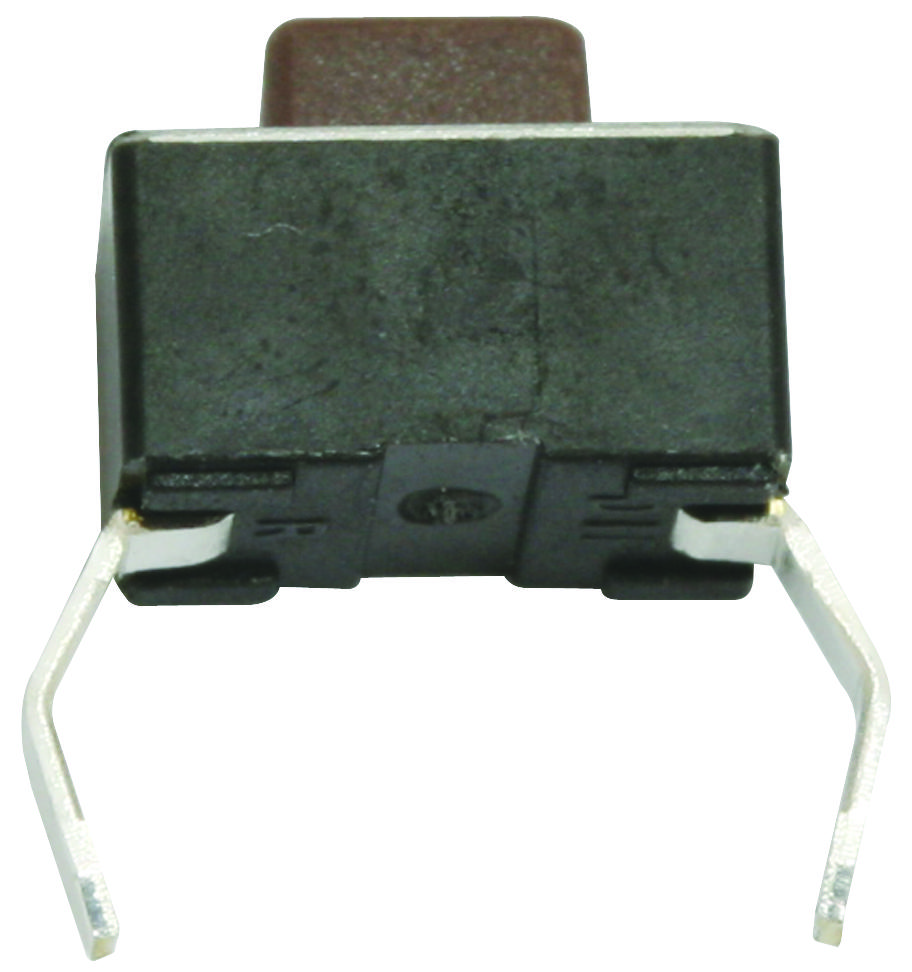

MULTICOMP-PRO MC32857 Tactile Switch
This tactile switch offers reliable switching performance with a compact design suitable for electronic devices and control panels. It features an SPST-NO configuration rated at 50mA and 12V DC, with a durable stainless steel cover and high-temperature nylon base. The switch has an operation force of approximately 2160 ± 50gf and a stroke of about 0.2mm, ensuring responsive activation. Suitable for high-temperature environments from -25°C to +70°C, it boasts a minimum electrical life of 50,000 cycles and conforms to RoHS standards, making it ideal for industrial and consumer electronics.
MULTICOMP-PRO MC32857 Tactile Switch Specifications:
- Operation Force: 2160 ± 50gf
- Stroke: 0.2mm
- Operation Temperature: -25°C to +70°C
- Storage Temperature: 1°C to +80°C
- Electrical Life: 50,000 cycles min.
- Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 250V AC / 1 minute
- Contact Arrangement: 1 pole 1 throw
- Materials: Cover - Stainless Steel; Base - Nylon High-temp Thermoplastic; Contact Disc - Stainless with silver cladding; Terminal - Brass with silver plating
- Dimensions: 7.90 mm x 7.90 mm x 4.0 mm (approximate)
Buy the Multicomp Pro MC32857 – Reliable Tactile Switch for Industrial Applications
Order the high-quality tactile switch from Multicomp Pro online today. Designed for durability and precision, this switch is perfect for industrial control panels, electronic devices, and automation systems. Featuring a 50mA rating and a construction that ensures long life with at least 50,000 cycles, it offers excellent performance across a temperature range of -25°C to +70°C. Easy to install and RoHS compliant, this switch provides the reliability needed for demanding applications. Purchase now and enhance your product’s reliability.
Buy Multicomp Pro MC32857 now and experience unmatched reliability and performance in your electronic projects.
