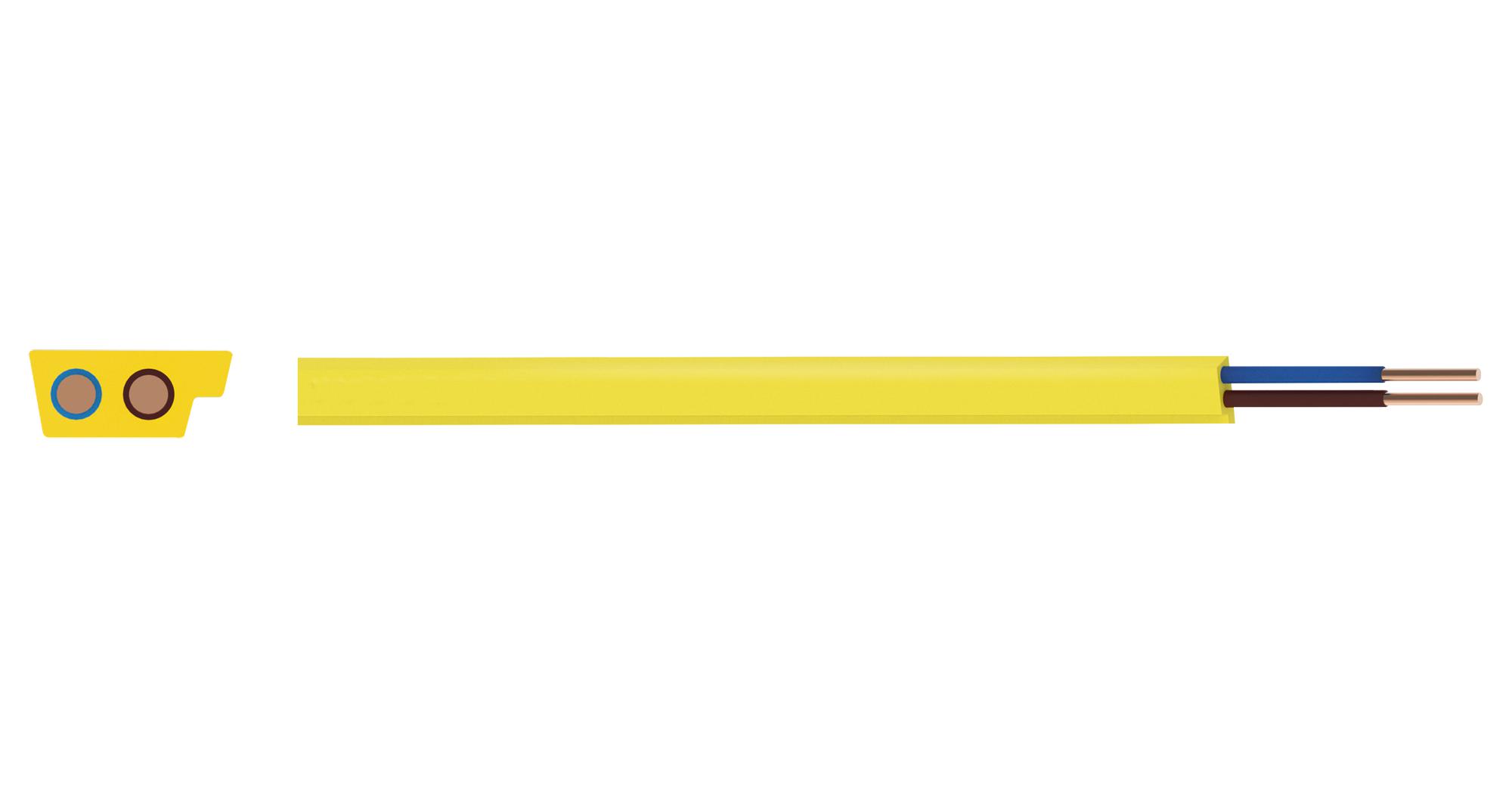

MULTICOMP-PRO PP001549 Industrial multicore cable
This flexible AS-I BUS multicore cable supports simultaneous data and energy transmission, making it ideal for signaling circuits in production facilities and machine tools. Sheathed with flame-retardant, Low Smoke Zero Halogen material, it ensures safety and reliability. The cable features 1.5 mm² conductor cross-section with tinned copper wires, TPE insulation and sheath, and a voltage rating of 300V with test voltage of 2kV. Designed for durability, it withstands temperatures from -40°C to +105°C and complies with DIN EN 60228, IEC standards, and RoHS directives. Available in yellow and black sheath colors, it provides excellent electrical characteristics for industrial automation applications.
MULTICOMP-PRO PP001549 Industrial multicore cable Specifications:
- Voltage Rating: 300V
- Test Voltage: 2kV
- Temperature Rating: Fixed: -40°C to +105°C, Flexed: -30°C to +105°C
- Conductor: Class 6 stranded tinned copper wires
- Insulation & Sheath: TPE (Thermoplastic Elastomer)
- Dimensions: 2 cores, 1.5 mm² conductor cross-sectional area, overall diameter approx. 25 mm
- Sheath Colour: Yellow and Black
- Capacitance at 167kHz: 35 to 45 pF/m
- Inductance at 167kHz: 520 to 700 nH/m
- Impedance at 167kHz: 70 to 140 Ω
- Cable Standards: DIN EN 60228, VDE 0295, IEC 60228, IEC 60811-2-1, IEC 60707
- RoHS & Low Voltage Directive compliant
- Lab Tested: UKAS accredited testing including flame, conductor resistance, tensile & elongation
- Application: Signaling circuits, machine tools, industrial automation, production facilities
Buy the Multicomp Series AS-I BUS: Flexible Multicore Cable PP001549
Purchase the Multicomp Series AS-I BUS multicore cable PP001549 online today to enhance your industrial automation setup. This durable, flame-retardant cable with TPE insulation offers excellent electrical performance with 1.5 mm² conductors, suitable for signaling and energy transfer applications. RoHS compliance guarantees safety and environmental responsibility. Designed for reliable operation in temperatures from -40°C to +105°C, it’s ideal for machine tools, production lines, and automation systems. Get quality, safety, and compliance in a single cable—order now for fast delivery.
Order your Multicomp Series AS-I BUS multicore cable PP001549 today and ensure reliable data and energy transmission for your industrial automation needs.
