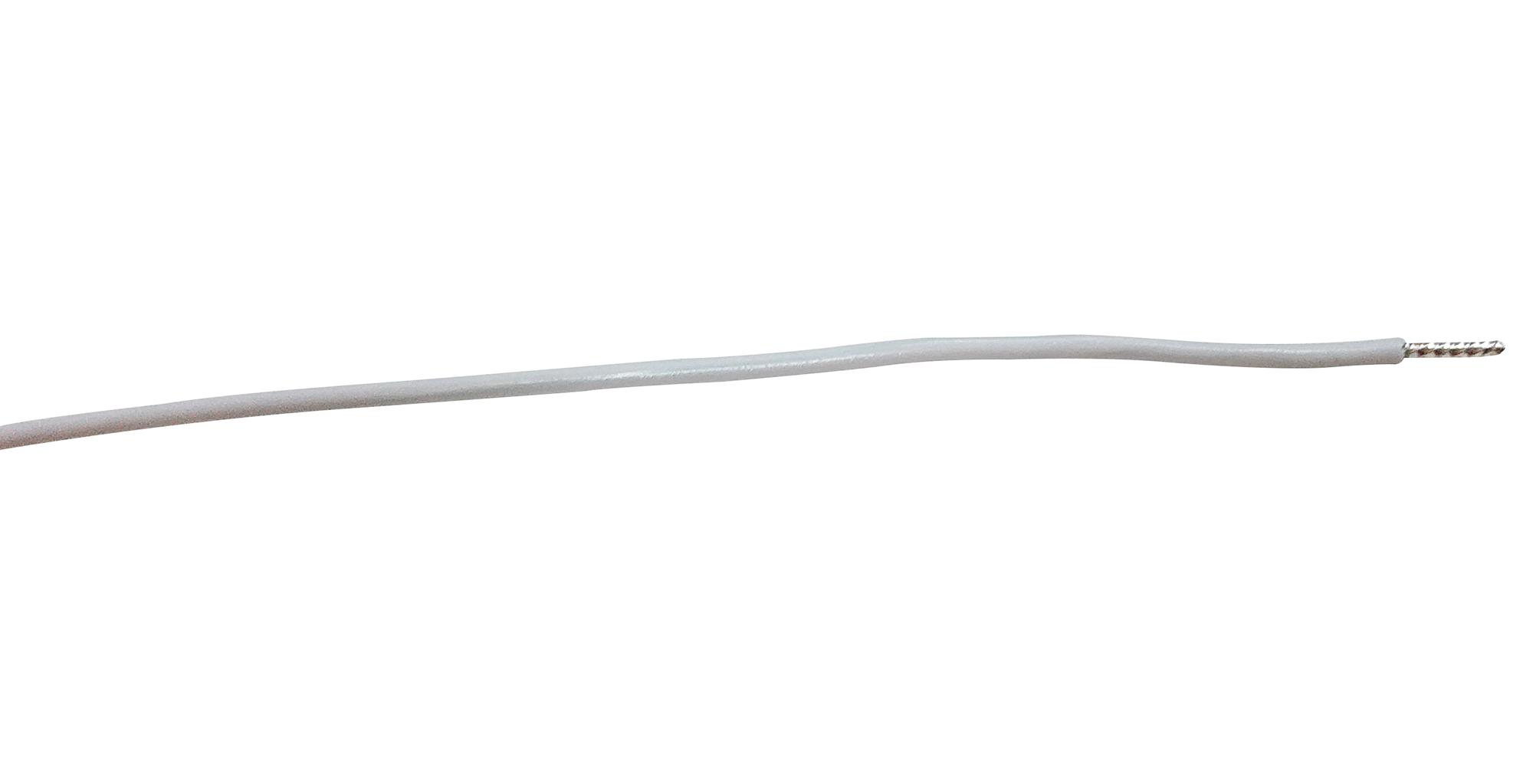

MULTICOMP-PRO PP002604 Stranded Hook-Up Wire
Pro-Power UL1061 style stranded hook-up wire features flexible stranded tinned copper conductors with robust SR PVC insulation, rated for high temperatures up to 280°C and voltage up to 300V. This versatile wire is suitable for electronic and electrical applications, offering excellent resistance and durability. Available in various gauges from 18 to 26 AWG, it comes in 305-meter reels or per meter. Designed for reliability, it meets UL recognition standards, making it ideal for wiring and harnesses requiring high temperature and safety compliance. Suitable for industrial, control, and electronic projects.
MULTICOMP-PRO PP002604 Stranded Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: 305 meters reel or per meter
- Conductor Size: 18 AWG (34/0.18 mm), 20 AWG (21/0.18 mm), 22 AWG (17/0.16 mm), 24 AWG (11/0.16 mm), 26 AWG (7/0.16 mm)
- Conductor Resistance: 23.2 Q/kM (18 AWG), 36.7 Q/kM (20 AWG), 59.4 Q/kM (22 AWG), 94.2 Q/kM (24 AWG), 150 Q/kM (26 AWG)
- Insulation Diameter: 1.8 mm (18 AWG), 1.5 mm (20 AWG), 1.25 mm (22 AWG), 1.15 mm (24 AWG), 1.0 mm (26 AWG)
Buy the Buy UL1061 Style Stranded Hook-Up Wire Part Number PP002604 Online
Order UL1061 style stranded hook-up wire online and ensure high-quality electrical connections for your projects. This flexible wire features tinned copper conductors with durable SR PVC insulation, rated for temperatures up to 280°C and voltage of 300V. Available in gauges from 18 to 26 AWG in 305-meter reels or per meter, it is suitable for electronic, control, and industrial wiring. Trust this UL-recognized wire for safety, reliability, and excellent performance in demanding environments. Purchase today for fast delivery and consistent quality.
Get UL1061 stranded hook-up wire today—built for high-temperature resilience and dependable electrical performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002604?
You can click on the BUY or RFQ button to purchase PP002604 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002604?
You can download the PP002604 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002604?
MULTICOMP-PRO
