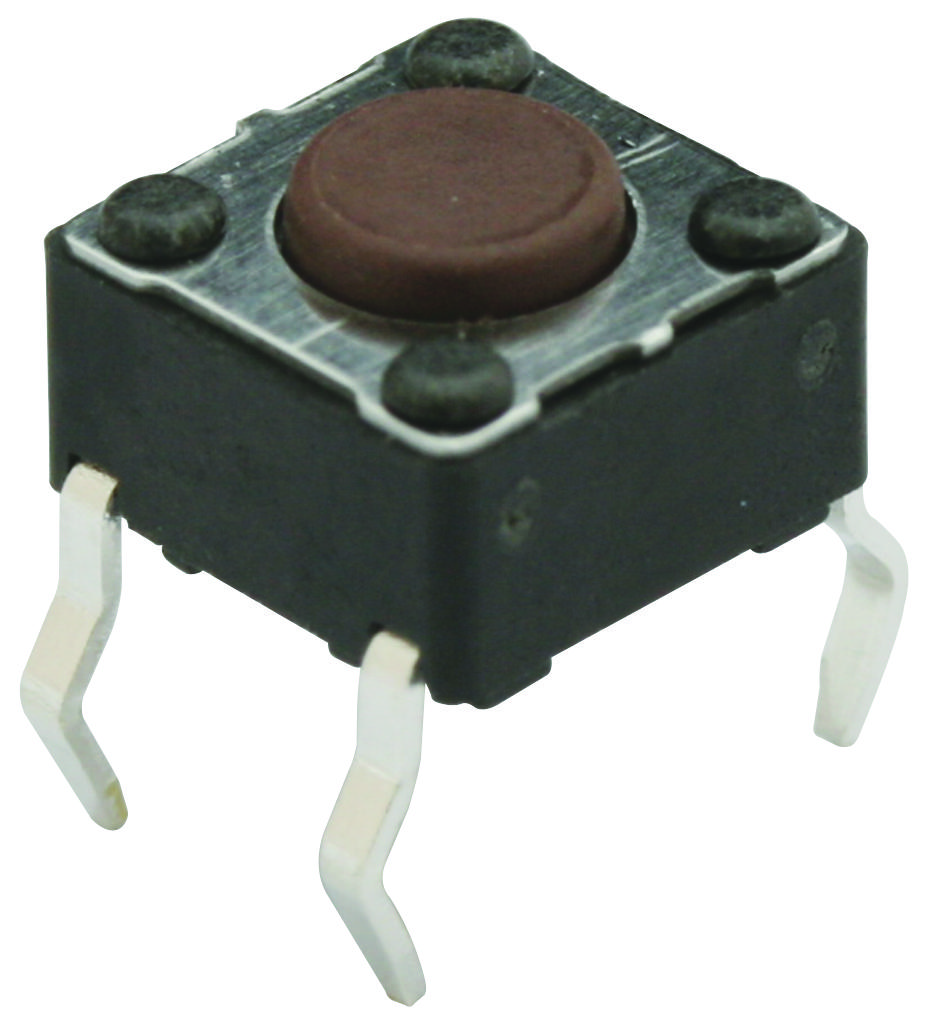

MULTICOMP-PRO MC32861 Tactile Switch
Multicomp Pro tactile switches provide reliable actuation with a long electrical life, featuring stainless steel dome material and multiple force options from 100gf to 260gf. Suitable for applications requiring durable, high-quality momentary switches, these tactile buttons operate within -25°C to +70°C temperatures and are rated at 50mA, 12V DC. Their compact design with dimensions around 4.3mm to 13mm makes them ideal for electronic assemblies and control panels, ensuring excellent performance in demanding environments with an emphasis on durability and precision.
MULTICOMP-PRO MC32861 Tactile Switch Specifications:
- Operation Force: 100gf to 260gf
- Color: Black, Brown, Red
- Electrical Life: 200,000 to 1,000,000 Cycles
- Dome Material: Stainless Steel or Phosphor Bronze
- Stop Strength: Max. 3kgf vertical static load for 15 seconds
- Stroke: 0.3540.1mm
- Temperature Range: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MR min at 500V DC
- Dielectric Strength: 250V AC / 1 min
- Contact Arrangement: 1 pole 1 throw
- Material: Cover - Stainless Steel; Contact Disc - Stainless Steel with Silver Cladding; Terminal - Brass with Silver Plated; Base and Stem - UL94V-0 Nylon
Buy the Multicomp Series Tactile Switches: MC32861
Purchase the Multicomp MC32861 tactile switch online today to ensure reliable performance in your electronic assemblies. These high-quality switches feature stainless steel domes, options for diverse actuation forces, and exceptional electrical life ratings of up to 1,000,000 cycles. Ideal for control panels, consumer electronics, and industrial equipment, their compact design and durable materials provide long-lasting reliability even under demanding conditions. Get yours now and enhance your device’s precision, durability, and operational efficiency with ease.
Buy Multicomp MC32861 tactile switch now and experience unparalleled durability, long electrical life, and high-precision actuation for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC32861?
You can click on the BUY or RFQ button to purchase MC32861 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32861?
You can download the MC32861 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC32861?
MULTICOMP-PRO
