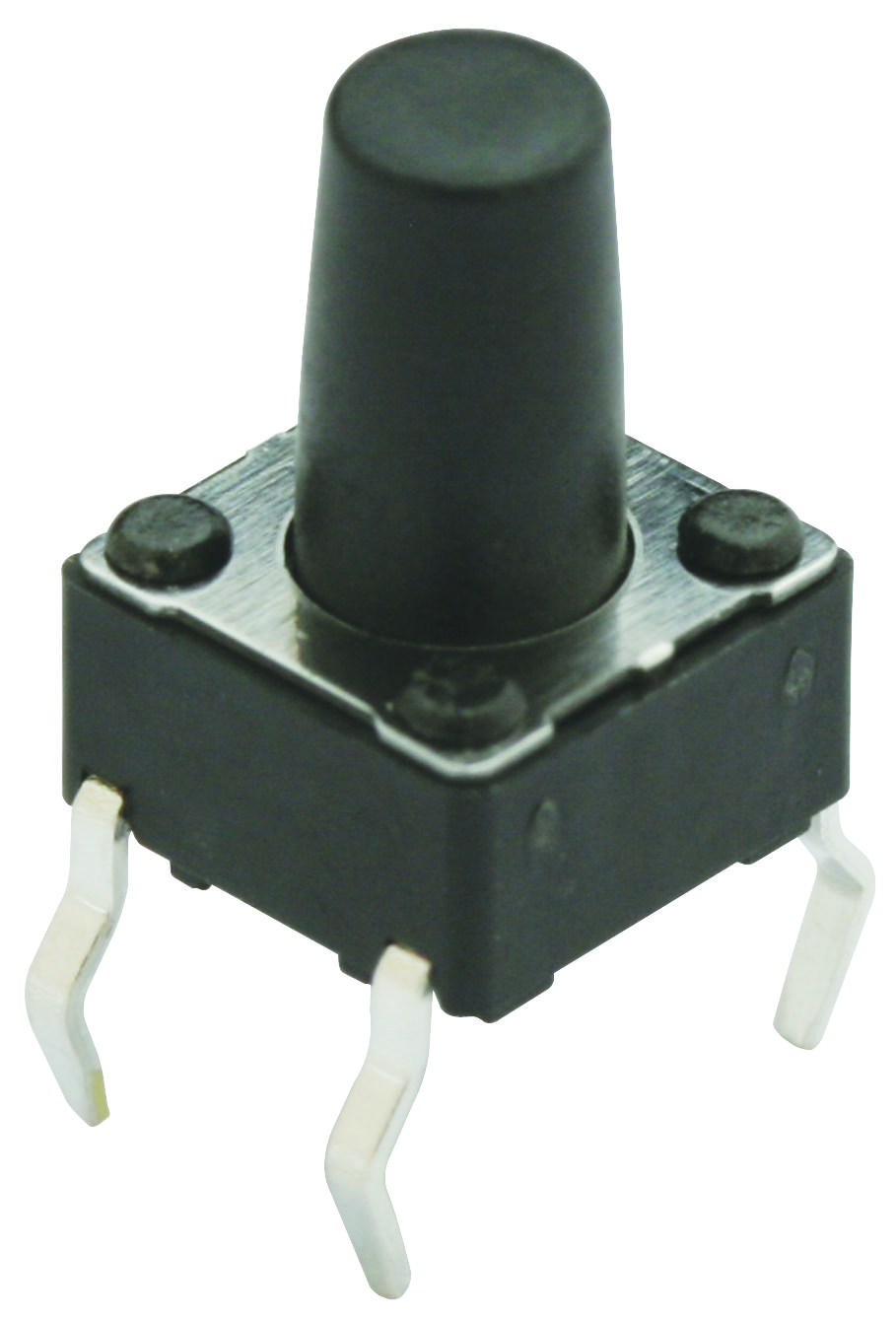

MULTICOMP PRO MC32867 Tactile Switch
Multicomp Pro tactile switch with stainless steel construction, rated for 1,000,000 cycles, available in black, brown, and red colors, operating forces from 100gf to 260gf, suitable for industrial and electronic control applications. Features include a compact size, high durability, and excellent electrical performance with a contact resistance of 100mΩ max., dielectric strength of 250V AC, and insulation resistance of 100MQ min. The selection of dome materials includes stainless steel and phosphor bronze, making it ideal for reliable operation in demanding environments.
MULTICOMP PRO MC32867 Tactile Switch Specifications:
- Operating Force: 100g to 260g depending on model
- Electrical Life: 200,000 to 1,000,000 cycles
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MQ min. at 500V DC
- Dielectric Strength: 250V AC / 1 minute
- Materials: Stainless steel, phosphor bronze, nylon
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Terminal Material: Brass with silver plating
- Cover Material: Stainless steel
- Stroke: 0.3540.1mm
- Stop Strength: Max. 3kgf vertical static load
- Dimensions: 13mm diameter, various heights (consult datasheet)
Buy the Multicomp Reliable Switch for Industrial Applications
Secure your electronic projects with the highly reliable tactile switch from Multicomp Pro. Designed with stainless steel and phosphor bronze contacts, it offers up to 1 million cycles of operation, ensuring longevity and performance. Suitable for industrial applications, this switch features a compact size, high electrical resistance, and excellent mechanical durability. Whether for control panels or automation systems, purchase online now to enjoy fast delivery, competitive prices, and trusted quality that keeps your projects running smoothly and efficiently.
Order your Multicomp SeriesMC32867 reliable tactile switch today and ensure your electronic projects benefit from high durability and long-lasting performance.
