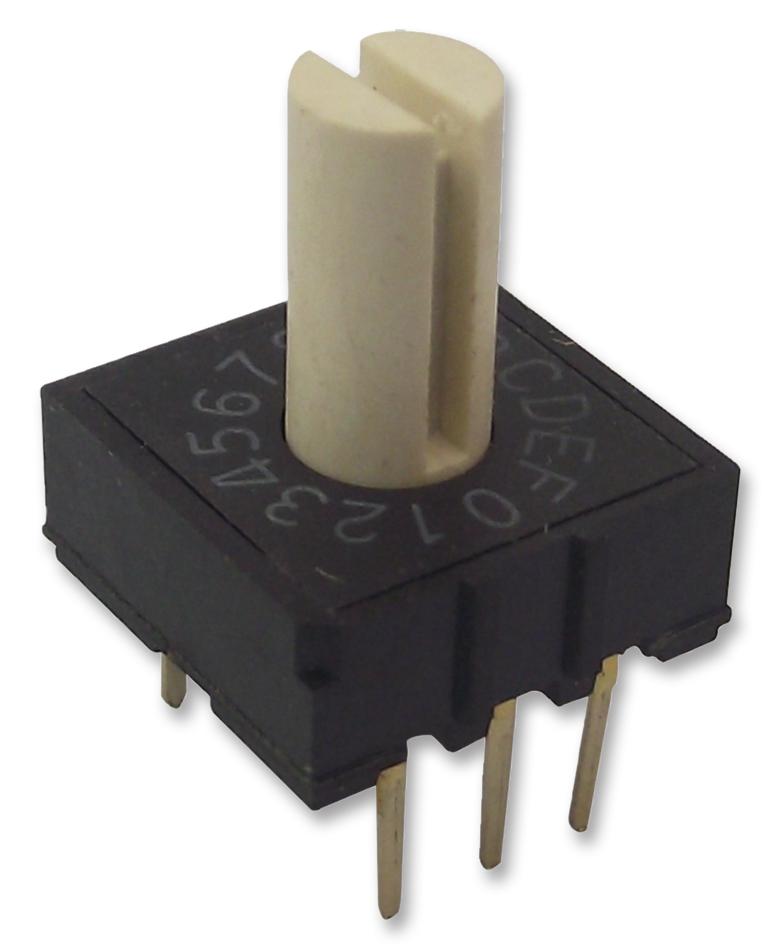

MULTICOMP-PRO MCRH2HAF16RVB Rotary Switch
The rotary switch series offers versatile multi-position configurations suitable for various electronic and industrial control applications. Constructed with UL94V-0 high-temp thermoplastic, these switches withstand temperatures from -25°C to +80°C and feature gold-plated contacts for reliable conductivity. Designed with long mechanical and electrical life spans of 20,000 operations, they support rated currents of 100mA, 50V DC and 24V DC, 25mA. Suitable for through-hole and surface-mount applications, they provide durable performance and high insulation resistance suitable for demanding environments.
MULTICOMP-PRO MCRH2HAF16RVB Rotary Switch Specifications:
- Material: UL94V-0 high-temp thermoplastic
- Mechanical Life: 20,000 steps
- Operating Temperature: -25°C to +80°C
- Contact Material: Alloy Copper with Gold Plated over Nickel
- Electrical Life: 20,000 steps
- Non-Switching Rating: 100mA, 50V DC
- Switching Rating: 24V DC, 25mA
- Contact Resistance: 100mΩ initial, 200mΩ final
- Insulation Resistance: 100MΩ min. at 250V DC
- Voltage Proof: 250V AC for 1 minute
- Dimensions: Various sizes with general tolerances ±0.2mm
- Soldering: Hand, wave, or reflow soldering compatible
Buy the Buy Multicomp Rotary Switch Part Number MCRH2HAF16RVB Online
Purchase your Multicomp Rotary Switch MCRH2HAF16RVB online today for dependable control in industrial and electronic applications. Featuring UL94V-0 high-temp thermoplastic construction, it offers robust durability for demanding environments. With a mechanical life of 20,000 cycles, gold-plated contacts ensure consistent conductivity and corrosion resistance. Supports rated currents up to 100mA, 50V DC and 24V DC, 25mA. Ideal for through-hole assembly, it provides high insulation resistance and reliable performance across a temperature range of -25°C to +80°C. Easy to solder via hand, wave, or reflow methods, ensuring quick installation and long-lasting operation.
Order your Multicomp Rotary Switch MCRH2HAF16RVB today and enhance your control system with reliable high-temperature rated switching solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCRH2HAF16RVB?
You can click on the BUY or RFQ button to purchase MCRH2HAF16RVB from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRH2HAF16RVB?
You can download the MCRH2HAF16RVB datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCRH2HAF16RVB?
MULTICOMP-PRO
