MULTICOMP PRO MC34645 4-Way Square Pin Header

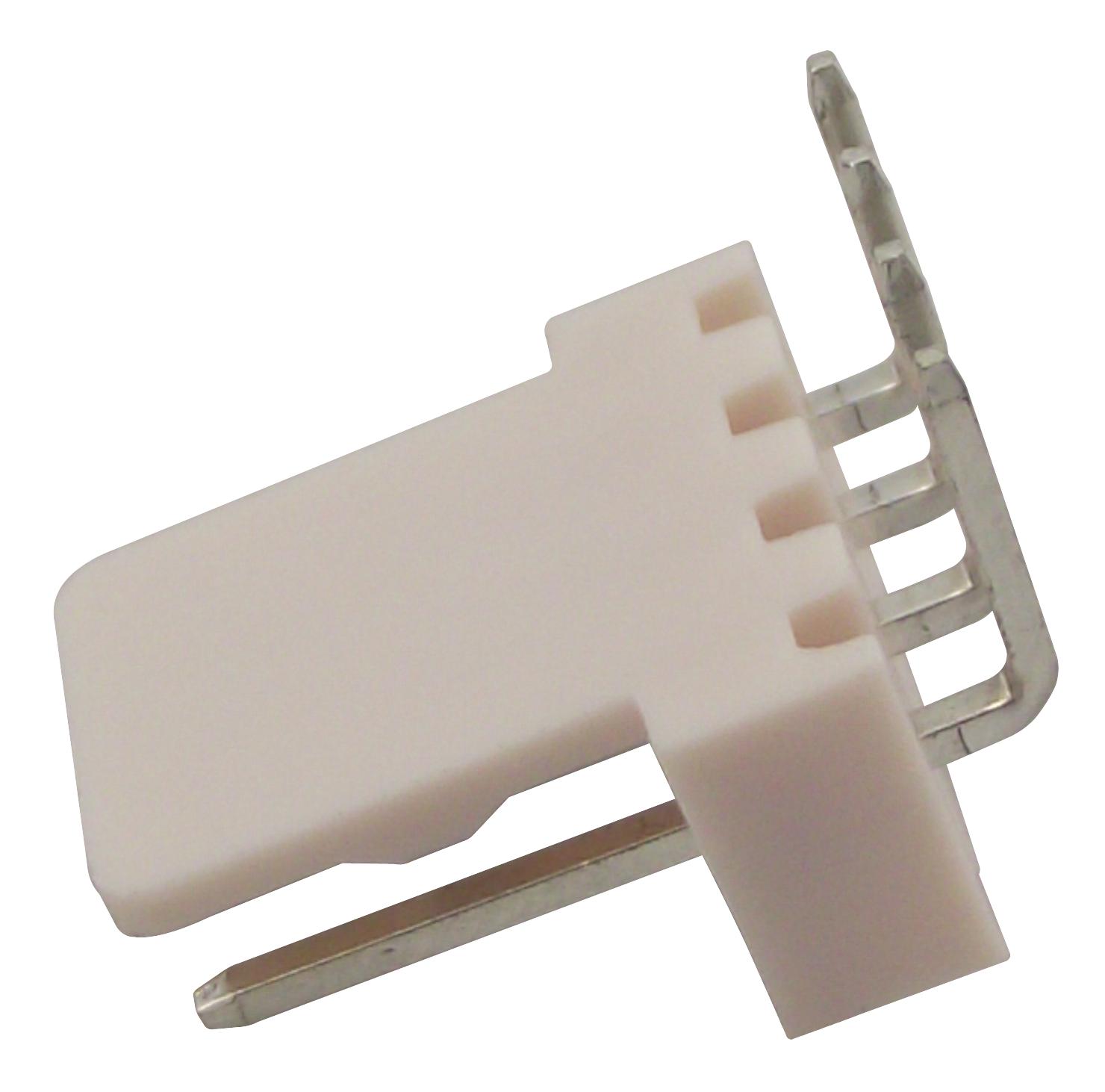

The MC34645 is a 4-way square pin header designed for wire-to-board connections. It features tin-plated brass contacts and a beige high-temperature plastic insulator made from nylon 66. The connector provides a maximum contact resistance of 20 micro-ohms, a minimum insulation resistance of 1000 mega-ohms, and can withstand 1000 volts AC for one minute. It operates within a temperature range of -40°C to +105°C. Suitable for industrial applications, this part is rated highly with positive customer feedback and includes a 12-month limited warranty.
MULTICOMP PRO MC34645 4-Way Square Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,000V AC/minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temperature Plastic (nylon 66)
- Insulator Colour: Beige
- Contact Material: Brass
- Plating: Tin Plated
- Contact Type: Square Pin
- Connector Style: Right Angle
- Number of Ways: 4
- Pin Spacing: 2.54mm
- Dimensions: Length 7.62mm, Width 10.16mm, Height 12.7mm
- Suitable for industrial wiring and electronic applications
Buy the Buy Multicomp Pro 2.54mm 4-Way Square Pin Header Part Number MC34645 Online
Purchase the Multicomp Pro 4-Way Square Pin Header MC34645 online today. This high-quality connector features tin-plated brass contacts, a durable nylon 66 insulator, and a compact design for efficient wire-to-board connections. With a current rating of 3A and voltage rating of 250V, it withstands harsh environments with a temperature range of -40°C to +105°C. Ideal for industrial electronics, this header offers dependable performance, robust insulation, and quick installation. Buy now for guaranteed reliability and easy integration into your circuit designs.
Order your Multicomp Pro 4-Way Square Pin Header MC34645 today and ensure reliable wire-to-board connections in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34645?
You can click on the BUY or RFQ button to purchase MC34645 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34645?
You can download the MC34645 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34645?
MULTICOMP PRO
