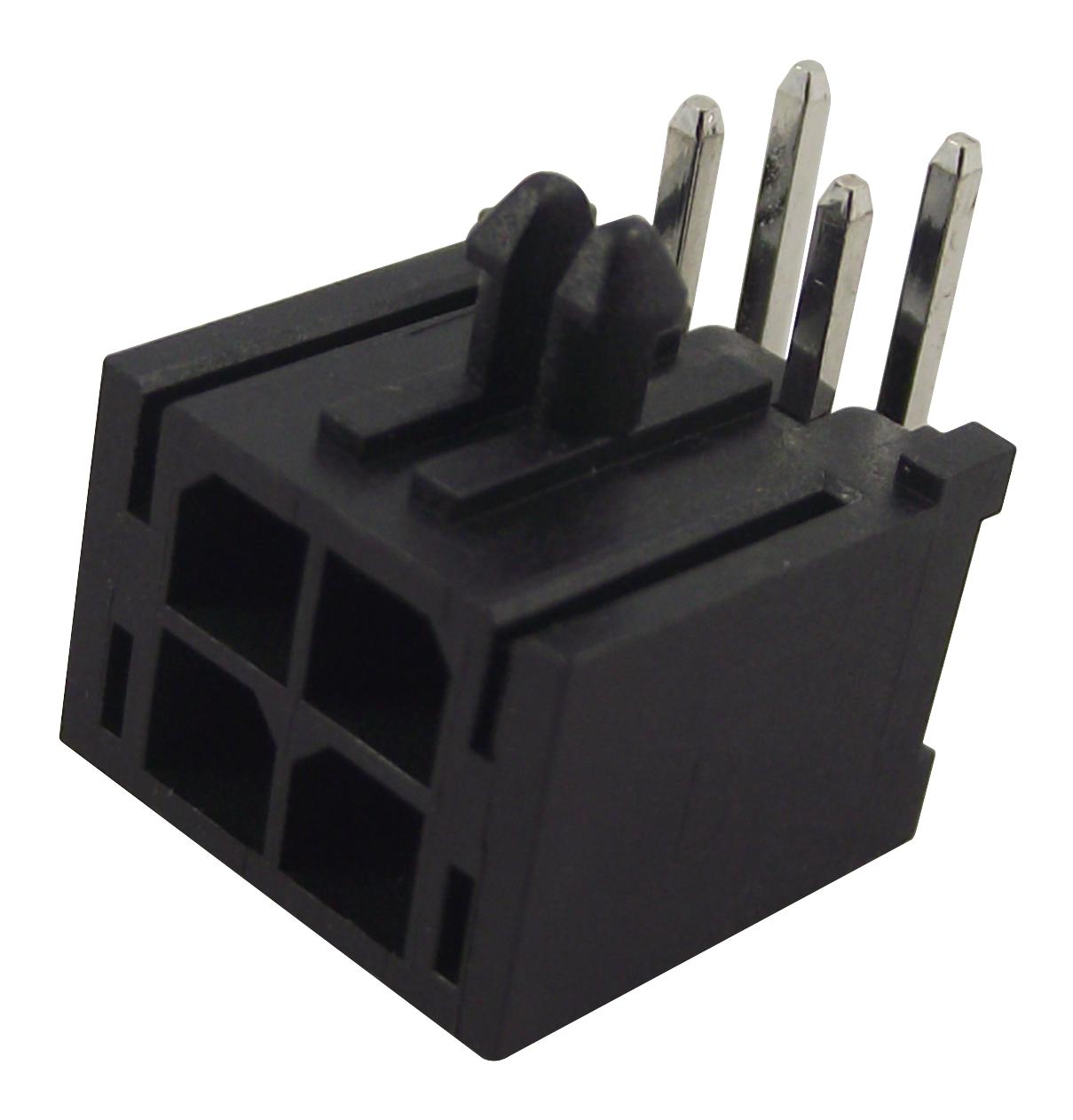

MULTICOMP PRO MC34717 Double Row Headers
The 2261 series 3mm pitch double row headers are right angle, through hole connectors designed for reliable PCB connections. Made with nylon 46 insulators and tin-plated copper contacts, these headers support up to 5.0A current and 250V ratings. They feature an operating temperature range from -25°C to +105°C, with high insulation resistance and withstand voltage capabilities. Suitable for various electronic applications, they provide easy installation with precise dimensions and robust construction for durable connections in industrial, automation, and electronic systems.
MULTICOMP PRO MC34717 Double Row Headers Specifications:
- Current Rating: 5.0A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: > 10mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -25°C to +105°C
- Material and Finish: Nylon 46 (UL94V-2), Copper Alloy Tin Plated
- Dimensions: Model MC34337 - Length 6.7mm, Width 2.9mm; MC34717 - Length 9.7mm, Width 3mm; MC34339 - Length 12.7mm, Width 2.9mm; MC34341 - Length 15.7mm, Width 9mm
- Application: PCB Header, Through Hole, Right Angle, Industrial Equipment
Buy the Multicomp Series 2261 3mm Pitch Double Row Headers: MC34717
Purchase the high-performance Double Row Headers from Multicomp Pro online today. These 3mm pitch, right angle, through hole connectors are ideal for PCB assembly in industrial equipment and electronics. Crafted with nylon insulators and tin-plated copper contacts, they support up to 5A current and 250V voltage. Easy to install with precise dimensions, they deliver durability and electrical reliability in a compact design, making them perfect for demanding electronic projects and manufacturing needs.
Buy Multicomp 2261 MC34717 now and experience reliable, high-quality PCB connections for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34717?
You can click on the BUY or RFQ button to purchase MC34717 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34717?
You can download the MC34717 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34717?
MULTICOMP PRO
