MULTICOMP PRO MC34937 HDMI connector header
The MC34937 is a 19-way, two-row, 0.5mm pitch, right-angle HDMI connector header with a flange. It features gold-over-nickel plated copper alloy contacts and high-temperature thermoplastic insulation. This PCB mount connector has through-hole solder terminals suitable for multimedia and industrial applications. It is rated for 7A current, 250V voltage, an insulation resistance of 1000MΩ, contact resistance of 10mΩ, and operates within a temperature range of -40°C to +105°C. Ideal for use in consumer electronics, professional AV systems, and industrial equipment requiring reliable HDMI connectivity.
MULTICOMP PRO MC34937 HDMI connector header Specifications:
- Connector Type: Receptacle
- Gender: HDMI
- Contact Termination: Through Hole
- Connector Mounting: PCB
- Colour: Black
- Contact Resistance: 10mΩ
- Current Rating: 7A
- Insulation Resistance: 1000MΩ
- Insulator Material: High Temperature Thermoplastic
- Lead Spacing: 0.5mm
- No. of Rows: 2
- No. of Ways: 19
- Operating Temperature: -40°C to +105°C
- Pitch Spacing: 0.5mm
- Termination Method: Solder
- Voltage Rating: 250V AC
- Withstand Voltage: 1500V
- Material - Housing & Cover: Nylon 6.6
- Material - Contact: Copper Alloy
- Contact Plating: Gold over Nickel, Tin plating on solder tails
- Shell Plating: Not specified
- RoHS: Compliant

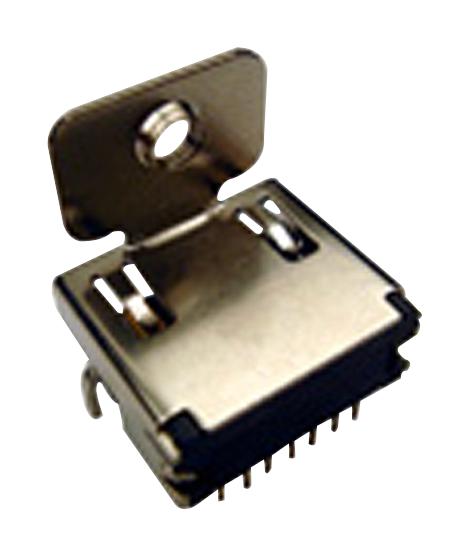

Buy the Buy multicomp HDMI Header Part Number MC34937 Online
Enhance your electronic projects with the high-quality HDMI connector header from multicomp. Featuring a 19-way, two-row design and a 0.5mm pitch, this through-hole, right-angle connector with flange ensures secure mounting and reliable signal transmission. Gold-plated contacts over nickel provide excellent connectivity and corrosion resistance, ideal for multimedia, industrial, and professional AV systems. Rated for 7A and 250V, it operates from -40°C to +105°C, ensuring performance in diverse environments. Easy to solder, durable, and compliant with RoHS standards, this connector is perfect for demanding applications requiring stable HDMI connections.
Buy multicomp MC34937 now and experience unmatched reliability and high-performance HDMI connectivity for multimedia and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34937?
You can click on the BUY or RFQ button to purchase MC34937 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34937?
You can download the MC34937 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34937?
MULTICOMP PRO
