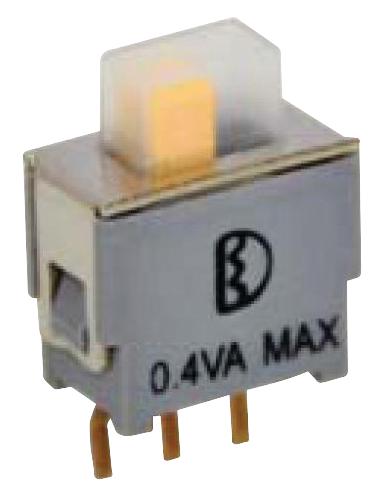

MULTICOMP PRO MC5SES1S105M2RES Miniature Slide Switch
Miniature slide switches with IP67 protection rating designed for PCB mounting applications. These SPDT and DPDT switches feature ON-NON-ON and ON-OFF-ON functions, with epoxy-sealed terminals for durability. Suitable for environments requiring resistance to dust and water, they support wave or vapor phase soldering processes, and operate within -20°C to 80°C temperature ranges. The switches use brass or phosphor bronze contact materials, are RoHS compliant, and are ideal for industrial automation, control systems, or electronic equipment needing reliable, compact switching solutions with high durability.
MULTICOMP PRO MC5SES1S105M2RES Miniature Slide Switch Specifications:
- Maximum Contact Rating: 0.4V A at 48 V AC/DC
- Mechanical Life: 40,000 operations
- Contact Resistance: 50 mΩ
- Insulation Resistance: 500 MΩ at 250 V DC
- Dielectric Strength: 500 V, 50 Hz for 1 minute
- Operating Temperature: -20°C to 80°C
- Protection Degree: IP67
- Housing Material: PBT, yellow standard; washable
- Terminal Seal: Epoxy
- Contact Material: Brass, tin plated; Phosphor bronze, gold-plated
- Soldering: Wave soldering recommended at 260°C for max 5 seconds
- Mounting: PCB
- Switch Functions: SPDT, DPDT, ON-NON-ON, ON-OFF-ON
- Pole Options: Single Pole Double Throw (SPDT), Double Pole Double Throw (DPDT)
Buy the Multicomp Series Miniature Slide Switches: MC5SES1S105M2RES
Order Multicomp's IP67 miniature slide switches today for dependable performance in harsh environments. These PCB-mounted switches feature epoxy-sealed terminals, robust contact materials, and multiple switch functions like SPDT and DPDT. Designed for durability, they withstand temperature ranges from -20°C to 80°C and support wave or vapor phase soldering. Perfect for control panels, automation, and electronic equipment, they deliver long-lasting, high-quality switching performance in compact forms essential for demanding industrial and electronic applications.
Buy Multicomp miniature IP67 slide switches now and enjoy reliable, waterproof switching solutions ideal for industrial and electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC5SES1S105M2RES?
You can click on the BUY or RFQ button to purchase MC5SES1S105M2RES from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC5SES1S105M2RES?
You can download the MC5SES1S105M2RES datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC5SES1S105M2RES?
MULTICOMP PRO
