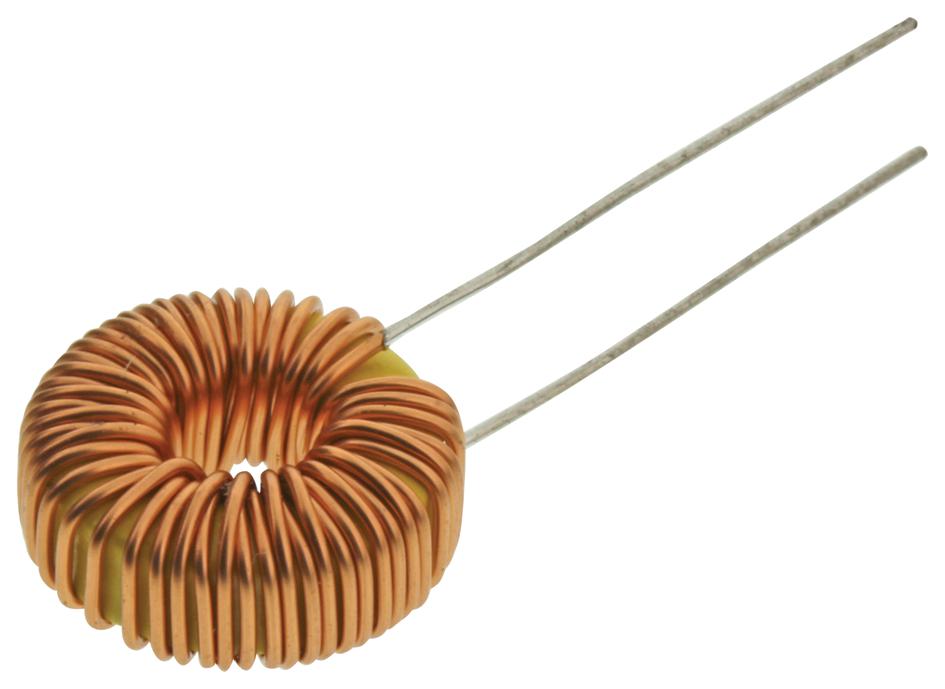

MULTICOMP PRO MCAP103726044A680MU power inductor
This high-performance inductor is designed for electronic applications requiring stable inductance and reliable operation at high temperatures. It features a 68 microhenry (uH) inductance with a ±20% tolerance, a maximum DCR of 100 milliohms, and withstands operating temperatures from -55°C to +130°C. Constructed with a 137-75-TAF200 core and 0.4mm UEFNIU wire, it offers excellent electrical characteristics, including low DCR and high current capacity, suitable for power supplies, filtering, and energy storage in advanced electronic systems.
MULTICOMP PRO MCAP103726044A680MU power inductor Specifications:
- Inductance: 68uH ±20%
- DCR: Maximum 100mΩ
- Operating Temperature Range: -55°C to +130°C
- Core Material: 137-75-TAF200 (Red / White)
- Wire Diameter: 0.4mm UEFNIU
- Solder Material: Lead-free Sn99.3% / Cu0.7%
- Test Frequency: 40kHz
- Test Current: 0.8A Irms
- Test Conditions: 25°C, 60°C/60% RH humidity, 8hr steam aging
- Dimensions (Max): Length 12mm, Width 5.5mm, Height approx. 15mm
- Temperature Rise: 40°C Max during operation
- RoHS Compliant
- Durability: Tested for moisture sensitivity, solderability, and reliability
Buy the Buy Multicomp Pro Inductor Part Number MCAP103726044A680MU Online
Purchase the Multicomp Pro power inductor online today and enjoy fast delivery, genuine quality, and exceptional performance. Designed for high-temperature environments, this 68uH inductor offers low DCR, robust construction, and excellent electrical characteristics, making it perfect for power supplies, filtering, and energy storage in various electronic devices. Its durability and RoHS compliance ensure it meets industry standards, providing you with a dependable component for demanding industrial and consumer applications. Order now to enhance your electronic designs with confidence.
Buy Multicomp Pro MCAP103726044A680MU inductor now and benefit from reliable performance and high-temperature endurance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCAP103726044A680MU?
You can click on the BUY or RFQ button to purchase MCAP103726044A680MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCAP103726044A680MU?
You can download the MCAP103726044A680MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCAP103726044A680MU?
MULTICOMP PRO
