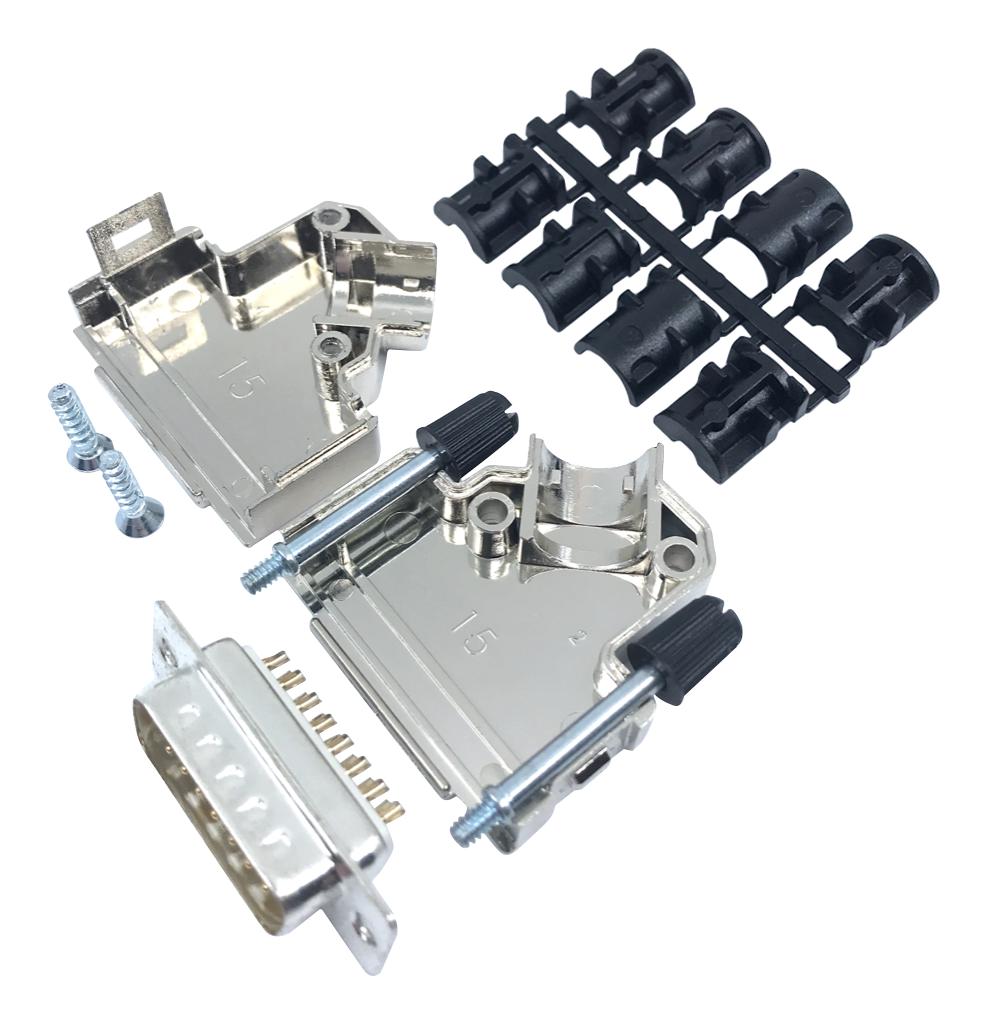

MULTICOMP PRO MP002055 D-Sub Connector with Backshell
This D-Sub connector with backshell is designed for reliable electrical connections in industrial and communication applications. It features a durable metalized plastic shell, angled cable outlet, and acceptance of round foil and braided cables. The backshell minimizes electromagnetic interference and RF noise, with noise attenuation over 40 dB between 30 MHz and 1 GHz. It supports a temperature range from -55°C to +105°C, with self-tapping assembly screws, long UNC 4-40 jackscrews, and a cable diameter capacity of 3mm to 13mm. Suitable for high-density signal transmission, it ensures secure and interference-free connections.
MULTICOMP PRO MP002055 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated steel shell, PBT insulator
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long UNC 4-40 threads, self-tapping assembly screws
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
- Jackscrew Colour: Black
- Stamped Contacts: Class 3, 100 minimum inserts
- Contact Pins: Copper alloy with gold over nickel plating
Buy the Buy Multicomp D-Sub Connector with Backshell Part Number MP002055 Online
Enhance your electronic systems with this high-quality D-Sub connector featuring robust construction, reliable connections, and excellent noise suppression. Ideal for industrial, automation, and communication applications, it ensures secure and interference-free signals with a durable, corrosion-resistant shell and easy assembly. The angled cable outlet simplifies installations, and its compatibility with round foil and braided cables makes it versatile. Achieve superior electrical performance and long-term durability by ordering this essential connector today, available easily online for quick delivery and installation.
Get Multicomp D-Sub Connector with Backshell MP002055 today—designed for high-performance, RF shielding, and reliable industrial signal transmission.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002055?
You can click on the BUY or RFQ button to purchase MP002055 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002055?
You can download the MP002055 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002055?
MULTICOMP PRO
