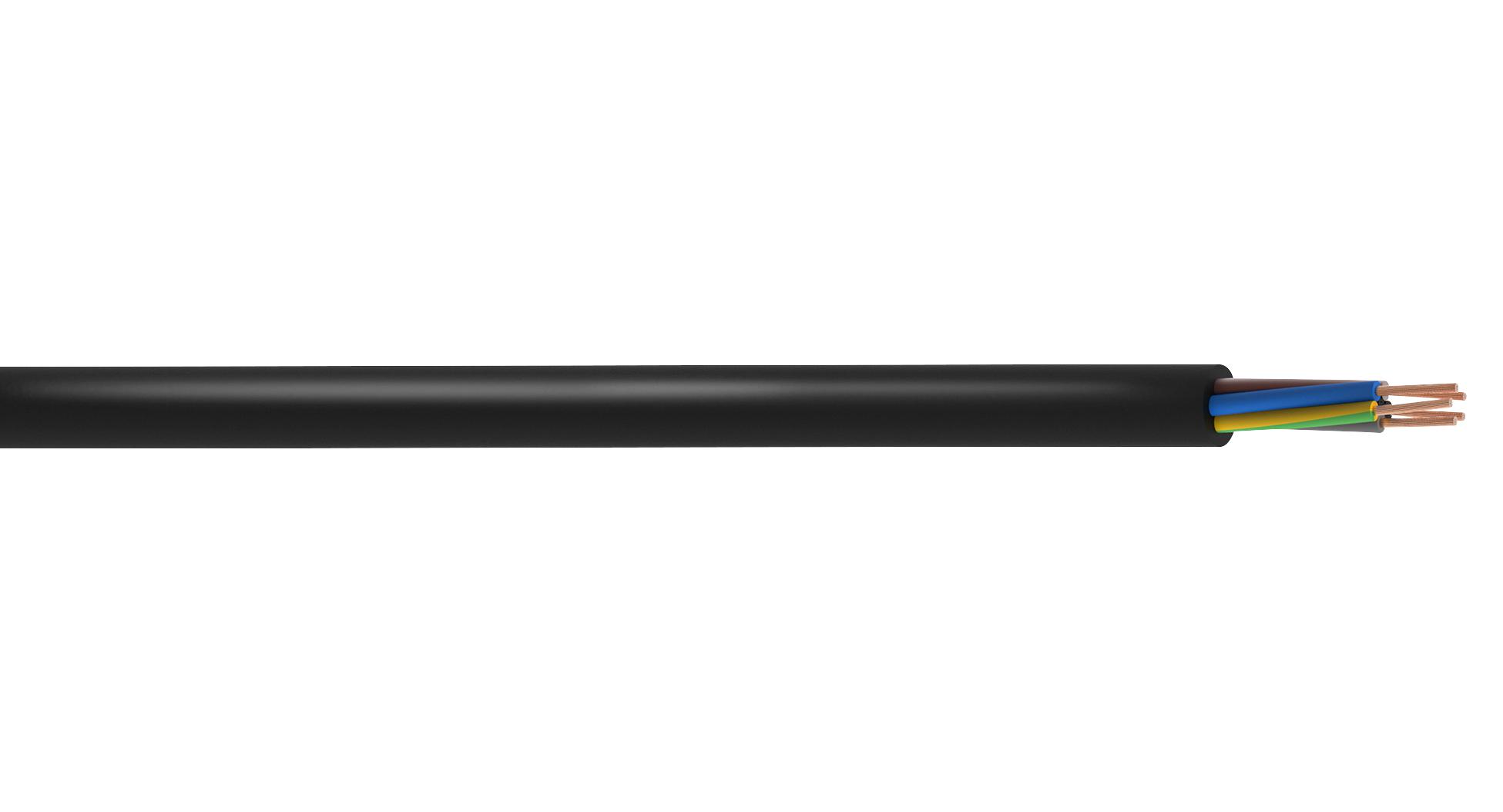

MULTICOMP PRO PP002149 Flexible Rubber Power Cable
Flexible rubber cable designed for high flexibility and capable of withstanding weather, oils, grease, mechanical and thermal stresses. Suitable for handling equipment, mobile power supplies, worksites, stage and AV equipment, port areas, dams, drainage, water treatment, cold, and industrial environments. Compliant with BS EN 50525-2-21 and BS EN 60811-2-1 standards, featuring ethylene propylene rubber insulation and PCP sheath. Available in multiple core configurations, nominal cross-sectional areas from 1mm² to 6mm², with voltage ratings of 450/750V and operating temperatures from -30°C to +85°C, ensuring durability in severe conditions.
MULTICOMP PRO PP002149 Flexible Rubber Power Cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: Fixed: -30°C to +60°C, Flexed: -15°C to +60°C, Operating: up to +85°C
- Core Identification: 2 core: Blue, Brown; 3 core: Green/Yellow, Blue, Brown; 4 core: Green/Yellow, Brown, Black, Grey; 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Construction: Copper conductor BS EN 60228, Insulation: Ethylene Propylene Rubber BS EN 50363, Sheath: PCP Type EM2 BS EN 50363
- Minimum Bending Radius: Fixed: 4x diameter, Flexed: 6x diameter
- Conductor Diameter: 1mm²: 0.21mm, 1.5mm²: 0.26mm, 2.5mm²: 0.26mm, 4mm²: 0.31mm, 6mm²: 0.31mm
- Current Carrying Capacity: For 1mm²: 10A, 1.5mm²: 16A, 2.5mm²: 20A, 4mm²: 26A, 6mm²: 34A
- Maximum Resistance at 20°C: 1mm²: 19.5 Ω/km, 1.5mm²: 13.3 Ω/km, 2.5mm²: 7.98 Ω/km, 4mm²: 4.95 Ω/km, 6mm²: 3.3 Ω/km
- Voltage Drop: 1mm²: 46 mV/A/m (single-phase), 40 mV/A/m (three-phase); 1.5mm²: 32 mV/A/m (single-phase), 27 mV/A/m (three-phase); 2.5mm²: 19 mV/A/m (single-phase), 16 mV/A/m (three-phase)
- Operating Temperature: Up to +85°C for flexible use, fixed installations up to +60°C, suitable for severe industrial environments
Buy the Multicomp Series Rubber Cable: HO7RN-F 450/750V Black Flexible Power Cable
Order the high-quality Multicomp rubber power cable PP002149 easily online to ensure reliable power transmission in demanding environments. Perfect for industrial applications, outdoor setups, and severe conditions. Designed with ethylene propylene rubber insulation and a resilient PCP sheath, this cable offers excellent flexibility, weather resistance, and durability. With multiple core options and a voltage rating of 450/750V, it is ideal for handling equipment, water treatment, and harsh industrial environments. Purchase now for fast delivery and dependable power solutions.
Buy Multicomp rubber cable PP002149 now and experience unmatched durability, high flexibility, weather resistance, and dependable performance in tough conditions.
