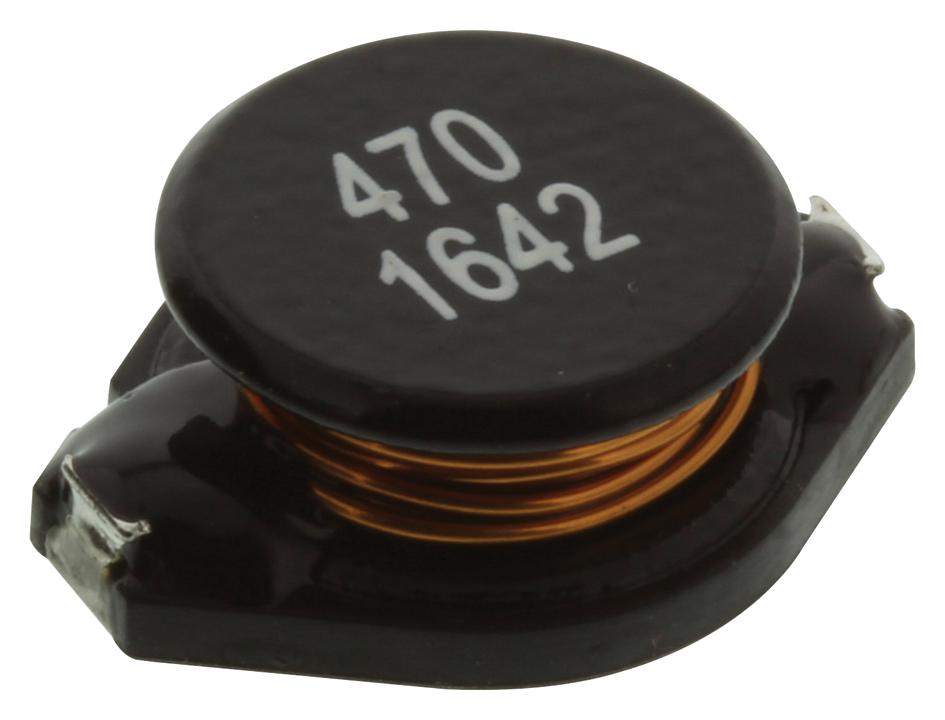

MULTICOMP PRO MCBF7330470MU Power Inductor
The Multicomp Pro 47 microhenry inductor is an SMD component suitable for high-frequency applications, with a 120% inductance tolerance and a maximum DC resistance of 0.066 ohms. Designed for operation from -55°C to +130°C, it supports up to 3A DC current and features a self-resonant frequency of 8MHz, making it ideal for power supplies and RF circuits. Its compact size, approximately 15.24mm in length and 18.54mm in width, ensures easy PCB integration in various electronic designs, backed by RoHS compliance for safety and environmental standards.
MULTICOMP PRO MCBF7330470MU Power Inductor Specifications:
- Inductance: 47uH, Tolerance: 120%
- DC Resistance Max: 0.066 ohms
- DC Current Rating: 3A
- Self Resonant Frequency: 8MHz
- Case Style: SMD
- Number of Pins: 22
- Lead Spacing: 12.92mm
- External Depth: 7.11mm
- External Length / Height: 15.24mm
- External Width: 18.54mm
- Operating Temperature: -55°C to +130°C
- Material: Core T2, Wire @0.45mm, Lead-Free Solder, Glue TH320, Base DAP HD127-3
- Series: MCB
Buy the Buy Multicomp Inductor Part Number MCBF7330-470MU Online
Upgrade your electronic projects with the high-performance Multicomp Pro power inductor, featuring a 47 microhenry inductance, 3A current capacity, and a compact SMD design. Ideal for RF circuits, power supplies, and high-frequency applications, this RoHS compliant component offers excellent temperature stability from -55°C to +130°C. Its precise dimensions allow easy PCB placement, ensuring reliable performance and long-term durability. Perfect for professional engineers seeking quality electronic components for demanding applications, available for quick online purchase at competitive prices.
Buy Multicomp inductor MCBF7330-470MU now and experience unmatched reliability and performance in your RF and power supply designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCBF7330470MU?
You can click on the BUY or RFQ button to purchase MCBF7330470MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCBF7330470MU?
You can download the MCBF7330470MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCBF7330470MU?
MULTICOMP PRO
