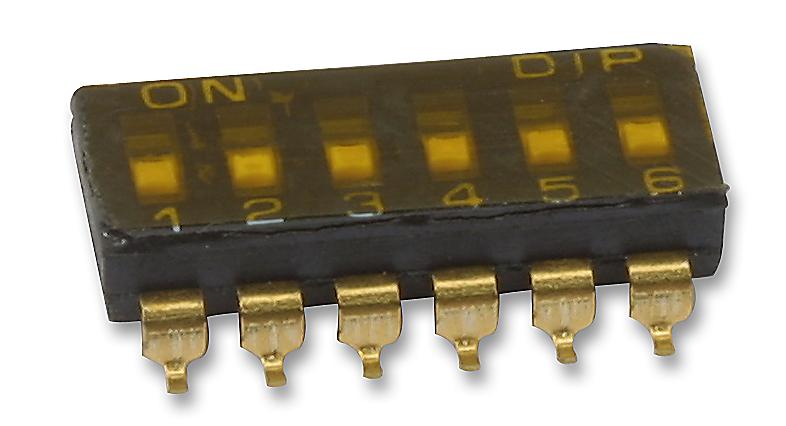

MULTICOMP PRO MCDMR06TVTR DIP Switch
This high-reliability DIP switch from multicomp®pro features a 6-pole, SPST configuration with top tape sealing for ease of assembly. It is designed for space-saving applications with a low profile, recessed actuator, and flush slide operation. The switch provides a contact rating of 25mA at 24VDC, a contact resistance of 50mΩ max, and an insulation resistance of 100MΩ min at 500V DC. It boasts a dielectric strength of 500V AC for 1 minute and a lifespan of 2,000 cycles, suitable for industrial control and electronic device applications operating between 1-20°C to +85°C.
MULTICOMP PRO MCDMR06TVTR DIP Switch Specifications:
- Contact Arrangement: SPST
- Poles: 6
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500V DC
- Dielectric Strength: 500V AC/1 minute
- Operating Force: max. 1,000gf
- Travel: > 1mm
- Operating Life: 2,000 cycles
- Operating Temperature: 1-20°C to +85°C
- Storage Temperature: 1-40°C to +85°C
- Dimensions: Length 26.34mm, Pitch 22.86mm, for 6-pole configuration
Buy the multicomp Series DIP Switch: 6-Pole SPST Top Tape Sealed - MCDMR06TVTR
Enhance your electronic assemblies with this 6-pole SPST DIP switch from multicomp®pro. Featuring a space-saving low profile, top tape sealing for easy automation, and robust electrical specifications, it ensures high reliability and durability. Designed for industrial control, consumer electronics, and automation projects, this switch offers a contact rating of 25mA at 24VDC, a contact resistance of 50mΩ max, and an insulation resistance of 100MΩ. Its long cycle life and operating temperature range make it a perfect choice for demanding environments.
Buy multicomp DIP Switch model MCDMR06TVTR now and experience reliable performance in space-constrained control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDMR06TVTR?
You can click on the BUY or RFQ button to purchase MCDMR06TVTR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDMR06TVTR?
You can download the MCDMR06TVTR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDMR06TVTR?
MULTICOMP PRO
