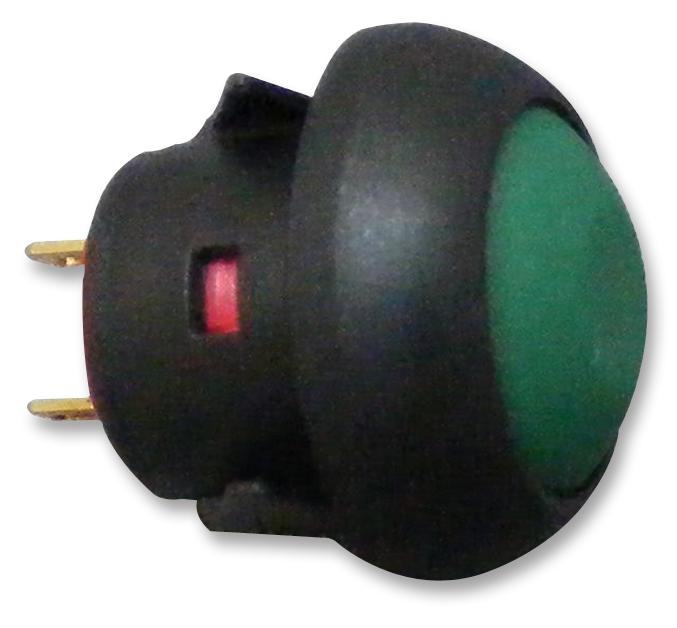

MULTICOMP PRO MCPAS6B1M1CE6 Push Button Switch
The MCPAS6B1M1CE6 is a durable sealed pushbutton switch designed for industrial applications. It features gold-over-silver contacts, a green cap, anti-rotation bushing, and solder lug terminals for reliable performance. Rated for 400mA at 32V AC, 100mA at 50V DC, and 125mA at 125V AC, it offers excellent dielectric strength of 1kVAC RMS, with a mechanical lifespan of one million cycles. The switch supports panel thicknesses from 0.8mm to 1.8mm, with total travel of 1.5mm, and operates under controlled temperature profiles for soldering, ensuring long-lasting durability.
MULTICOMP PRO MCPAS6B1M1CE6 Push Button Switch Specifications:
- Max. Current/Voltage Rating with Resistive Load: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC
- Max. Initial Contact Resistance: 50mΩ
- Min. Insulation Resistance: 1GO at 500V DC
- Dielectric Strength: 1,000V AC rms
- Electrical Life at Full Load: 1,000,000 cycles
- Panel Thickness: 0.8mm to 1.8mm
- Total Travel: 1.5mm (0.059")
- Operating Force: 2N to 5N
- Mechanical Life: 1,000,000 cycles
- Max. Torque: 1.5 Nm
- Soldering Temperature: 300°C for 3 seconds
- Switch Function: SPST, Normally Open
- Mounting: Snap-in, Threaded Bushing
- Dimensions: Diameter 12mm (0.472"), Flat, Suitable for Panel Thickness 0.8mm to 1.8mm
- Temperature Profile: Pre-heat 150°C min 120s, Soak 180-200°C min 150s, Peak 200-235°C min 30s, Max 260°C 10s
Buy the Buy multicomp Push Button Switches Part Number MCPAS6B1M1CE6 Online
Purchase the multicomp Push Button Switch MCPAS6B1M1CE6 online today for your industrial applications. This sealed SPST switch features gold-over-silver contacts, anti-rotation bushing, and solder lug terminals, ensuring reliability and durability. Rated for 400mA at 32V AC, with a dielectric strength of 1kVAC rms, it supports panel thickness from 0.8mm to 1.8mm, offering a total travel of 1.5mm. Ideal for rugged industrial use, this switch provides long mechanical life, making it perfect for automation systems and control panels. Order now for fast delivery!
Get multicomp Push Button Switches MCPAS6B1M1CE6 today—engineered for reliable performance and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPAS6B1M1CE6?
You can click on the BUY or RFQ button to purchase MCPAS6B1M1CE6 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6B1M1CE6?
You can download the MCPAS6B1M1CE6 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPAS6B1M1CE6?
MULTICOMP PRO
