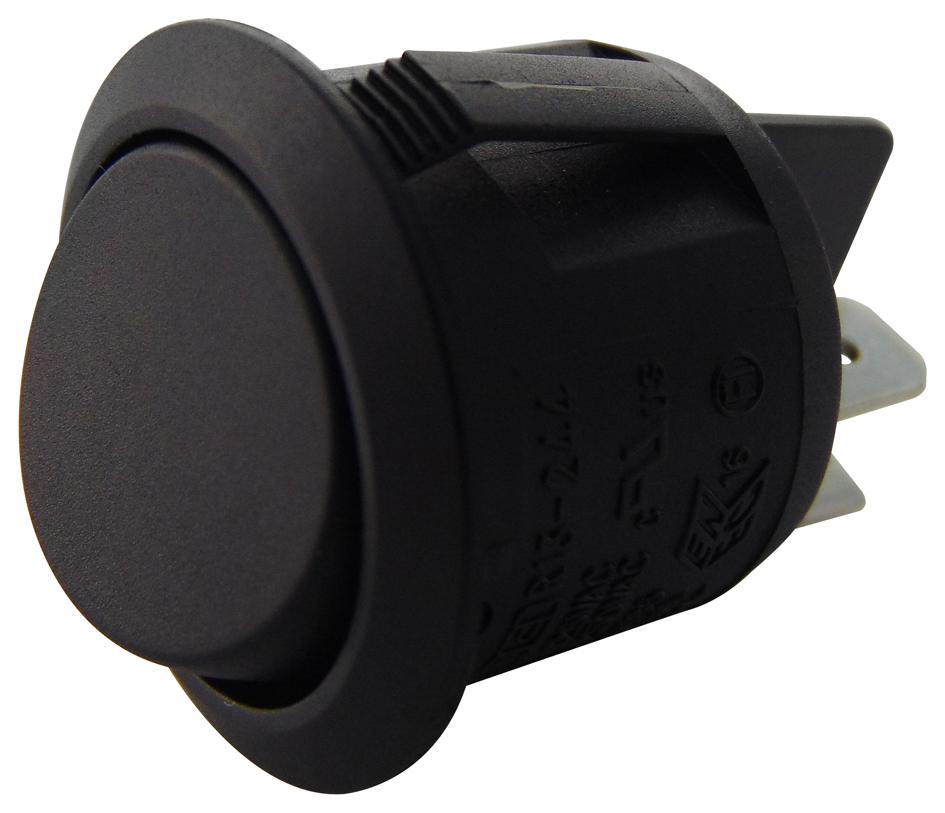

MULTICOMP-PRO R13244A02BB0A Rocker Switch
The Multicomp Pro R13 series rocker switches are mechanically operated, available in illuminated and non-illuminated versions, with SPST and DPST configurations. Designed for panel mounting, these switches feature actuator caps in white, black, red, and green, making them versatile for industrial, power management, automation, and process control applications. They have high quality ratings, rated for current and voltage according to specifications, and are suitable for both AC and DC circuits. These switches ensure reliable operation with a long lifespan, supporting various electrical loads and environmental conditions in demanding industrial environments.
MULTICOMP-PRO R13244A02BB0A Rocker Switch Specifications:
- Rated voltage and current based on switch type, designed for use up to 60A at 250V or 30A/2HP at 600V
- Contact resistance: <100mΩ (5V, 1A DC)
- Dielectric strength: >1,000V with >2,500V (10mA between contacts)
- Insulation resistance: >100MQ (500V DC between open contacts)
- Inrush current: 50A / 3ms (capacitive load)
- Electrical life endurance: >6,000 operations, with volt drop <100mV, >10,000 operations
- Temperature rise at terminals: <30°C for 6,000 operations, <45°C for 10,000 operations
- Actuating force: varies by switch type
- Operating life endurance: >100,000 operations
- Terminal strength: >2.5 kg for solder, >6.8 kg for plug-in/screw
- Solderability: max 350°C / 3s
- Ambient temperature: -20°C to +65°C
- Humidity: Max 85%
- Salt spray resistance: No rust or mechanical damage after 24 hours
- Shock resistance: 100g / 10ms (3 times)
- Vibration resistance: 10-55Hz / 1.5mm / 2 hours
