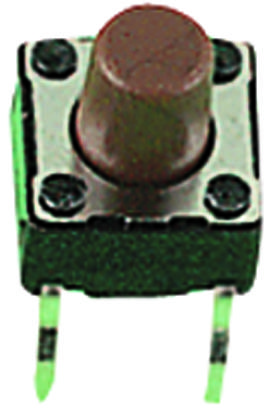

MULTICOMP PRO MCDTS61N Tactile Switch
The Multicomp Pro MCDTS6 series ultraminiature tactile switches are designed for high-density electronics and industrial automation. With a 6mm x 6mm size, these SPST-NO switches feature a durable phosphor bronze dome, an insertion molded contact to prevent flux buildup, and a switching capacity of 50mA at 12VDC. They offer a long operating life of up to 200,000 cycles, a travel of 0.25mm, and operate within temperature ranges from -25°C to +70°C. Available in black, brown, and red caps with operating forces from 100gf to 260gf, suitable for precision industrial control systems.
MULTICOMP PRO MCDTS61N Tactile Switch Specifications:
- Size: 6mm x 6mm
- Travel: 0.25mm
- Contact Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min. 500VDC
- Dielectric Strength: 250VAC/minute
- Operating Life: 200,000 cycles at 100gf, 260gf, 160gf forces
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Material: Phosphor bronze dome
- Color Options: Black, Brown, Red
- Dimensions: 6mm x 6mm, height varies (4.3mm to 5mm)
- Tolerance: +0.2mm
Buy the Buy MULTICOMP-PRO MCDTS61N Tactile Switch Part Number 6x6mm
Experience the reliable performance of the Multicomp Pro Tactile Switch series, designed for high-density applications in industrial automation, power management, and control systems. These 6mm x 6mm SPST-NO switches feature a durable phosphor bronze dome, insertion molded contacts to prevent flux buildup, and support long operating cycles up to 200,000. They come in various colors including black, brown, and red, with a travel of 0.25mm and a contact capacity of 50mA at 12VDC. Perfect for precision control and automation, these switches are highly dependable and easy to integrate into complex electronic assemblies.
Get Multicomp Pro MCDTS6 today—built for precision and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTS61N?
You can click on the BUY or RFQ button to purchase MCDTS61N from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTS61N?
You can download the MCDTS61N datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTS61N?
MULTICOMP PRO
