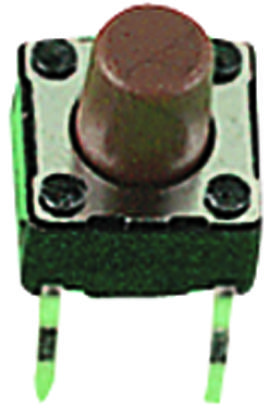

MULTICOMP PRO MCDTS63R tactile switch
The Multicomp Pro MCDTS6 series are high-reliability tactile switches suitable for high-density mounting in industrial, automation, and power management applications. These compact, 6mm x 6mm switches feature a non-luminous, through-hole design with a crisp tactile click, rated for 50mA at 12V DC. Available in black, brown, and red caps with operating forces of 100g, 160g, and 260g respectively, they have an SPST-NO contact configuration, a travel of 0.25mm, and a long life of up to 200,000 cycles. They are engineered to withstand temperatures from -25°C to +70°C and storage between -30°C to +80°C, with high insulation resistance and dielectric strength for dependable performance.
MULTICOMP PRO MCDTS63R tactile switch Specifications:
- Contact Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min. 500VDC
- Dielectric Strength: 250VAC/minute
- Travel: 0.25mm
- Dome Material: Phosphor Bronze
- Operating Life: 200,000 cycles at 100g force
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Dimensions: 6mm x 6mm, Height: 4.3mm to 4.3mm or 5mm depending on model
- Tolerance: +0.2mm Max.
- Contact Configuration: SPST-NO
Buy the Multicomp Series MCDTS6 Tactile Switch: MCDTS63R
Purchase the dependable Multicomp Series MCDTS6 tactile switches online today for your industrial, automation, or process control needs. With compact 6mm x 6mm dimensions, these non-luminous through-hole switches provide crisp tactile feedback, rated at 50mA and 12V DC, ensuring reliable performance in demanding environments. Designed with long operating life up to 200,000 cycles and high insulation resistance, they are suitable for high-density mounting applications. Available in black, brown, and red caps, order now to enhance your control systems efficiently.
Order your Multicomp Series MCDTS6 tactile switch today and ensure reliable, high-density switching for your industrial and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTS63R?
You can click on the BUY or RFQ button to purchase MCDTS63R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTS63R?
You can download the MCDTS63R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTS63R?
MULTICOMP PRO
