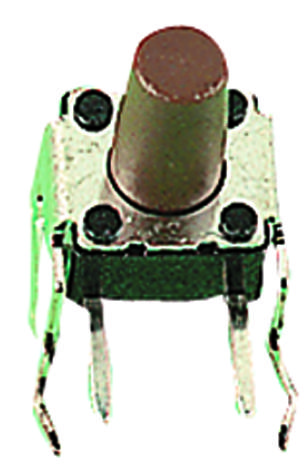

MULTICOMP-PRO MCDTSA62N Miniature Tactile Switch
The MCDTSA62N is a high-reliability, miniature tactile switch designed for precise click feel and long operating life. Constructed with stainless steel cover, nylon thermoplastic base, and phosphor bronze contact disc with silver cladding, it features a compact 6mm x 6mm size with various operating forces (100gf, 160gf, 260gf). Suitable for PCB mounting, it offers a stroke of 0.25 to 0.35mm, an operating temperature of -25°C to +70°C, and durable construction supporting 500,000 cycles. Ideal for high-density electronic assemblies requiring reliable tactile feedback.
MULTICOMP-PRO MCDTSA62N Miniature Tactile Switch Specifications:
- Materials: Cover stainless steel, base nylon thermoplastic, contact disc phosphor bronze with silver cladding, terminal brass with silver cladding, cap ABS thermoplastic
- Operation Force: 100gf (Black), 160gf (Brown), 260gf (Red), 350gf (Salone)
- Stroke: 0.25 to 0.35mm
- Operating Temperature: -25°C to +70°C
- Soldering: Wave solder max 260°C for 5 seconds, hand solder at 320°C for 2 seconds
- Electrical Life: 500,000 cycles (160gf, 100gf), 50,000 cycles (260gf)
- Current Rating: 50mA, 12V DC
- Contact Resistance: >100mΩ
- Insulation Resistance: 10MΩ at 500V DC
- Dielectric Strength: 250V AC for 1 minute
- PCB Hole Diameter: 21 ±0.05mm
- Vibration and Shock Resistance: MIL-STD-202F
- Dimensions: 6mm x 6mm, height varies with model
Buy the Multicomp Pro MCDTSA62N – Reliable Tactile Switch for Industrial Applications
Purchase the Multicomp Pro MCDTSA62N miniature tactile switch online today and ensure reliable tactile control in your electronic projects. Designed for high-density mounting, it offers excellent click feel, long cycle life, and robust construction. Perfect for industrial and consumer electronics, this high-quality switch supports PCB mounting with a 6mm x 6mm footprint. Its durable materials and precise stroke make it ideal for demanding environments. Get yours now and experience reliable performance and easy installation for your electronic designs.
Order your Multicomp Pro MCDTSA62N tactile switch today and enhance your electronic assemblies with dependable, long-lasting tactile feedback.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCDTSA62N?
You can click on the BUY or RFQ button to purchase MCDTSA62N from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTSA62N?
You can download the MCDTSA62N datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCDTSA62N?
MULTICOMP-PRO
