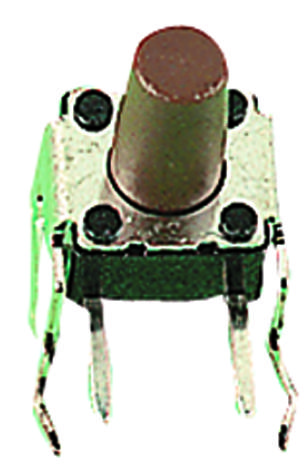

MULTICOMP PRO MCDTSA62R Tactile Switch
This tactile switch features a 3.85mm stroke and a maximum operating force of 260gf, designed for reliable performance in electronic circuits. Made with steel, tin-plated contact discs, and a nylon thermoplastic cover and base, it supports 500,000 cycles at 260gf. It operates at temperatures from -25°C to +70°C and -30°C to +80°C during storage. The switch has a maximum contact resistance of 100MQ, rated at 50mA, 12V DC, with a dielectric strength of 250V AC/minute. Suitable for PCBs, it supports wave and hand soldering.
MULTICOMP PRO MCDTSA62R Tactile Switch Specifications:
- Stroke: 3.85mm
- Operating Force: 260gf
- Mechanical Life: 500,000 cycles
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Contact Resistance: 100MQ
- Dielectric Strength: 250V AC/Minute
- Materials: Steel, tin plated contact; Nylon thermoplastic cover and base; Phosphor bronze silver cladding contact
- Contact Arrangement: SPST
- Rated Current/Voltage: 50mA, 12V DC
- Soldering: Wave soldering recommended at 260°C for 5 seconds; Hand soldering at 350°C for 5 seconds
- Dimensions: 4 x 3.85 mm stroke, with detailed size specifications
Buy the Buy Multicomp Tactile Switch Part Number MCDTSA62R Online
Purchase the Multicomp Tactile Switch MCDTSA62R online today and enjoy fast delivery, competitive pricing, and a high-quality component rated for 500,000 cycles. Ideal for electronic applications requiring a compact, reliable switch with a 3.85mm stroke and 260gf operating force. Designed with steel, tin-plated contacts, and durable nylon thermoplastic housing, it supports both wave and hand soldering methods. Perfect for PCB assembly in various electronic devices, this switch ensures long-lasting operation, excellent contact resistance, and robust dielectric strength for your projects.
Order your Multicomp Series MCDTSA62R tactile switch today and enhance your electronic projects with reliable, durable performance and easy PCB assembly.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTSA62R?
You can click on the BUY or RFQ button to purchase MCDTSA62R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTSA62R?
You can download the MCDTSA62R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTSA62R?
MULTICOMP PRO
