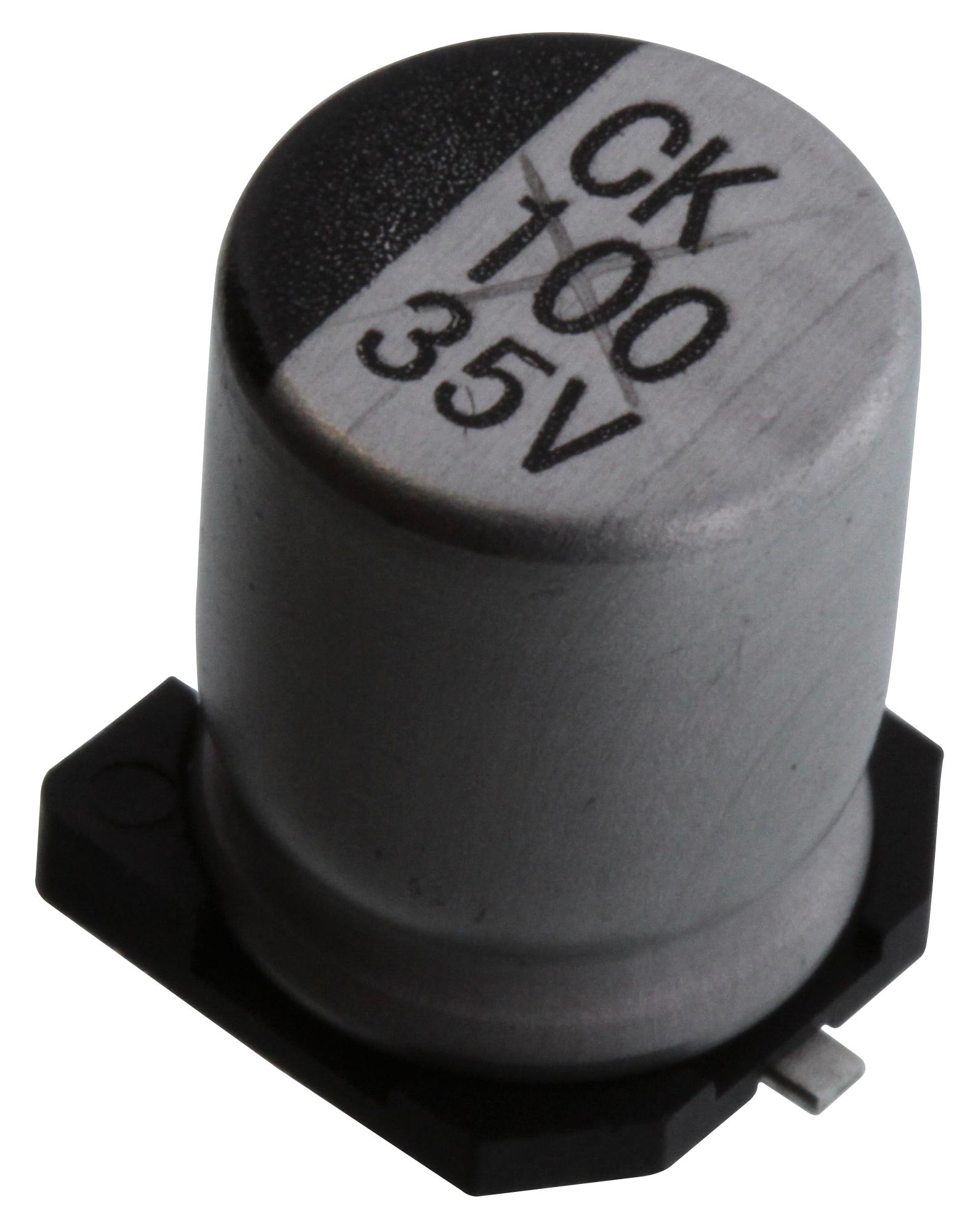

MULTICOMP PRO MCEEL35V107M8X105 Aluminium Capacitor
The aluminium electrolytic capacitor from the EL Series is designed for surface mounting on high-density circuit boards, offering reliable performance with guaranteed 2,000 hours at 105°C. It features a working voltage range of 6.3 to 50 V, capacitance options from 0.1 to 1000pF, and excellent low-temperature characteristics. Its construction ensures high stability, low leakage current, and resistance to soldering heat, making it ideal for demanding electronic applications requiring compact size and durability. Suitable for high-frequency, power supply filtering, and portable electronic devices.
MULTICOMP PRO MCEEL35V107M8X105 Aluminium Capacitor Specifications:
- Operating Temperature Range: 40°C to 105°C
- Working Voltage Range: 6.3 to 50 V
- Capacitance Range: 0.1 to 1000pF
- Capacitance Tolerance: +20% (120 Hz, 20°C)
- Maximum Leakage Current: <0.01 CV or 3 uA after 2 min
- Dissipation Factor at 120 Hz, WV: 6.3V - 0.35, 10V - 0.3, 16V - 0.25, 25V - 0.18, 35V - 0.16, 50V - 0.14
- Impedance Ratio at -25°C / +20°C: 4, 3, 2, 2, 2, 2
- Load Life: 2000 hours at 105°C, capacitance within +25%, tan d less than 250%, leakage current within specified limits
- Shelf Life: 1000 hours at 105°C with no change in leakage, capacitance, or tan d
- Soldering Heat Resistance: within 10% capacitance change after 30 sec on 250°C hot plate
- Dimensions: varies with model, typical length around 4-10 mm, diameter 4-8 mm
- Maximum Ripple Current: up to 330 mA (rms) at 120Hz, 105°C depending on model
Buy the Multicomp Series EL Aluminium Electrolytic Capacitor: MCEEL35V107M8X105
Purchase the Multicomp series EL aluminium electrolytic capacitor MCEEL35V107M8X105 online today and ensure your electronic projects benefit from high reliability, excellent performance at high temperatures, and compact design. Perfect for power supply filtering, high-frequency circuits, and portable devices, this capacitor provides stability and durability in demanding environments. Easy to install and with a guaranteed lifespan of 2000 hours at 105°C, it is ideal for engineers and technicians seeking quality components with consistent performance and optimal size for dense circuit layouts.
Get Multicomp series EL aluminium electrolytic capacitor MCEEL35V107M8X105 today—built for high temperature reliability and long-lasting performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCEEL35V107M8X105?
You can click on the BUY or RFQ button to purchase MCEEL35V107M8X105 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCEEL35V107M8X105?
You can download the MCEEL35V107M8X105 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCEEL35V107M8X105?
MULTICOMP PRO
