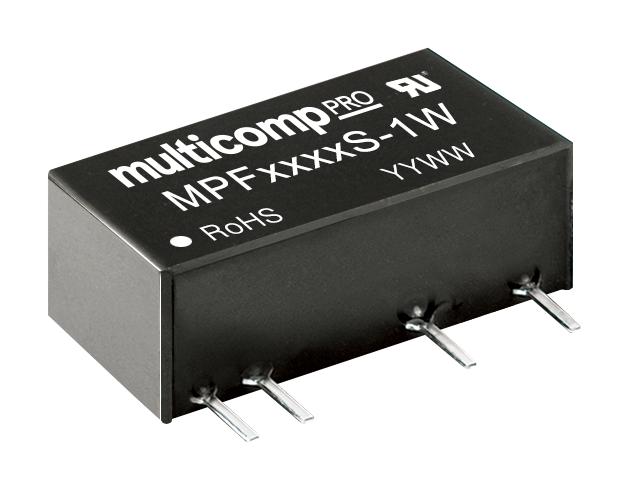

MULTICOMP-PRO MPF1215S1W Isolated DC-DC Converter
The MPF1215S-1W is a 1W isolated DC-DC converter designed for distributed power supply systems. It offers single output at 15V, high efficiency up to 81%, and includes features like continuous short-circuit protection and low no-load input current of 8mA. Built with industry-standard pin-out and RoHS compliance, it operates across temperatures from -40°C to +105°C. Suitable for digital, analog, relay-driven, and data switching circuits, this compact module ensures reliable performance in demanding environments.
MULTICOMP-PRO MPF1215S1W Isolated DC-DC Converter Specifications:
- Input Voltage Range: 43.3V to 152VDC
- Output Voltage: 15V
- Output Current: 67mA (full load)
- Efficiency: Up to 81%
- Isolation Voltage: 3kVDC
- Operating Temperature: -40°C to +105°C
- No-load Input Current: 8mA
- Ripple and Noise: 30-75mVp-p
- Dimensions: 19.65 x 6 x 10.16 mm
- Case Material: Flame-retardant black plastic (UL94 V-0)
Buy the MultiComp Series 1W Isolated DC-DC Converter: MPF1215S1W
Purchase the MultiComp Series 1W Isolated DC-DC Converter MPF1215S1W online now to benefit from its high efficiency, robust isolation, and wide temperature range. Perfect for distributed power systems, digital, analog, relay, and data switching applications, this compact module guarantees dependable performance. With features like short-circuit protection, low no-load current, and RoHS compliance, it’s ideal for demanding environments where space and reliability matter. Elevate your power management solutions by ordering today and experience seamless integration and top-tier quality.
Order your MultiComp Series 1W Isolated DC-DC Converter MPF1215S1W today and ensure reliable, efficient power conversion for your digital or analog circuits.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPF1215S1W?
You can click on the BUY or RFQ button to purchase MPF1215S1W from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPF1215S1W?
You can download the MPF1215S1W datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPF1215S1W?
MULTICOMP-PRO
