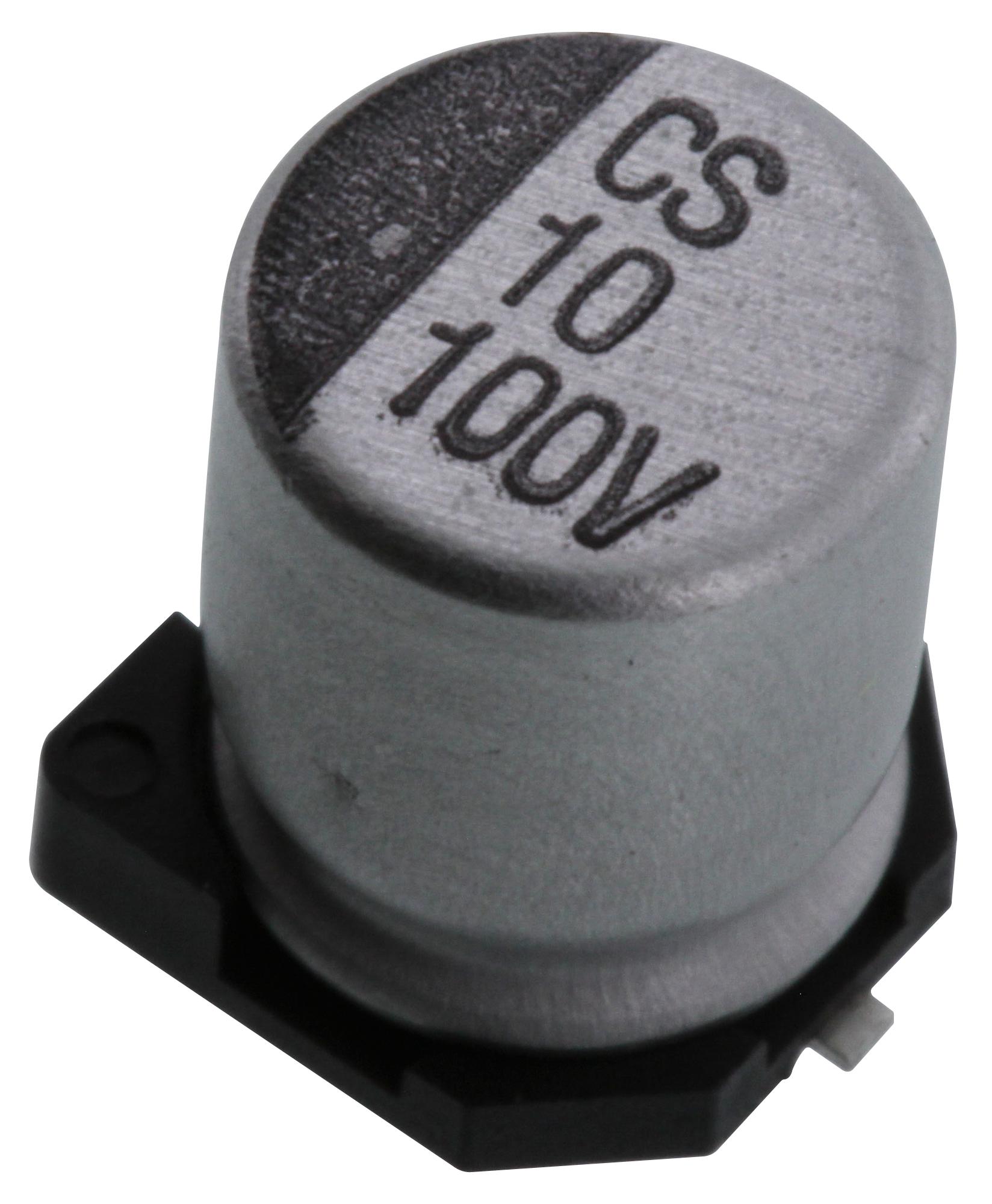

MULTICOMP PRO MCESL100V106M63X77 High-Temp Aluminium Capacitor
The product is a surface-mount aluminium electrolytic capacitor designed for high-density PCBs, offering reliable performance with a 2,000-hour lifespan at 85°C. It features a capacitance range from 0.1 to 1500uF, working voltages up to 100V, and a temperature rating from -40°C to +85°C. Perfect for electronic circuits requiring stable capacitance, low leakage current, and high ripple current capacity, this capacitor is supplied with carrier taping for automated assembly, ensuring efficient manufacturing processes.
MULTICOMP PRO MCESL100V106M63X77 High-Temp Aluminium Capacitor Specifications:
- Operating Temperature Range: -40°C to +85°C
- Working Voltage Range: 4 to 100V
- Capacitance Range: 0.1 to 1500uF
- Capacitance Tolerance: +20% (120 Hz, 20°C)
- Maximum Leakage Current: |< 0.01 CV or 3 (UA) whichever is greater (after 2 mins.)
- Dissipation factor at 120Hz, 23°C: 0.3 to 0.5 (max.) depending on voltage
- Impedance ratio at 120 Hz, 25°C: Z-25°C / Z+20°C: 7 to 15 depending on voltage
- Load Life: 2,000 hours at 85°C with capacitance change within +25% of initial value
- Shelf Life: 1,000 hours at 85°C without load, with minimal leakage current and capacitance change
- Soldering Heat Resistance: Capacitance change within 10% of initial value after heat exposure
- Guarantees lifespan of 2,000 hours at 85°C, providing long-lasting durability for electronic circuits
Buy the Multicomp Series High-Temperature Aluminium Capacitor: MCESL100V106M63X77
Purchase the Multicomp Series high-temperature aluminium capacitor MCESL100V106M63X77 online to ensure reliable performance in your electronic projects. Designed for surface mounting, it offers a capacitance of 10uF at 100V, operating reliably from -40°C to +85°C. This capacitor features low leakage current, excellent ripple handling, and a lifespan of 2,000 hours at 85°C. Supplied with carrier taping for automated assembly, it is ideal for high-density PCB designs requiring dependable electrical performance in demanding environments. Buy now for premium quality and fast delivery.
Get Multicomp Series high-capacity aluminium capacitor MCESL100V106M63X77 today—built for precision, reliability, and long-lasting durability.
