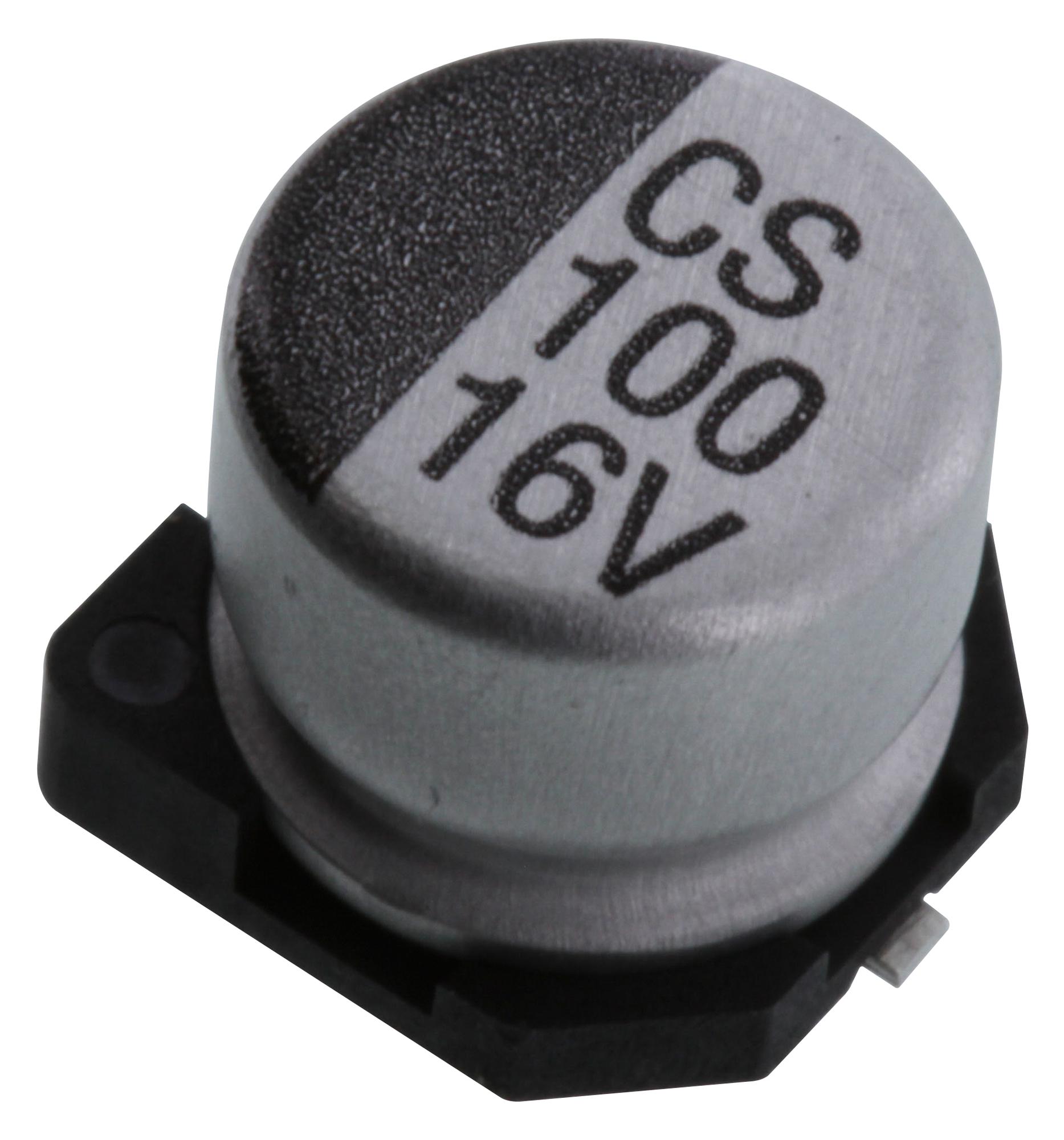

MULTICOMP PRO MCESL16V107M63X52 Electrolytic Capacitor
High-reliability surface-mount electrolytic capacitor designed for precise applications on high-density PCBs. It guarantees 2000 hours at 85°C, operating within -40°C to +85°C, and features a working voltage range of 4 to 100V with capacitance from 0.1 to 1500uF. These capacitors have a tolerance of 420% at 120Hz, 20°C, and low leakage current, making them suitable for power supply filtering, decoupling, and timing circuits in various electronic devices. They are supplied with carrier taping for automatic mounting, ensuring consistent, efficient placement in manufacturing processes.
MULTICOMP PRO MCESL16V107M63X52 Electrolytic Capacitor Specifications:
- Operating temperature range: -40°C to +85°C
- Working voltage range: 4 to 100V
- Capacitance range: 0.1 to 1500uF
- Capacitance tolerance: 420% at 120Hz, 20°C
- Maximum leakage current: 1<0.01 CV or 3 (WA), whichever is greater (after 2 min)
- Dissipation factor at 120Hz, 20°C: 0.12 to 0.40 depending on capacitance
- Tan δ (max): 0.12 to 0.35 depending on capacitance
- Shelf life: 1000 hours at 85°C, leakage current, capacitance change, and tan δ remain within specified limits
- Load life: 2000 hours at 85°C with capacitance change within +25%, leakage current less than 200% of initial value
- Soldering heat resistance: Place terminal side on 250°C hot plate for 30 seconds, then cool
- Dimensions: Diameter 6.3 mm, height varies depending on capacitance; e.g., 10.7 mm for 100uF, 16V
- Supplier packaging: Carrier taping for automatic placement
Buy the Electrolytic Capacitor 4V-100V – Reliable MCESL16V107M6.3X5.2 for Industrial Applications
Order the high-reliability electrolytic capacitor MCESL16V107M6.3X5.2 today and enhance your electronics with superior performance, durability, and ease of assembly. Designed for high-density PCBs, it guarantees 2000 hours of operation at 85°C, ensuring long-term stability. Ideal for power supply filtering, decoupling, and timing circuits, this surface-mount capacitor is supplied with carrier taping for automated manufacturing. Secure your supply chain and improve product quality by purchasing online now—experience seamless delivery and technical support tailored for your industrial applications.
Buy MCESL16V107M6.3X5.2 now and experience unmatched reliability and performance in electronic power and filtering circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCESL16V107M63X52?
You can click on the BUY or RFQ button to purchase MCESL16V107M63X52 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCESL16V107M63X52?
You can download the MCESL16V107M63X52 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCESL16V107M63X52?
MULTICOMP PRO
